Multi-Function Switch Module - Center Console
Multi-Function Switch Module - Center Console
Component Connector End Views

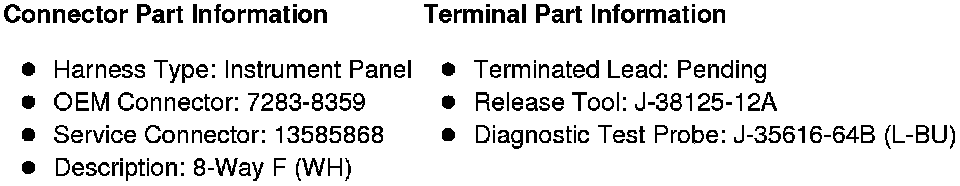

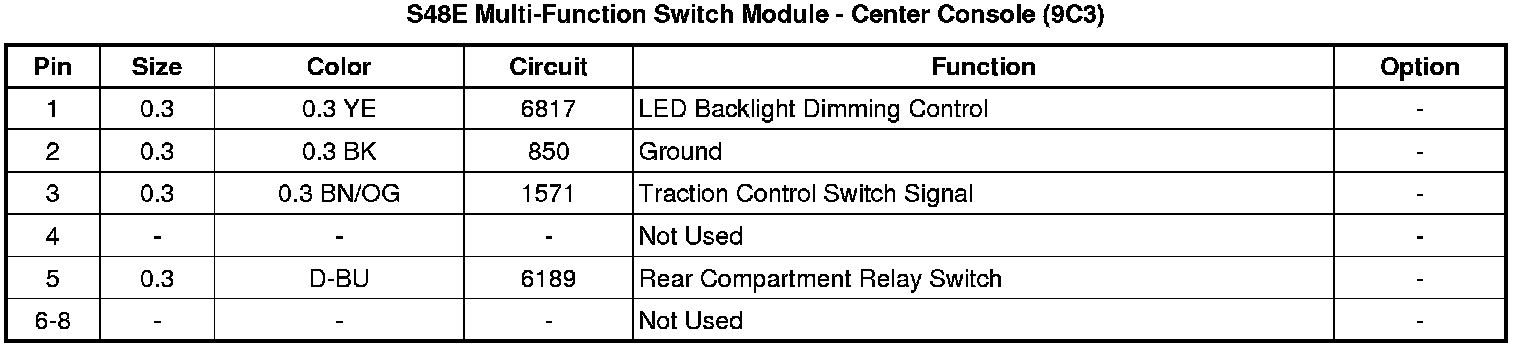

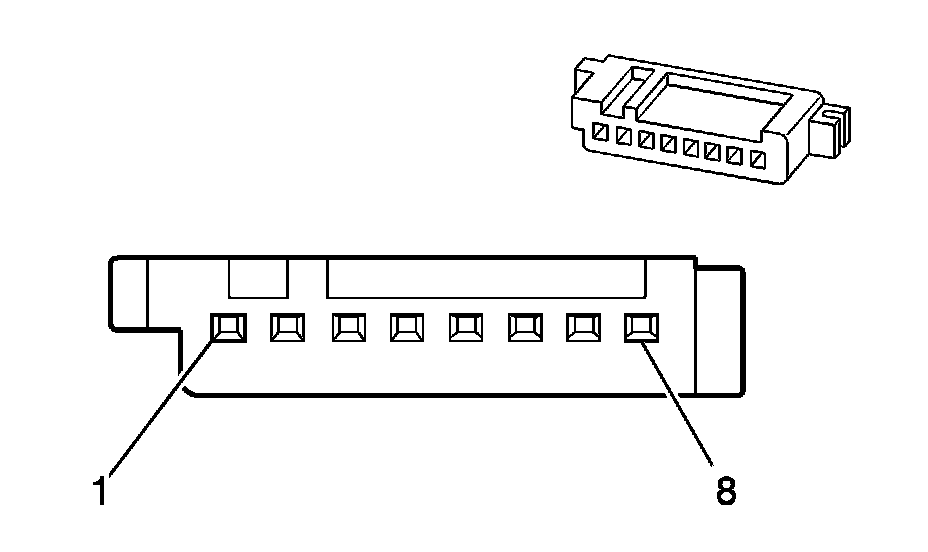

S48E Multi-Function Switch Module - Center Console
