Window Switch - Driver

Door Component Views

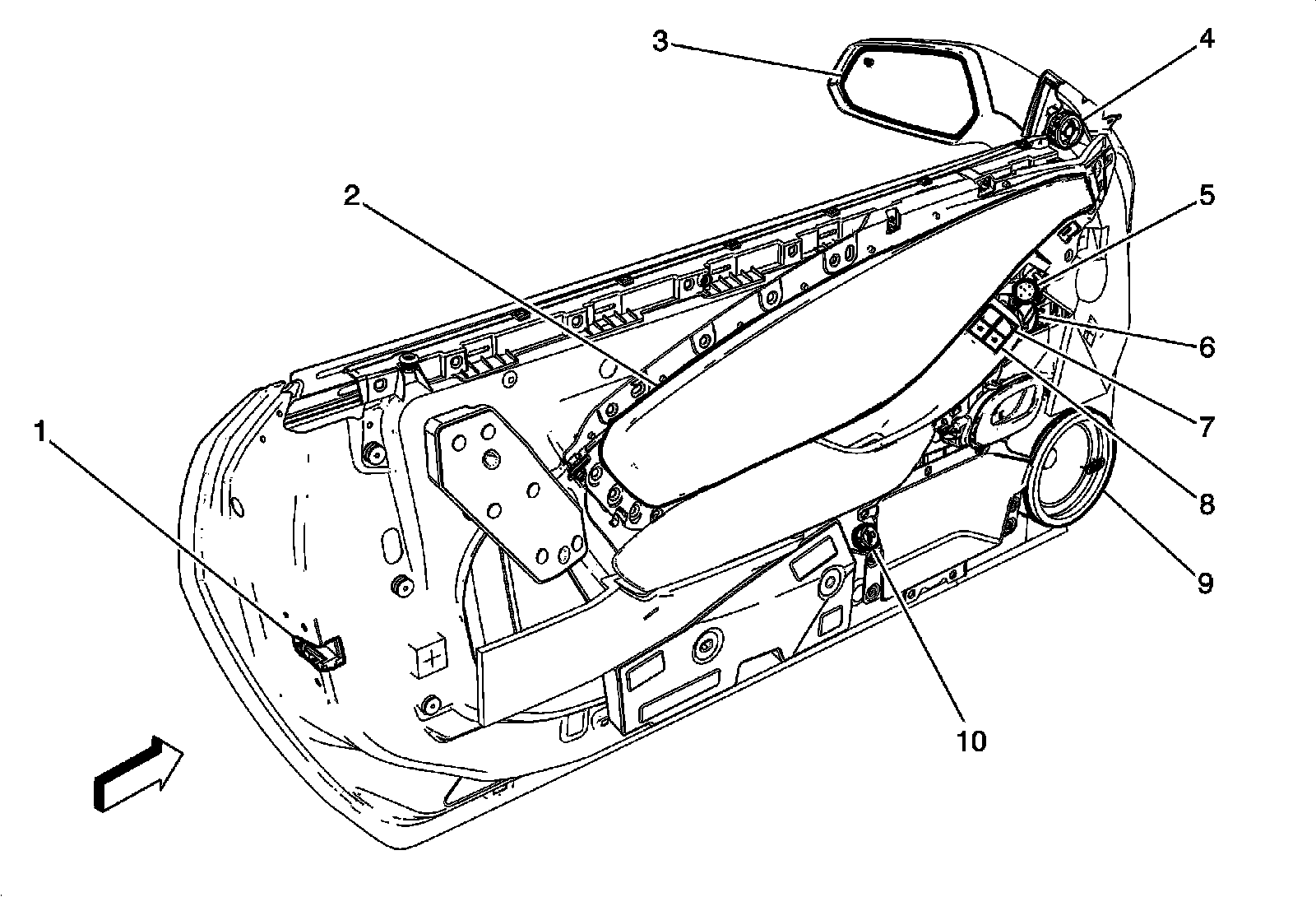

Driver Door Components





1 - A23D Door Latch Assembly - Driver

2 - E1D Accent Lamp - Driver Door (FCR)

3 - A9A Outside Rearview Mirror - Driver

4 - P19H Speaker - Left Front Tweeter

5 - S52 Outside Rearview Mirror - Switch

6 - M74D Window Motor - Driver

7 - S13D Door Lock Switch - Driver

8 - S79D Window Switch - Driver

9 - P19AG Speaker - Left Front Door

10 - S58 Rear Compartment Lid Unlatch Switch
