Home >> Chevrolet >> 2012 >> Camaro V8-6.2L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Battery Current Sensor >> Diagrams

Battery Current Sensor: Diagrams

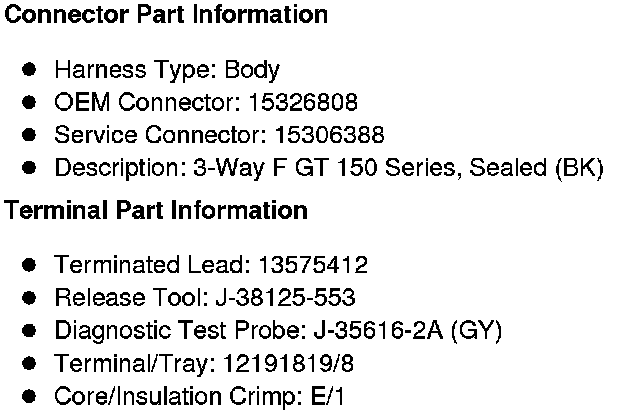

Component Connector End Views

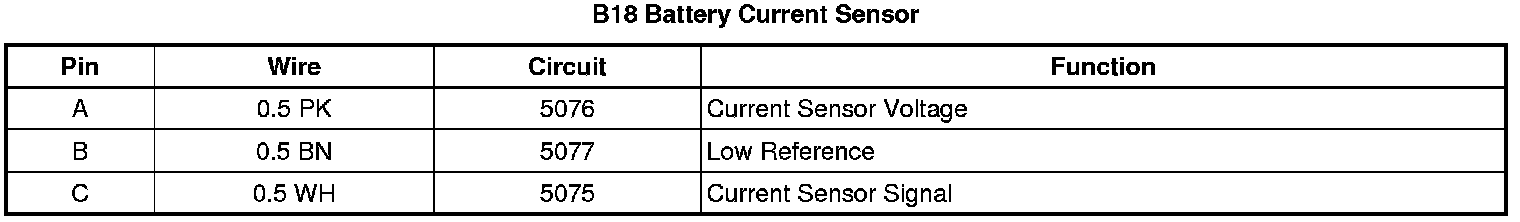

B18 Battery Current Sensor
