Front of Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

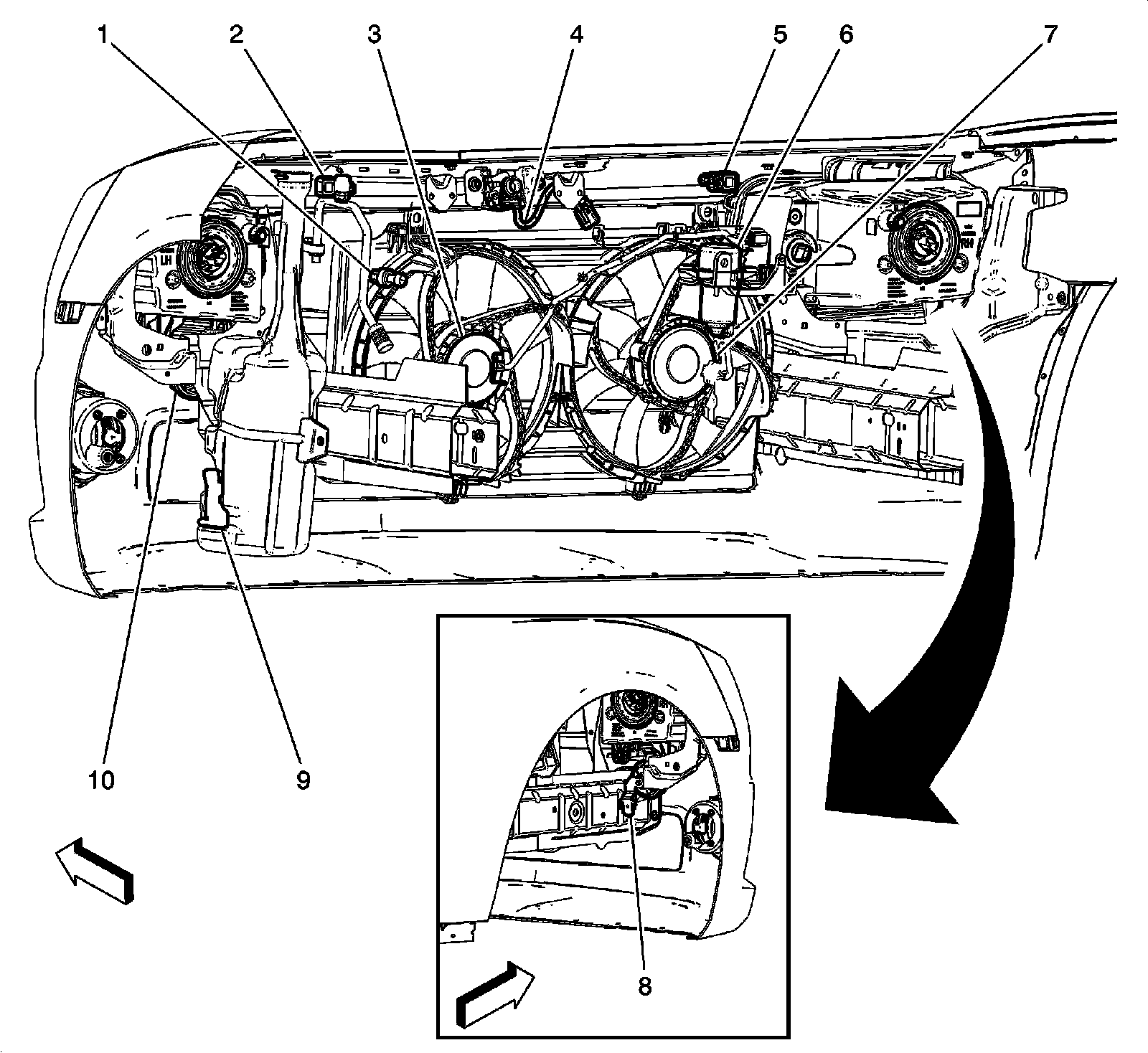

Front of Engine Compartment Components





1 - B1 A/C Refrigerant Pressure Sensor

2 - B59L Front Impact Sensor- Left

3 - G10L Cooling Fan Motor- Left

4 - B55 Hood Ajar Switch

5 - B59R Front Impact Sensor- Right

6 - G6 Brake Booster Pump- Auxiliary (LFX)

7 - G10R Cooling Fan Motor- Right

8 - P12A Horn- High Note

9 - G24 Windshield Washer Pump

10 - P12B Horn- Low Note
