Electric Power Steering Control Module X2

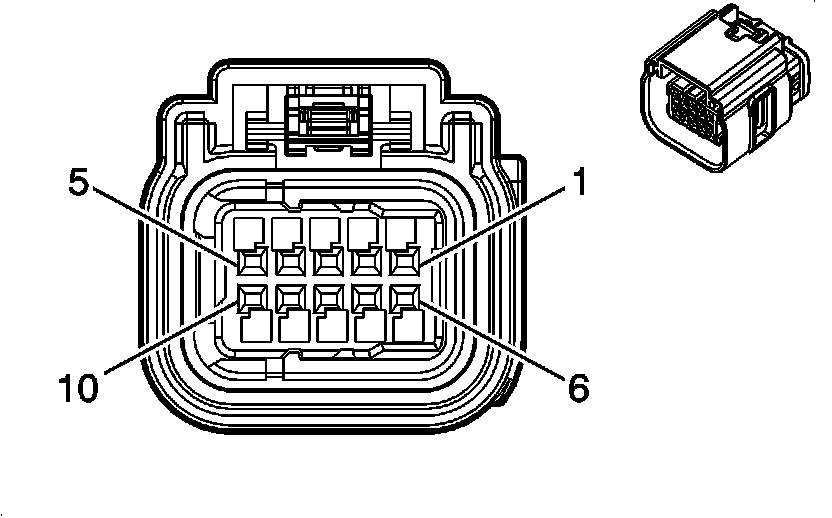

Component Connector End Views

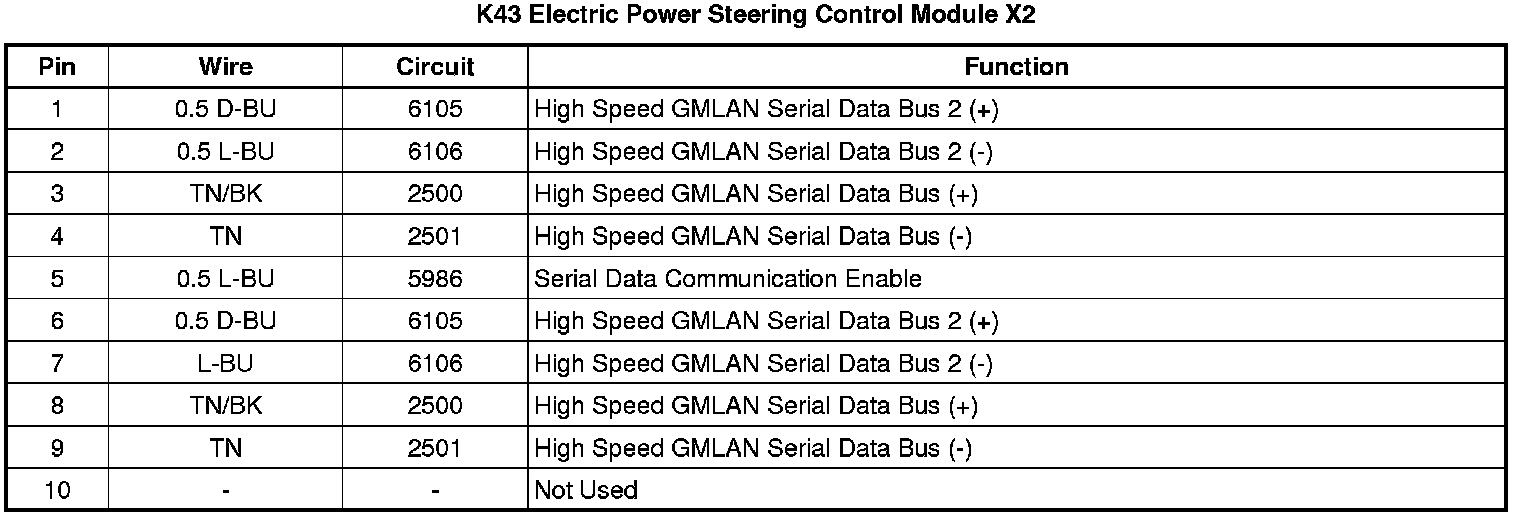

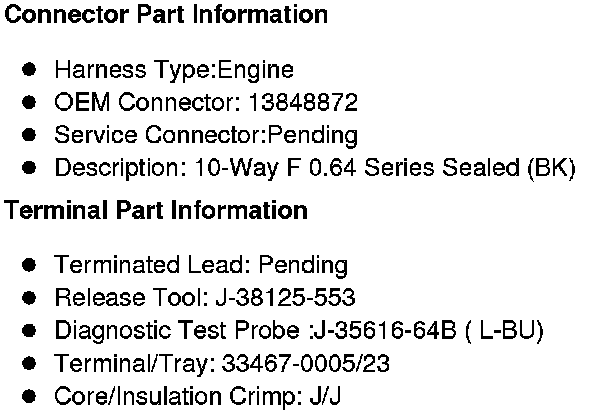

K43 Electric Power Steering Control Module X2
