Seat Heating Control Module X1 (KA1)

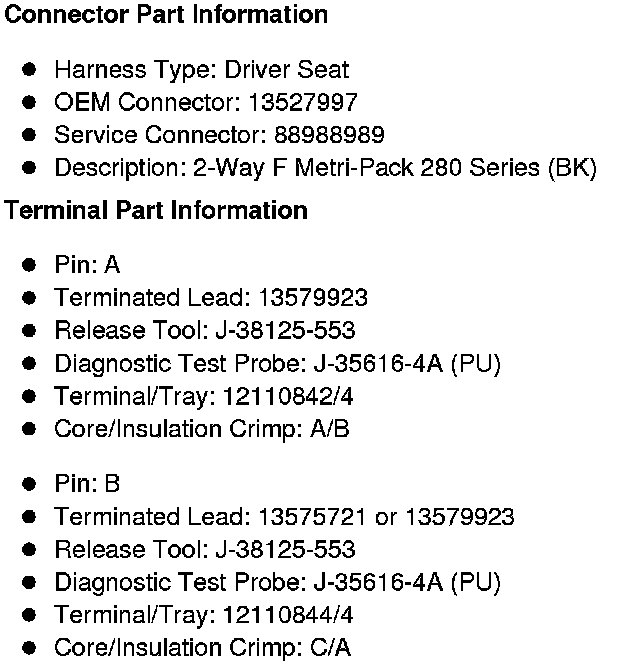

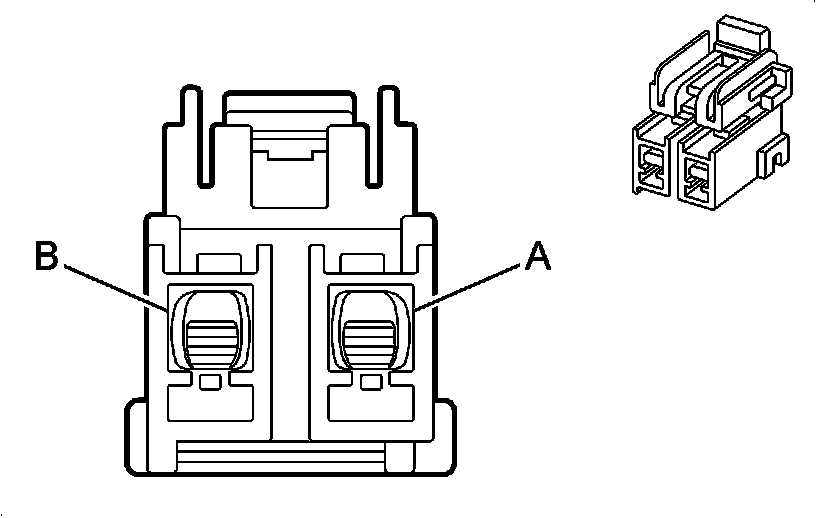

Component Connector End Views

K29 Seat Heating Control Module X1 (KA1)
