Home
>>
Chevrolet
>>
2012
>>
Camaro V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Level Sensor
Oil Level Sensor

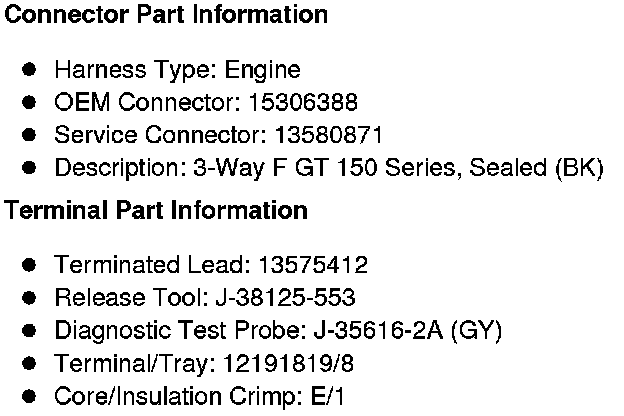

Component Connector End Views

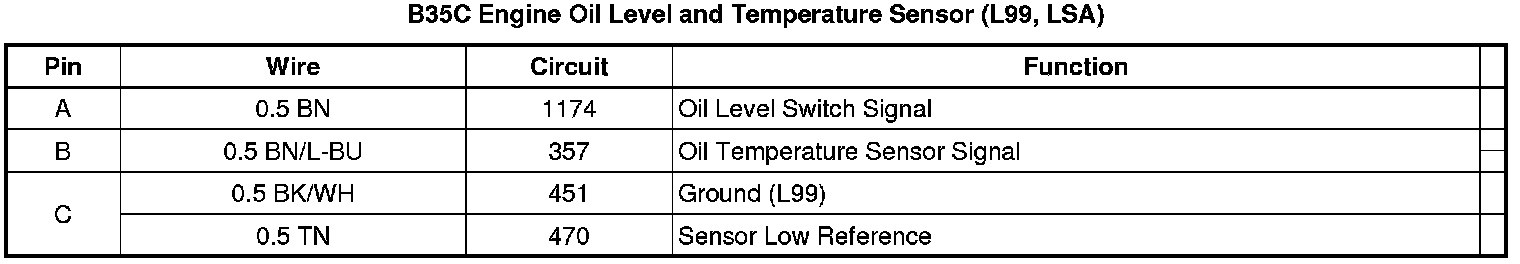

B35C Engine Oil Level and Temperature Sensor (L99, LSA)
