Entertainment System Control Module
>>
Multimedia Player Interface Module X2 (USR)
Multimedia Player Interface Module X2 (USR)
Component Connector End Views

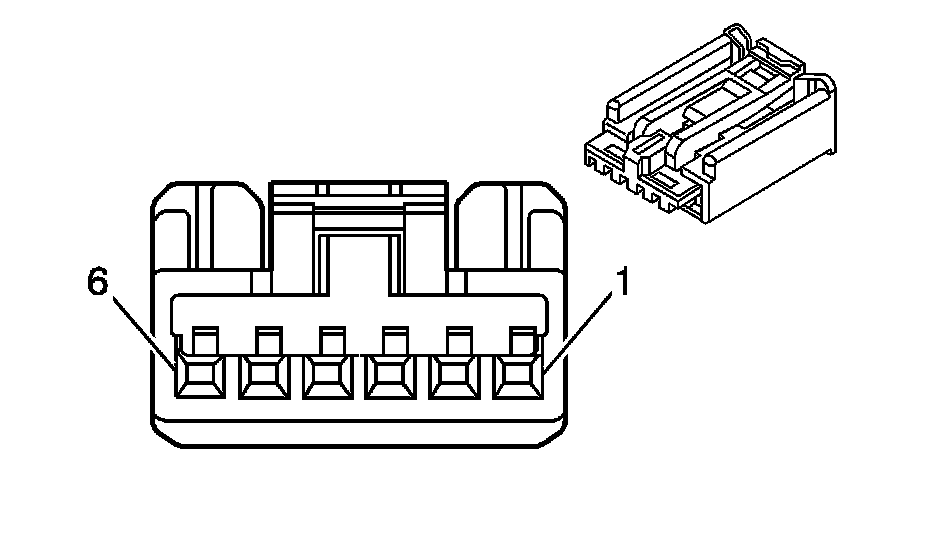

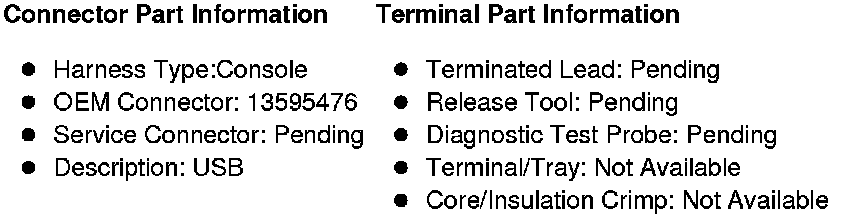

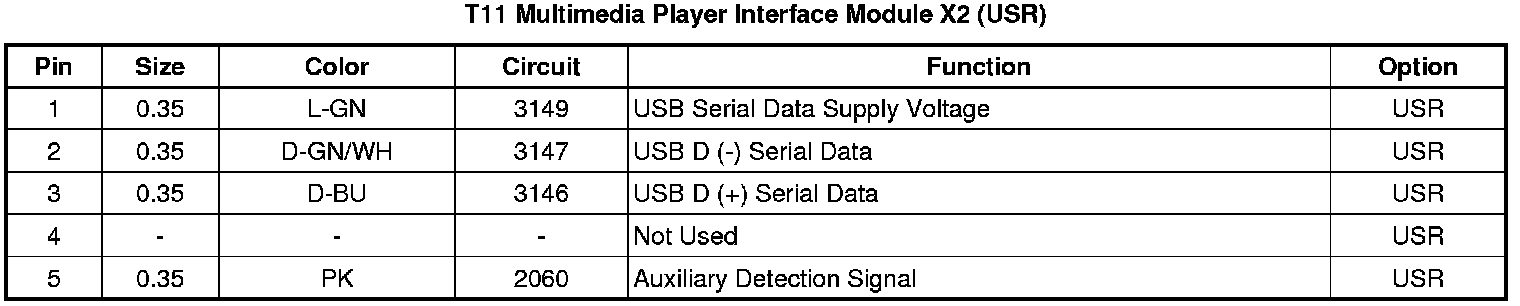

T11 Multimedia Player Interface Module X2 (USR)
