Engine Control Module X2




Component Connector End Views

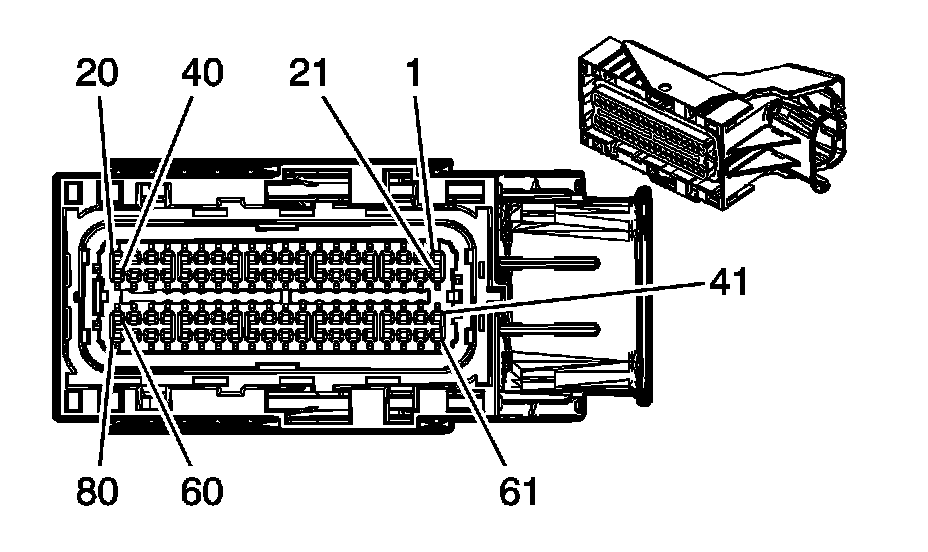

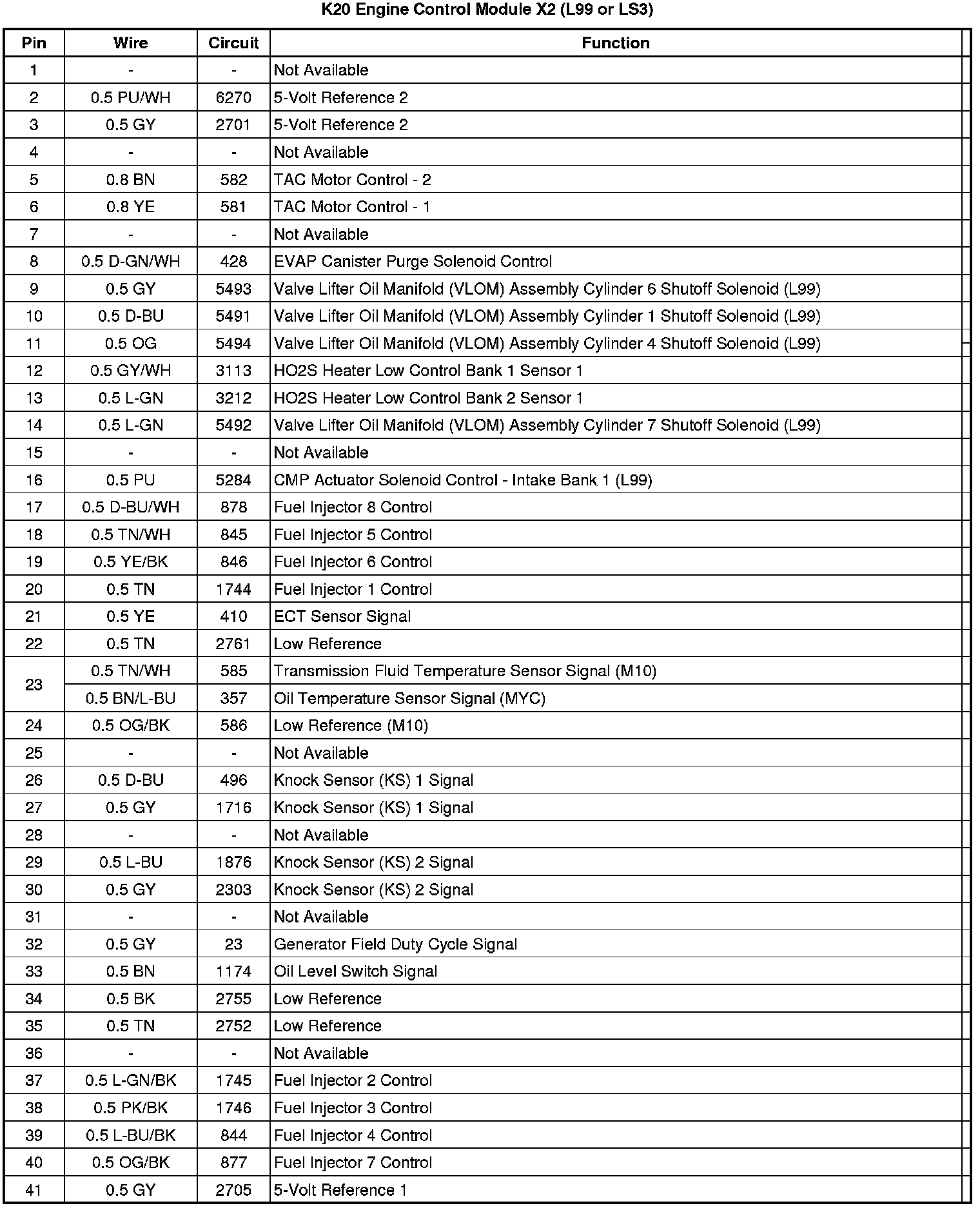

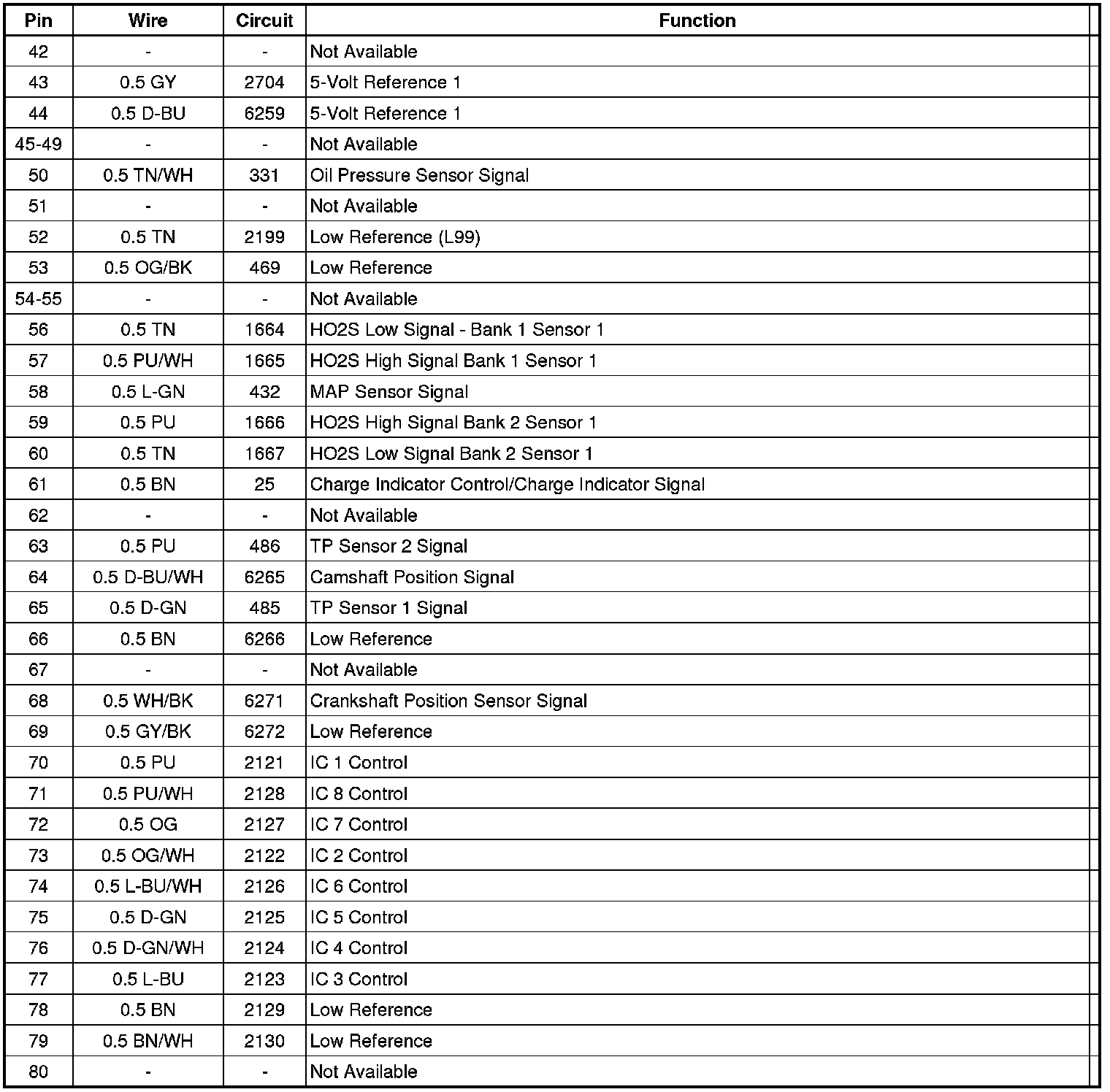

K20 Engine Control Module X2 (L99 or LS3)
