Home >> Chevrolet >> 2012 >> Camaro V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

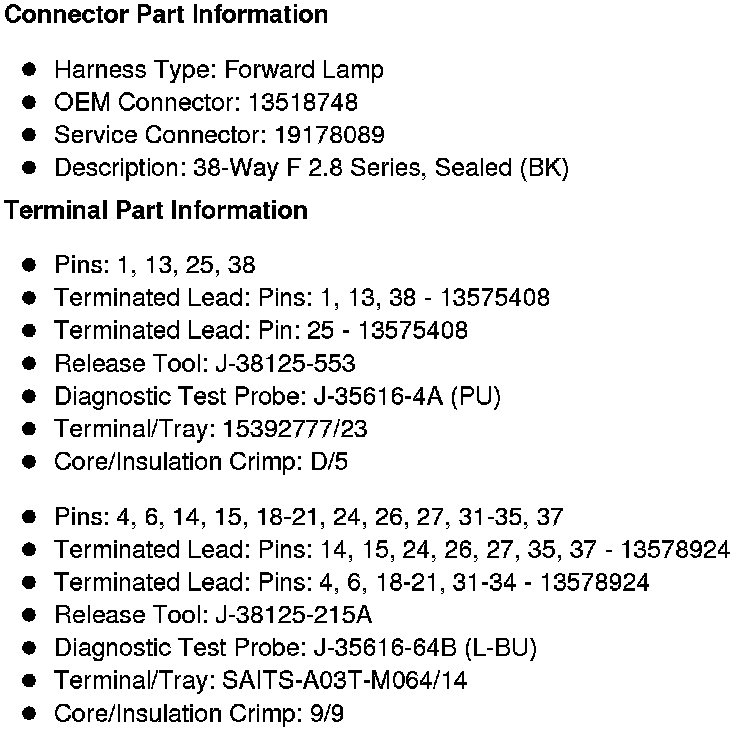

Component Connector End Views

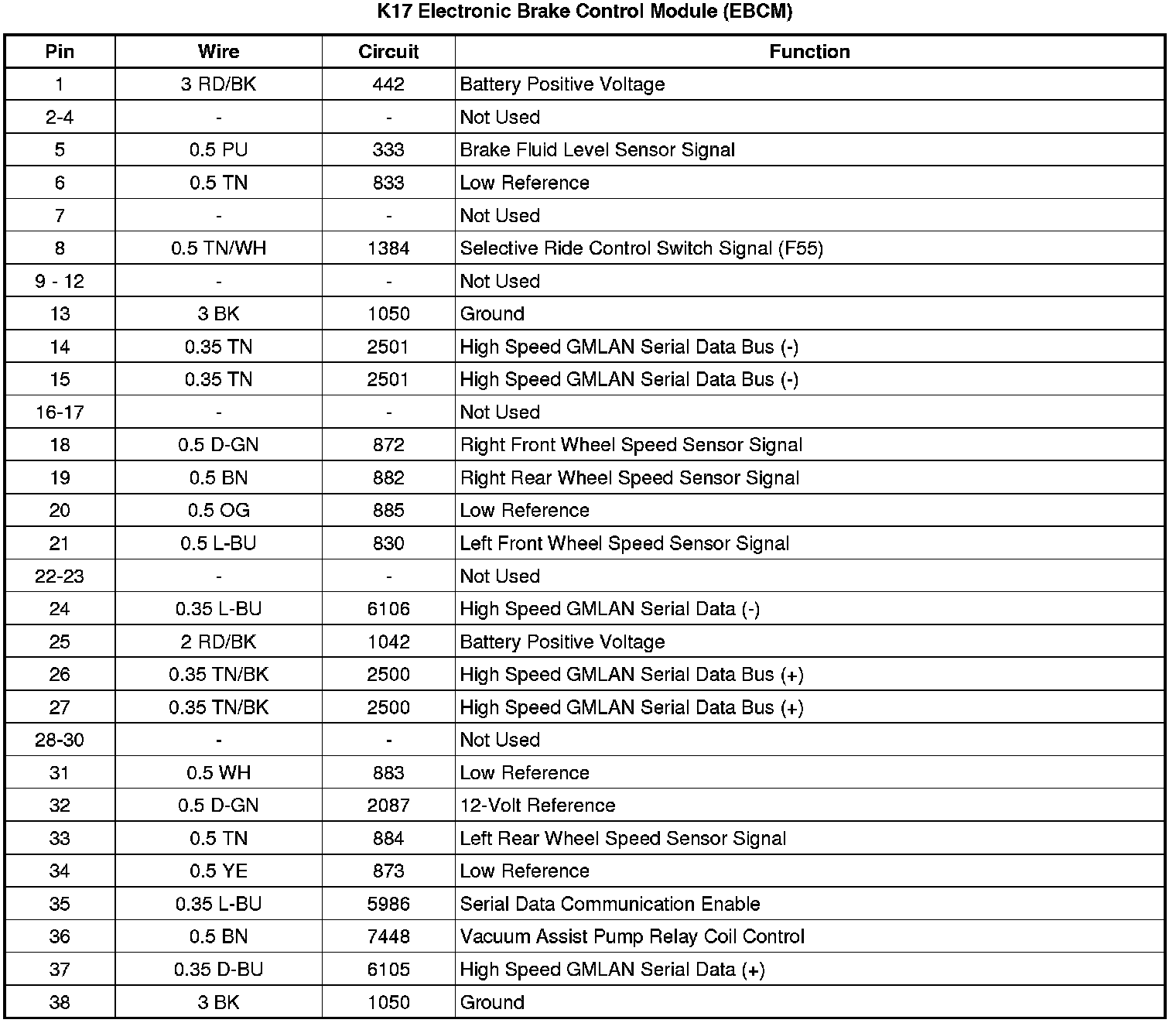

K17 Electronic Brake Control Module (EBCM)
