Gauge Alert Module
Gauge Alert Module

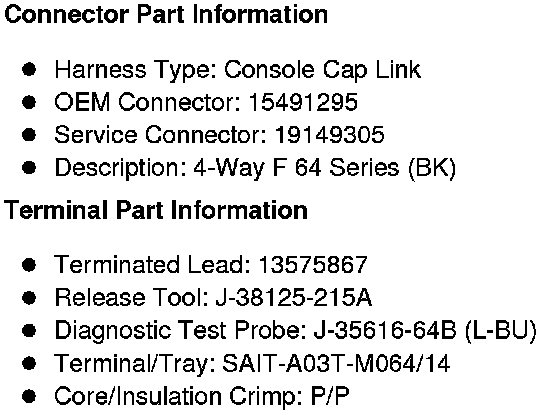

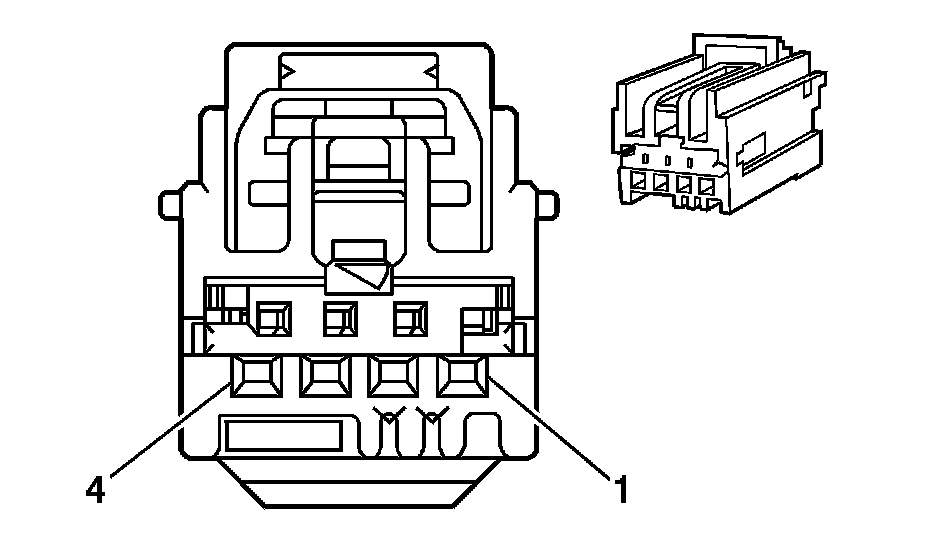

Component Connector End Views

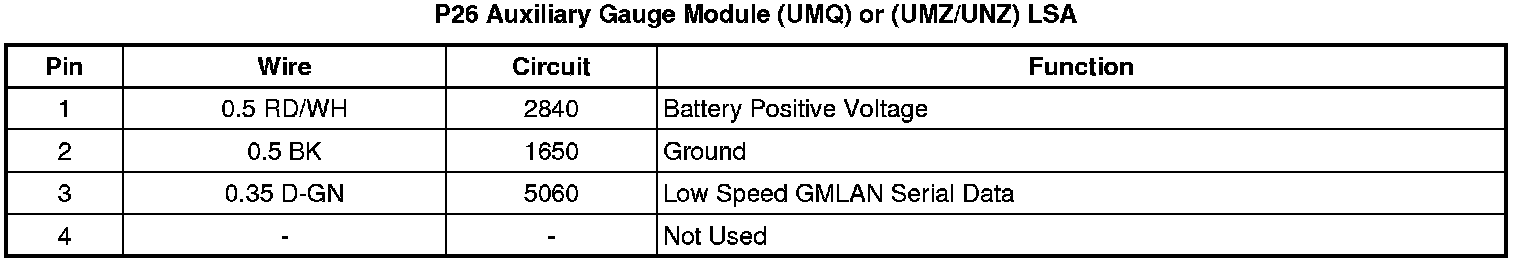

P26 Auxiliary Gauge Module (UMQ) or (UMZ/UNZ) LSA
