Seat Climate Control Module

Passenger Compartment/Roof Component Views

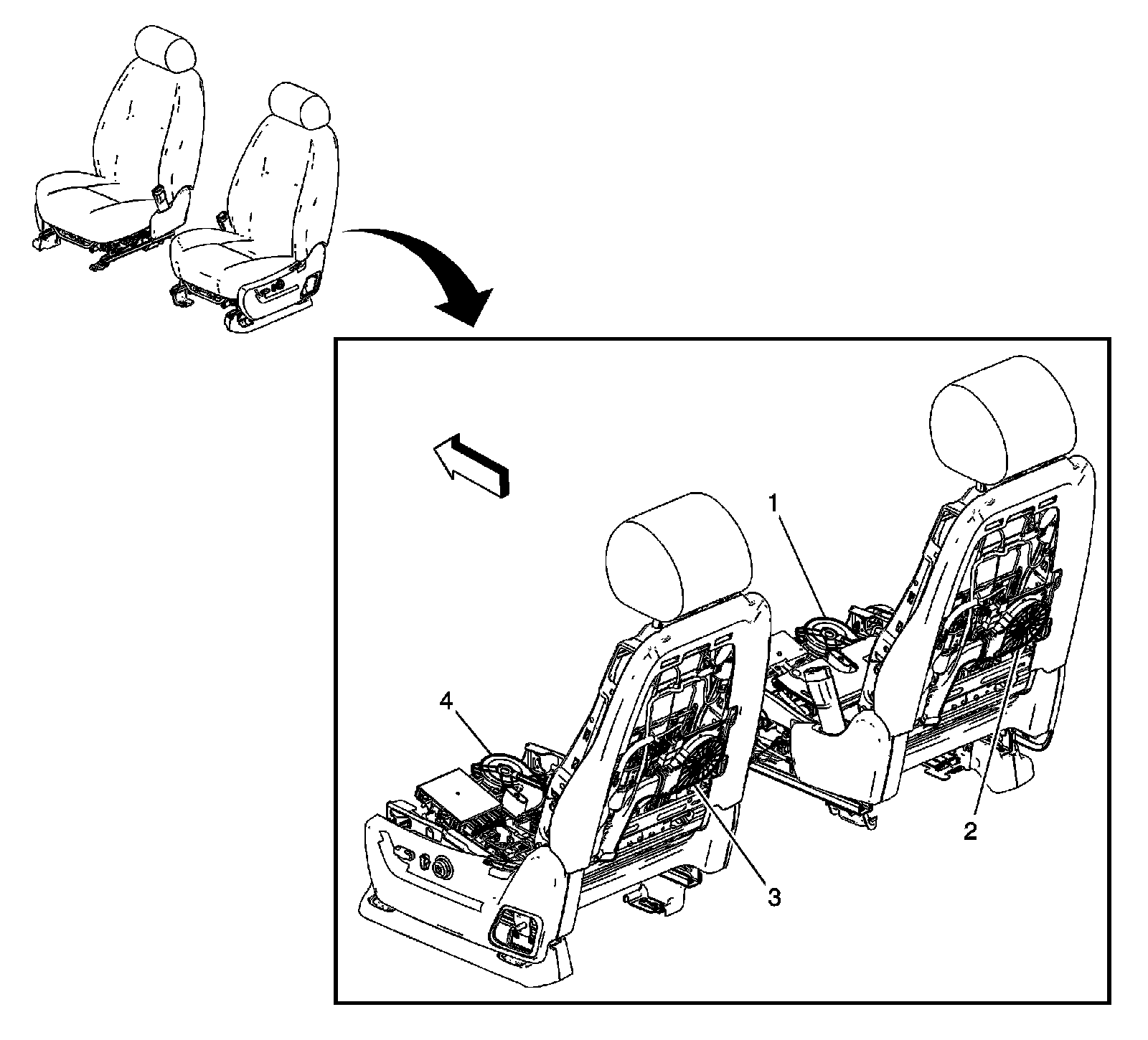

Driver and Passenger Seat Components (KB6)




1 - Seat Climate Control Module
2 - Seat Cushion Ventilation Heating and Cooling Module - Passenger
3 - Seat Back Ventilation Heating and Cooling Module - Passenger
4 - Seat Back Ventilation Heating and Cooling Module - Driver
5 - Seat Cushion Ventilation Heating and Cooling Module - Driver
