Home >> Chevrolet >> 2011 >> Volt L4-1.4L Elect >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> Parking Assist Control Module X2

Parking Assist Control Module X2

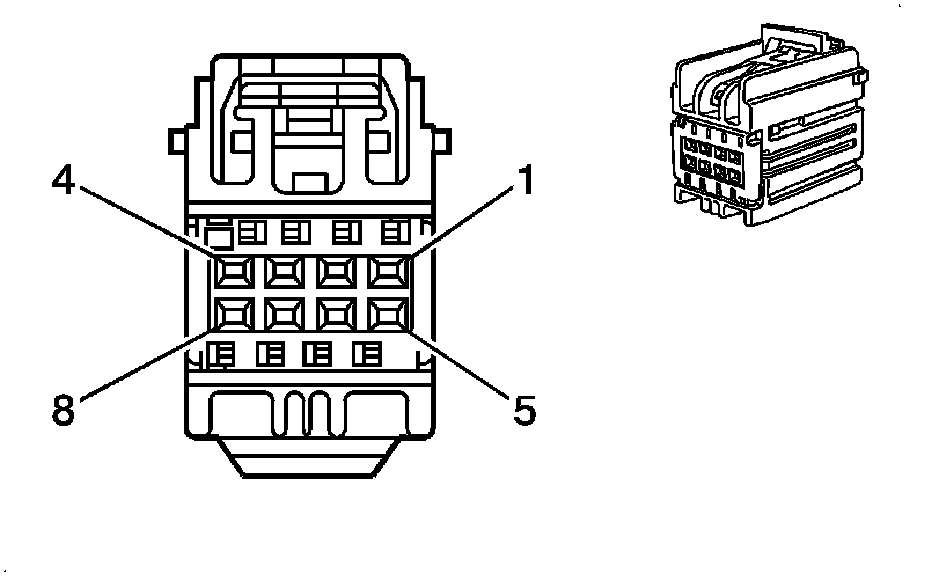

Component Connector End Views

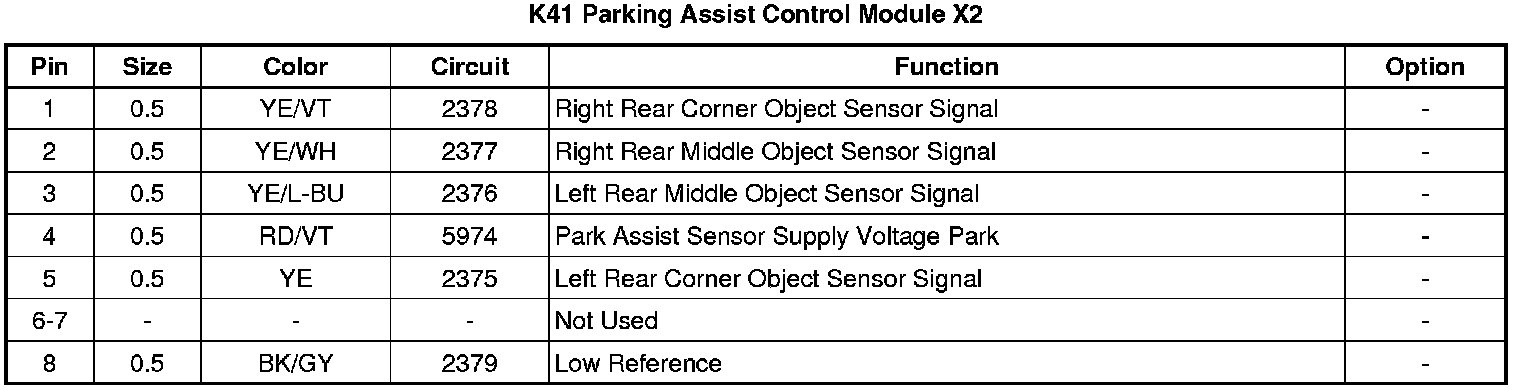

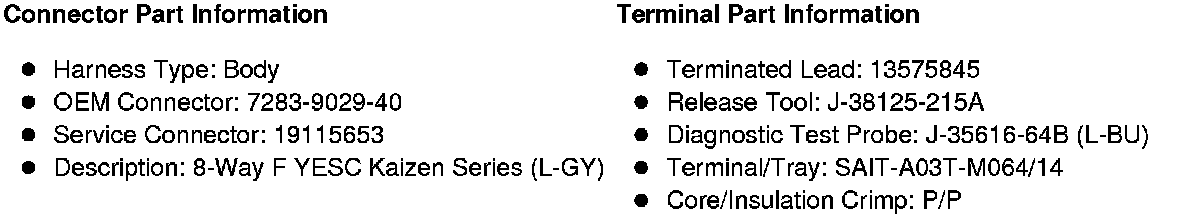

K41 Parking Assist Control Module X2
