Hybrid Power Control Module
>>
Hybrid Powertrain Control Module 2 X2
Hybrid Powertrain Control Module 2 X2

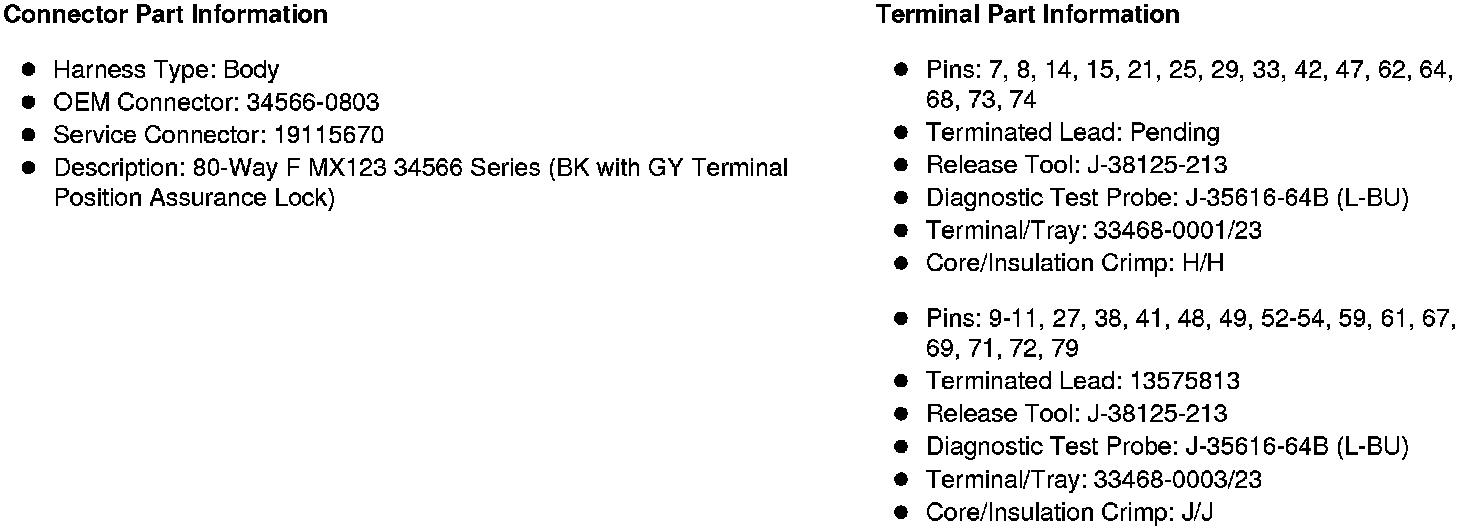

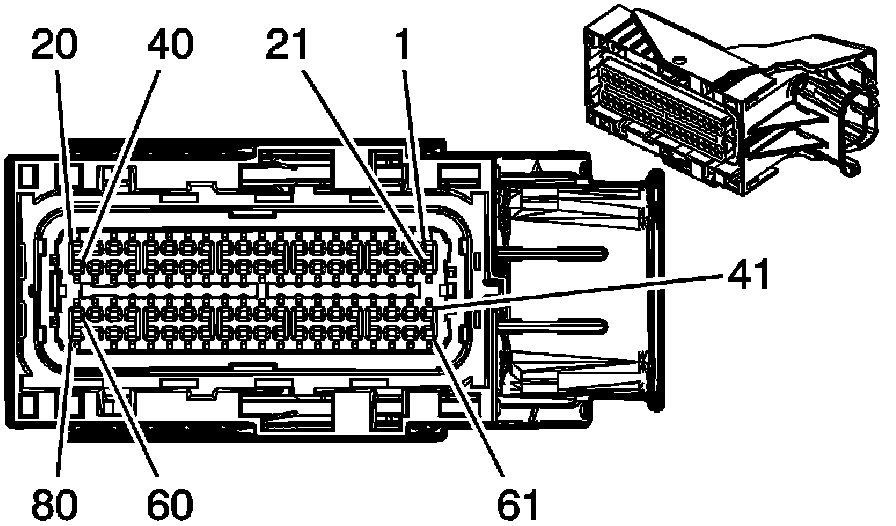

Component Connector End Views

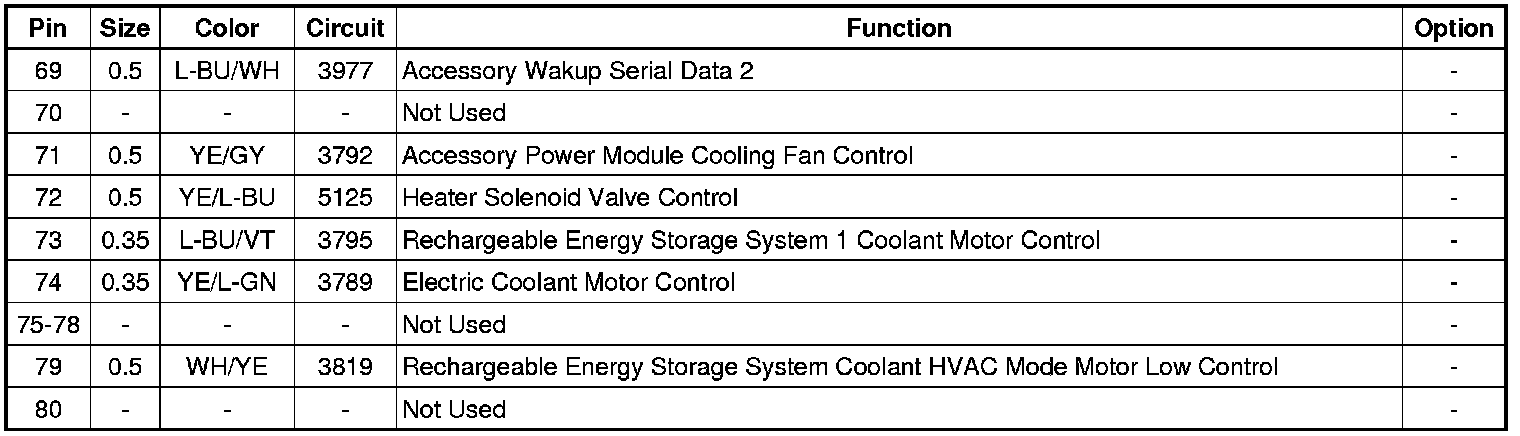

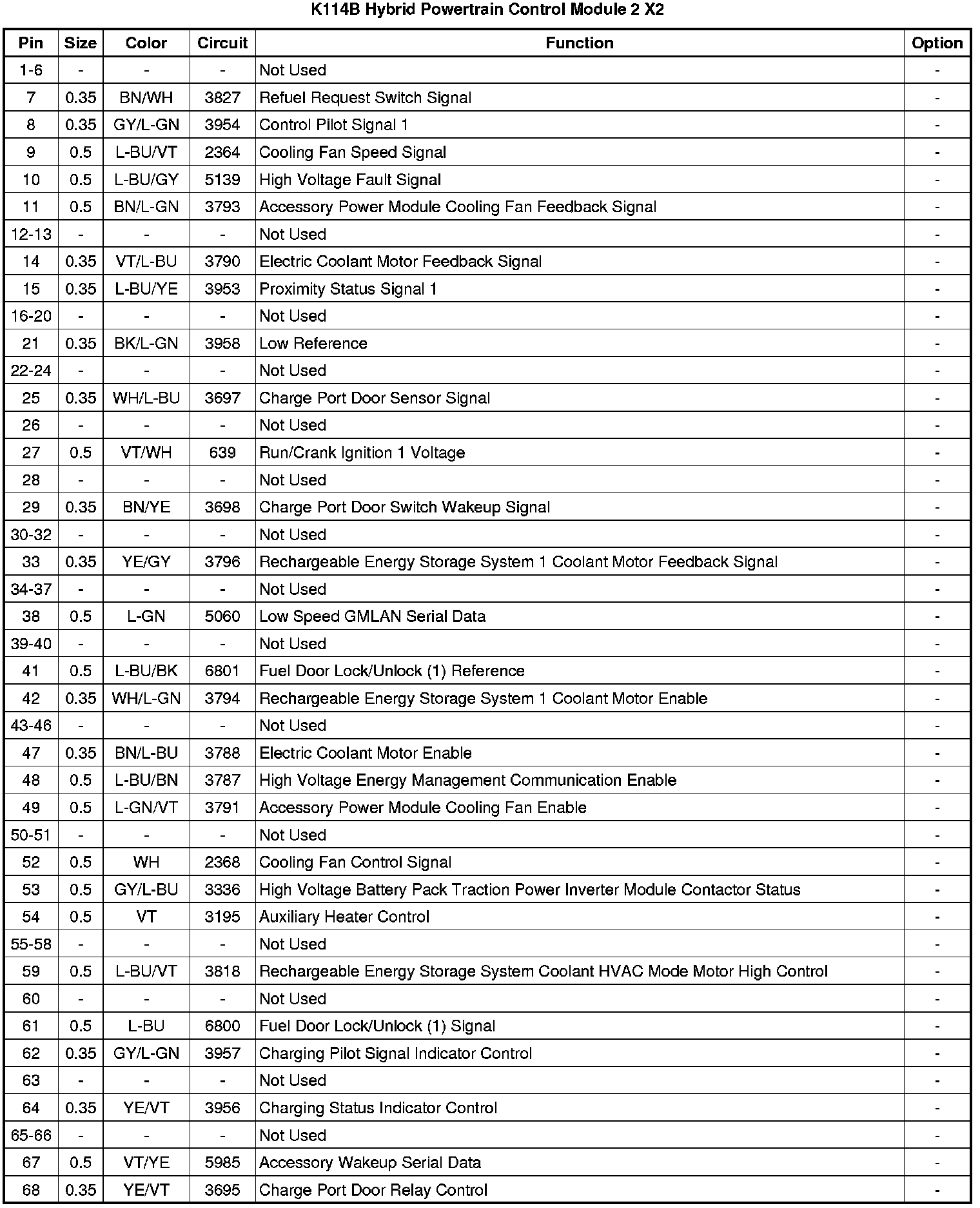

K114B Hybrid Powertrain Control Module 2 X2
