Power Door Lock Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

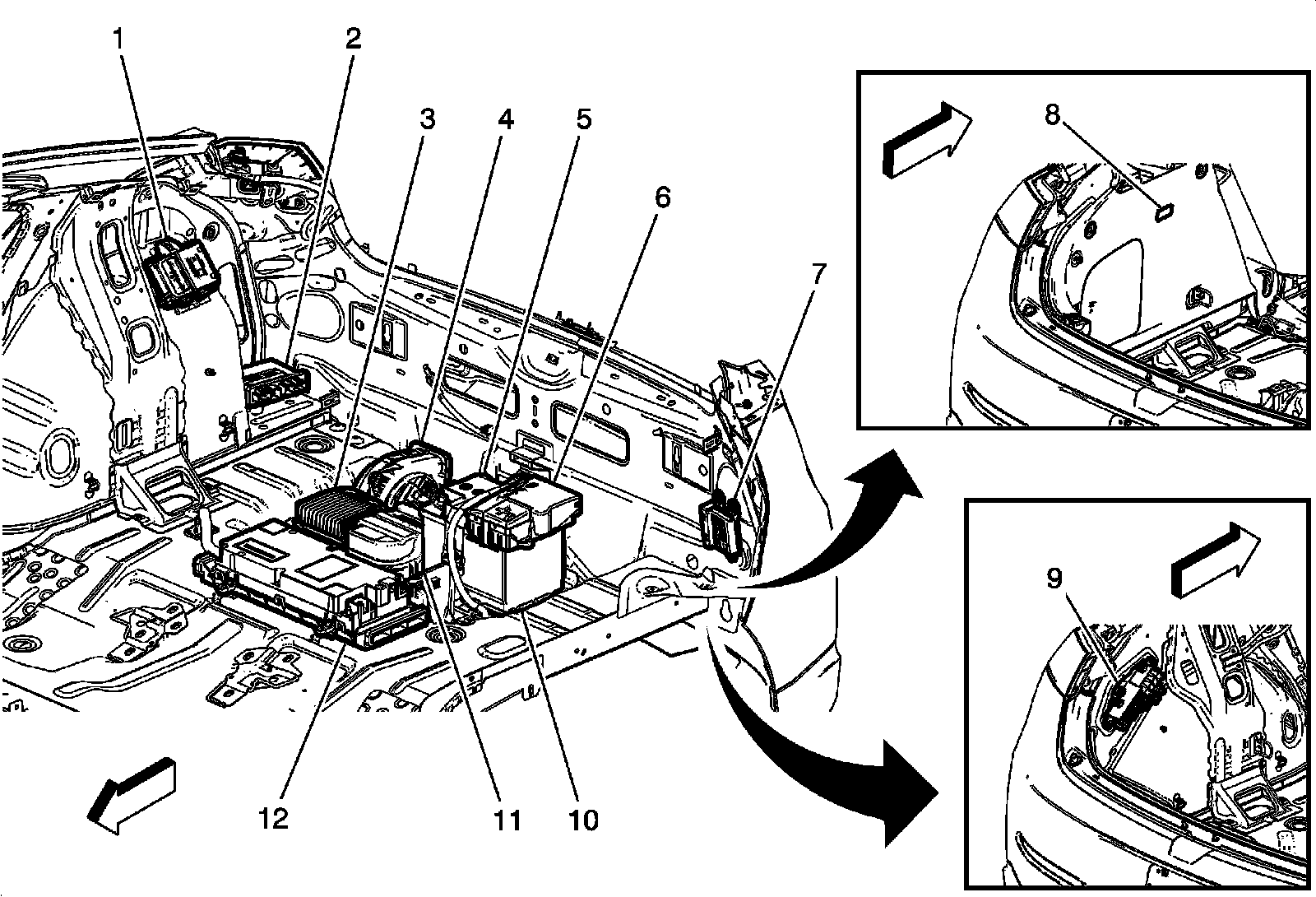

Luggage Compartment Components




1 - K27 Fuel Pump Control Module
2 - K84 Keyless Entry Control Module
3 - B18 Battery Current Sensor
4 - A23C Liftgate Latch Assembly
5 - X50D Fuse Block - Battery
6 - K41 Parking Assist Control Module
7 - E33 Cargo Lamp
8 - X53A Fuse Block - Rear Body
9 - C1 Battery
