Data Link Connector: Diagrams




Component Connector End Views

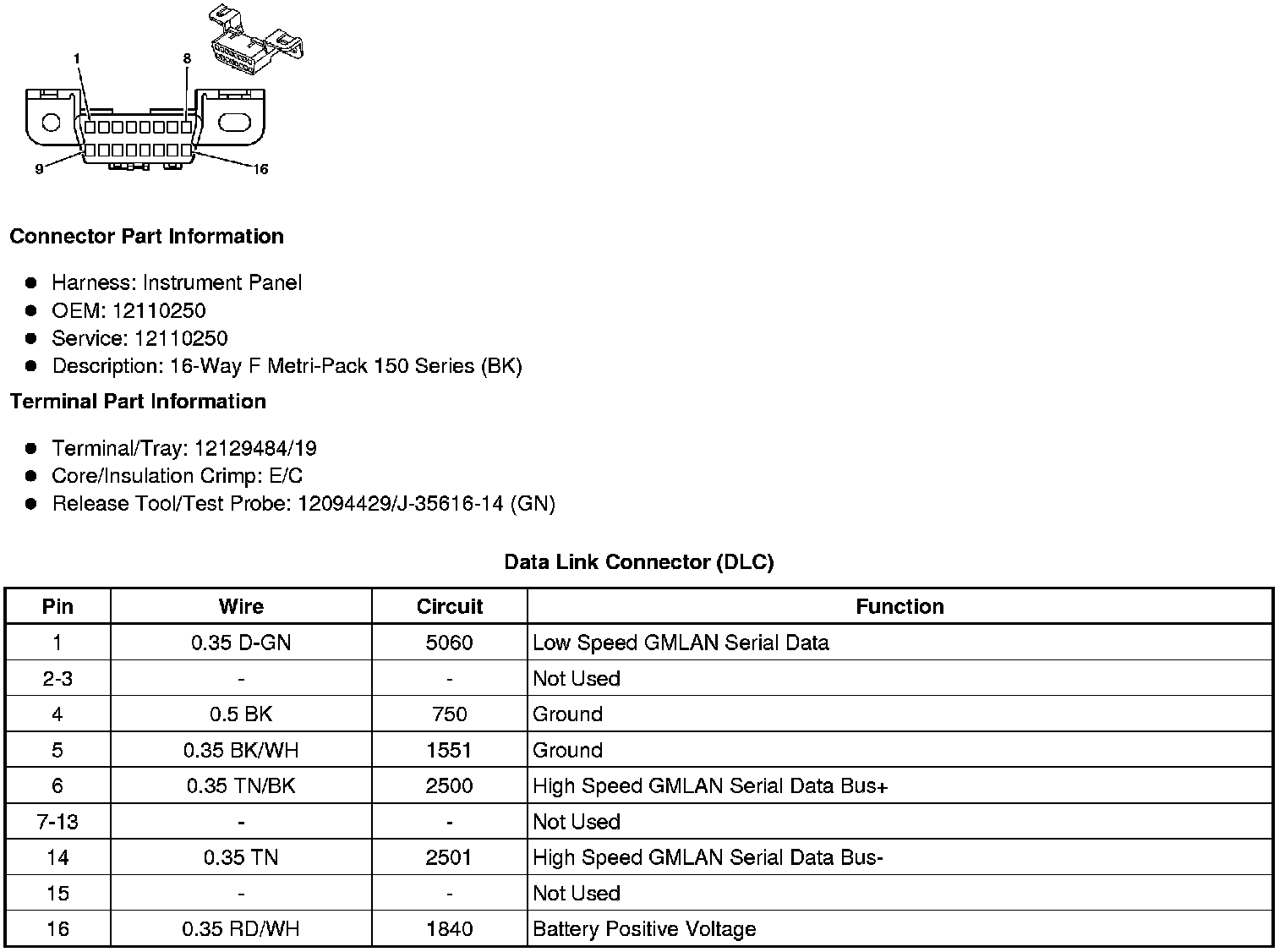

Data Link Connector (DLC)

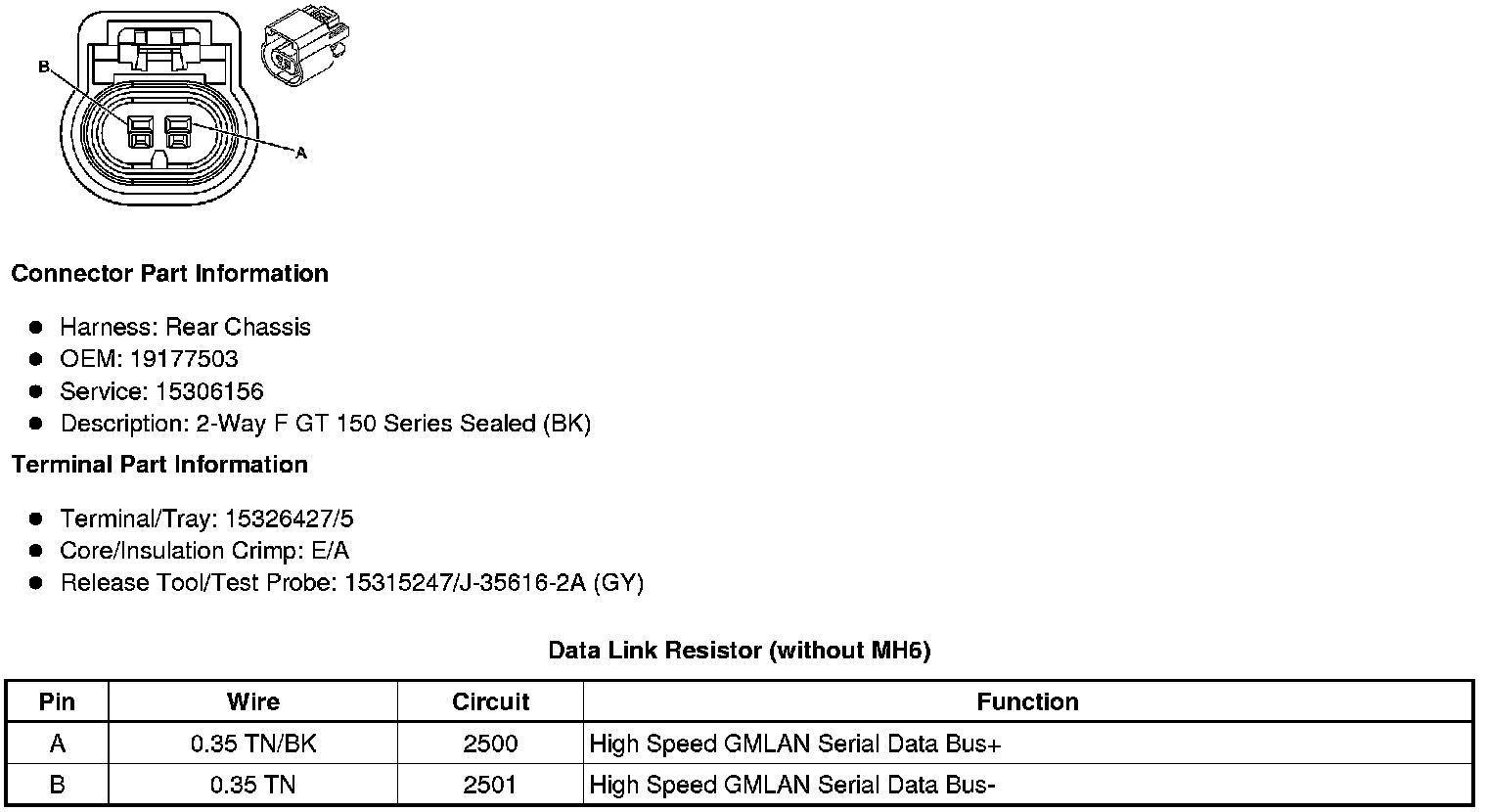

Data Link Resistor (without MH6)
