Steering Angle Sensor




Component Connector End Views

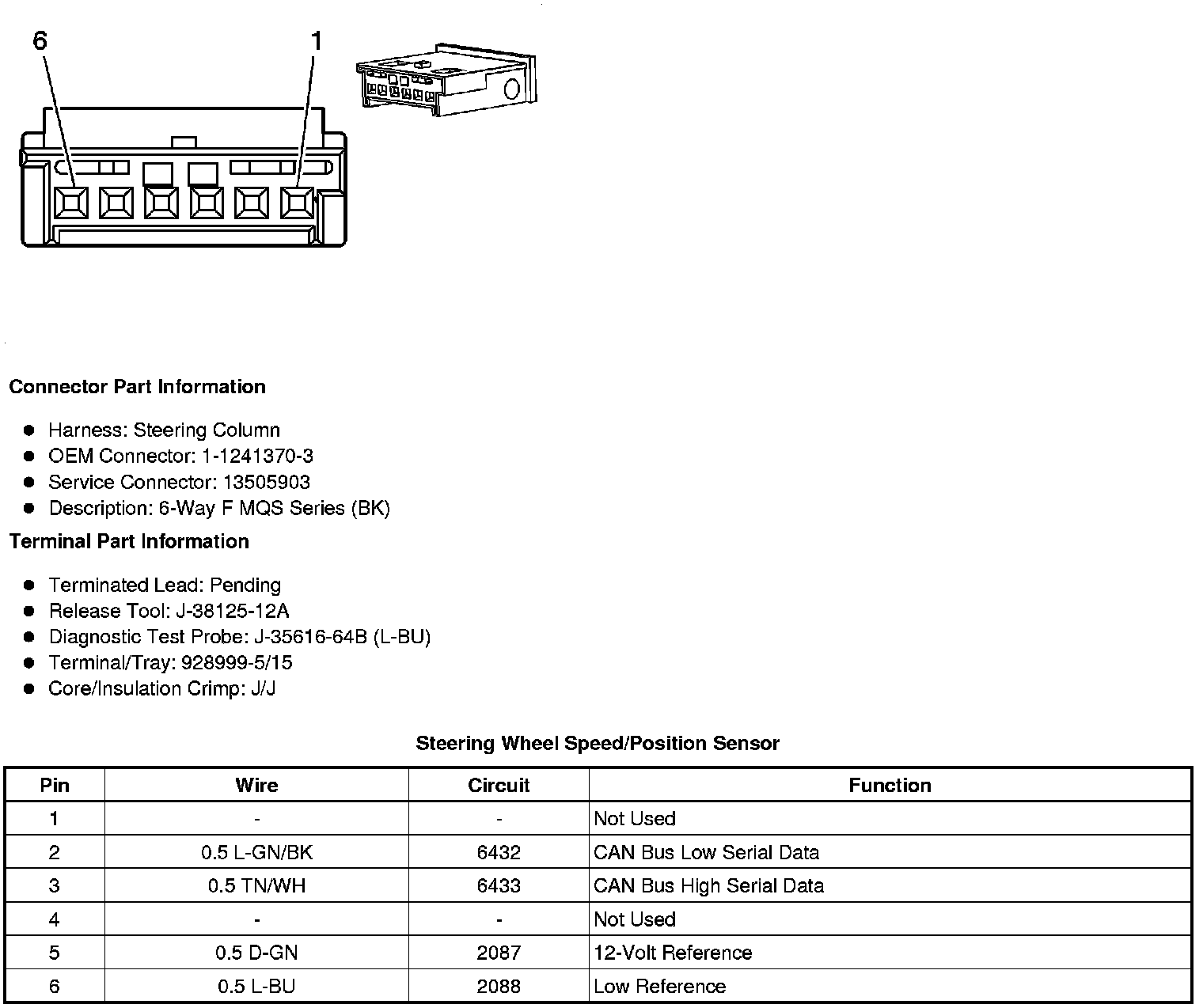

Steering Wheel Speed/Position Sensor

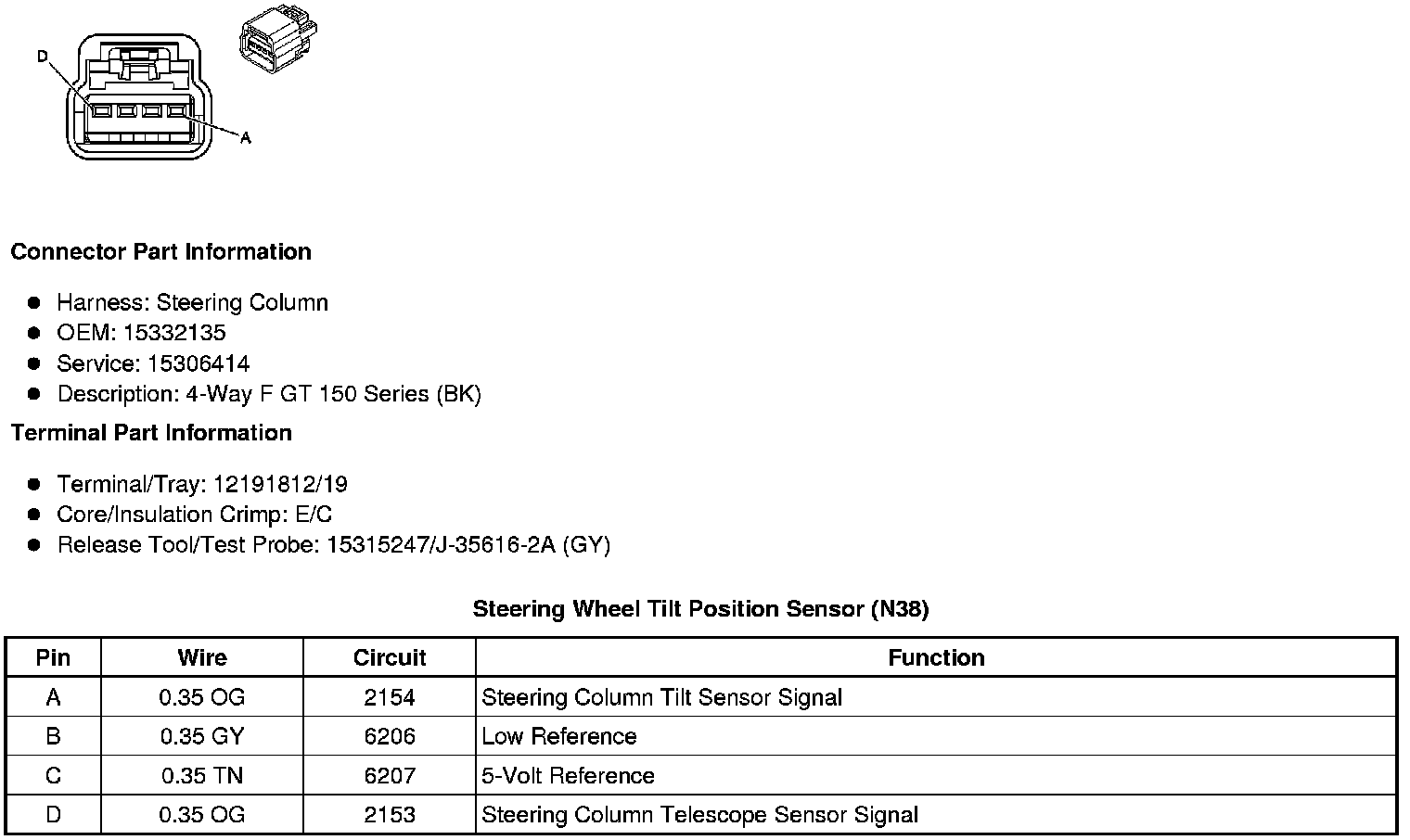

Steering Wheel Tilt Position Sensor (N38)
