Home >> Chevrolet >> 2011 >> Traverse FWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Position Sensor

Seat Position Sensor




Component Connector End Views

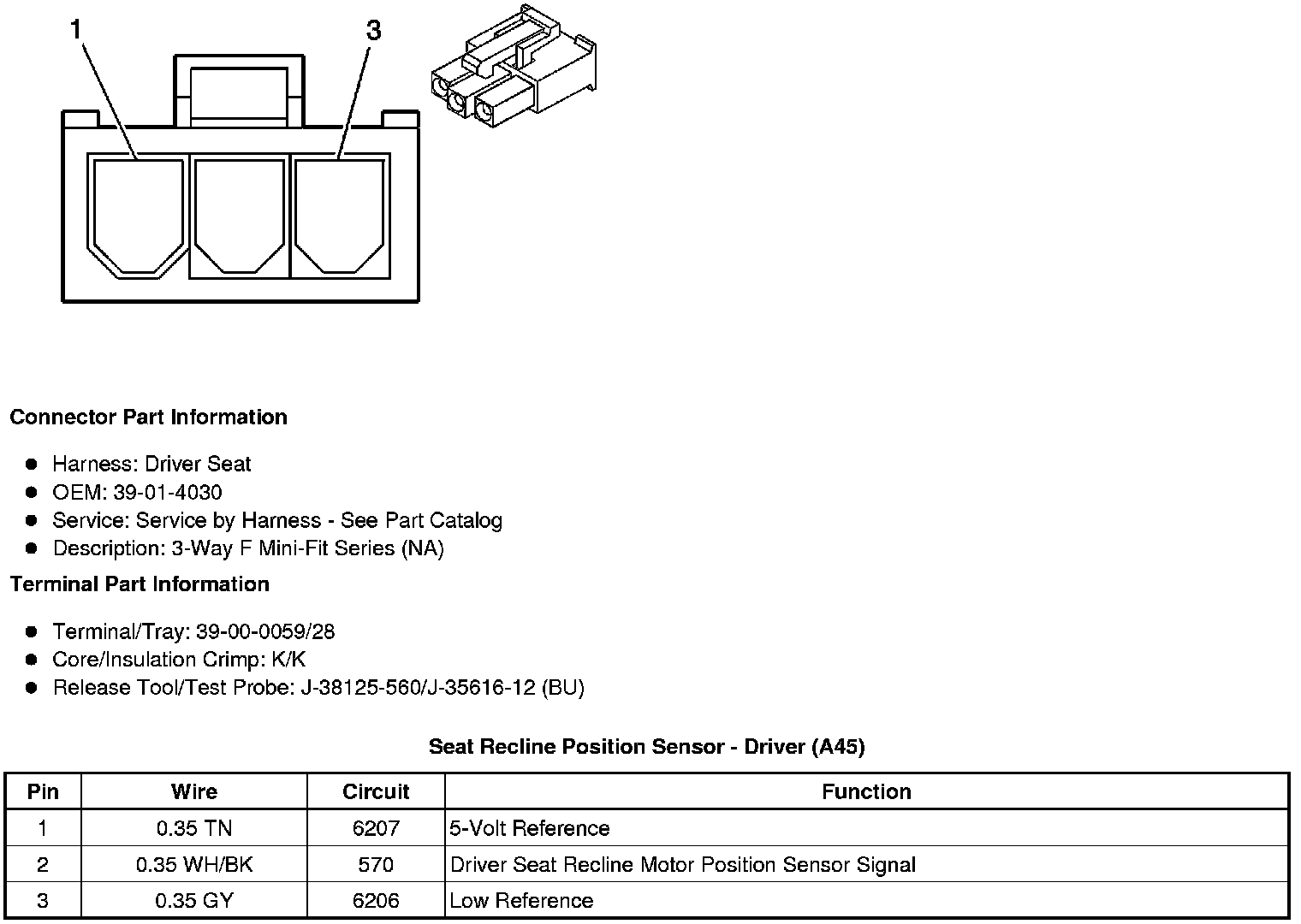

Seat Recline Position Sensor - Driver (A45)
