Impact Sensor




Component Connector End Views

Inflatable Restraint Front End Sensor - Left





Inflatable Restraint Front End Sensor - Right

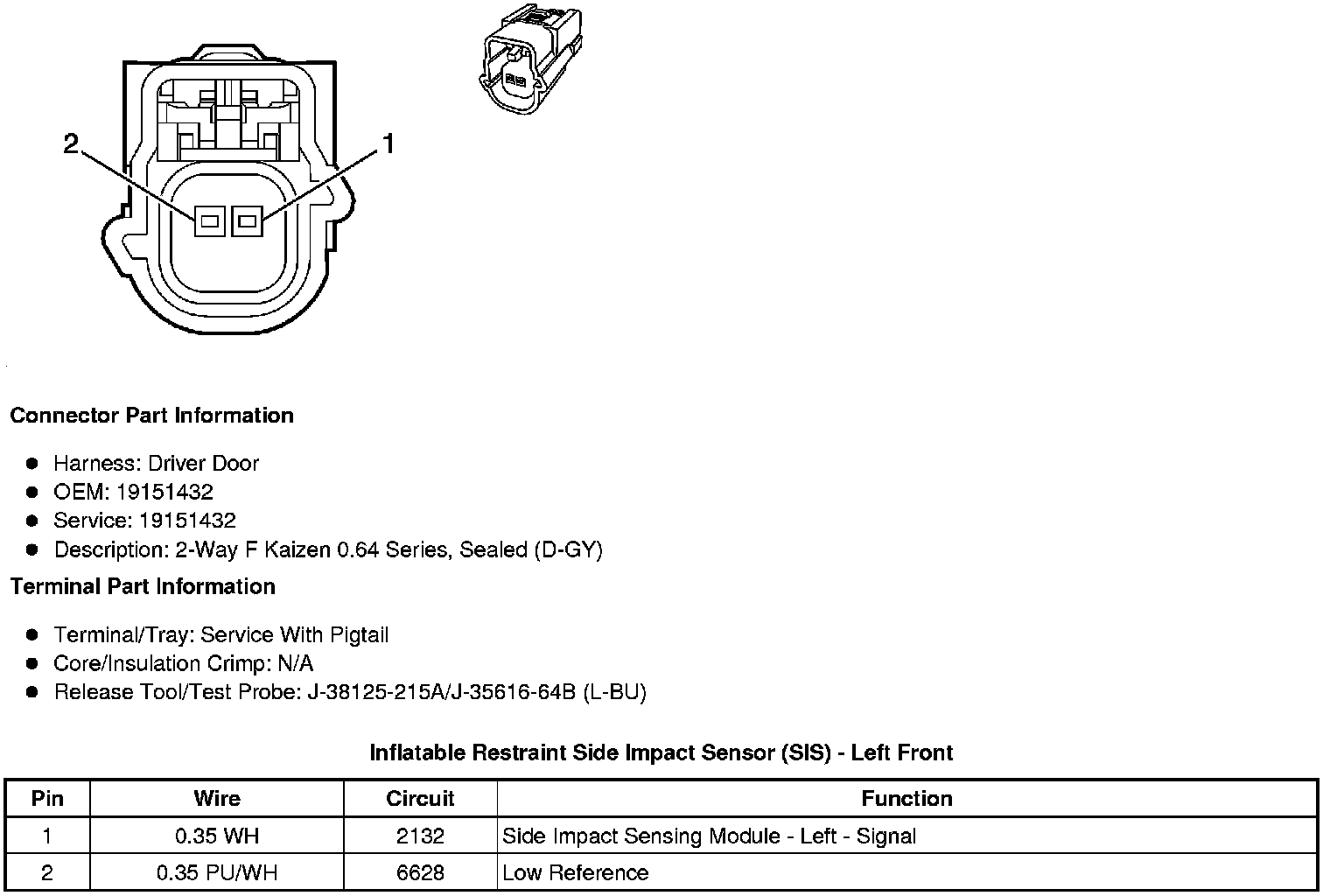

Inflatable Restraint Side Impact Sensor (SIS) - Left Front





Inflatable Restraint Side Impact Sensor (SIS) - Left Rear





Inflatable Restraint Side Impact Sensor (SIS) - Right Front





Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
