Headlamp Control Module




Component Connector End Views

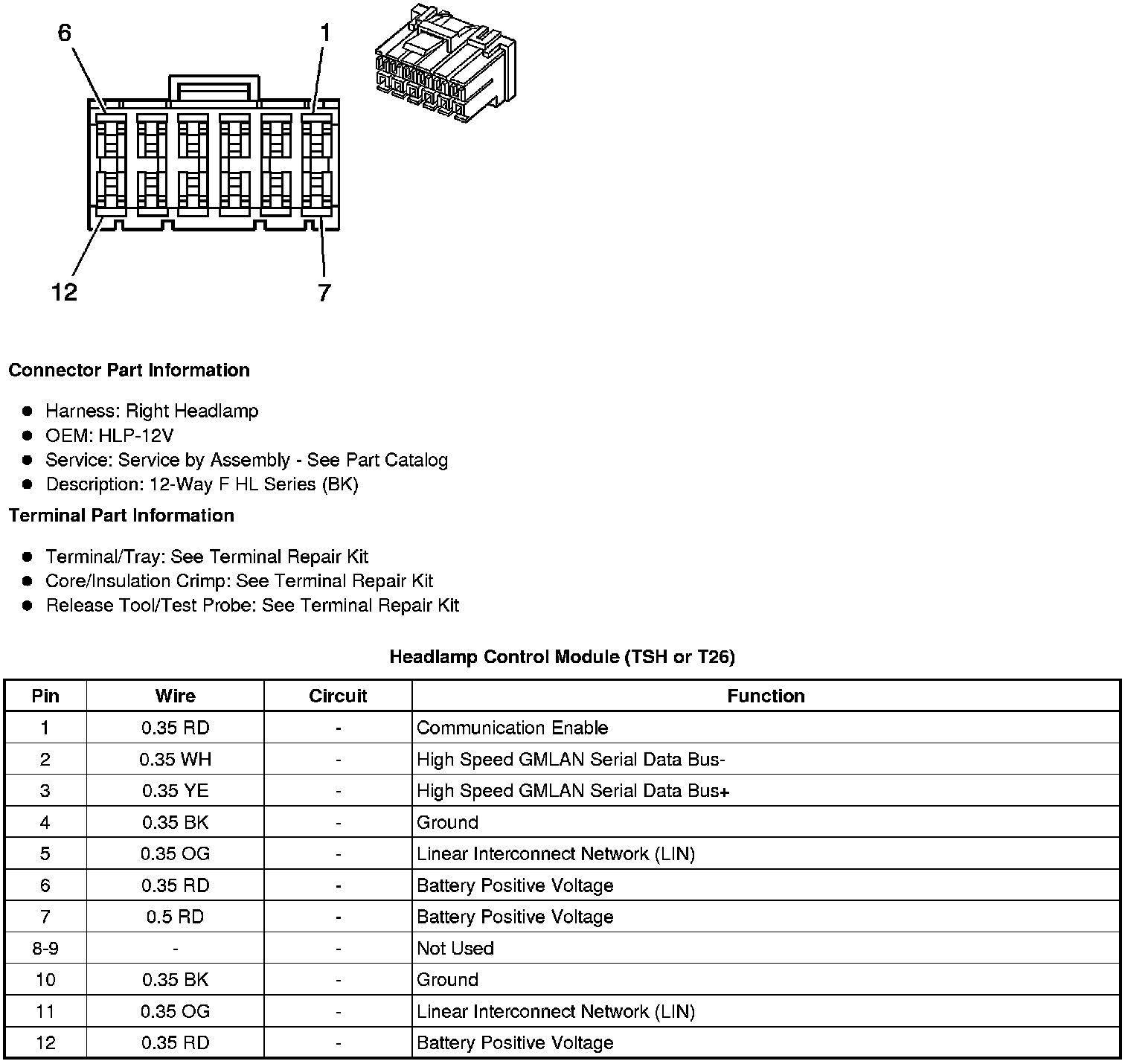

Headlamp Control Module (TSH or T26)

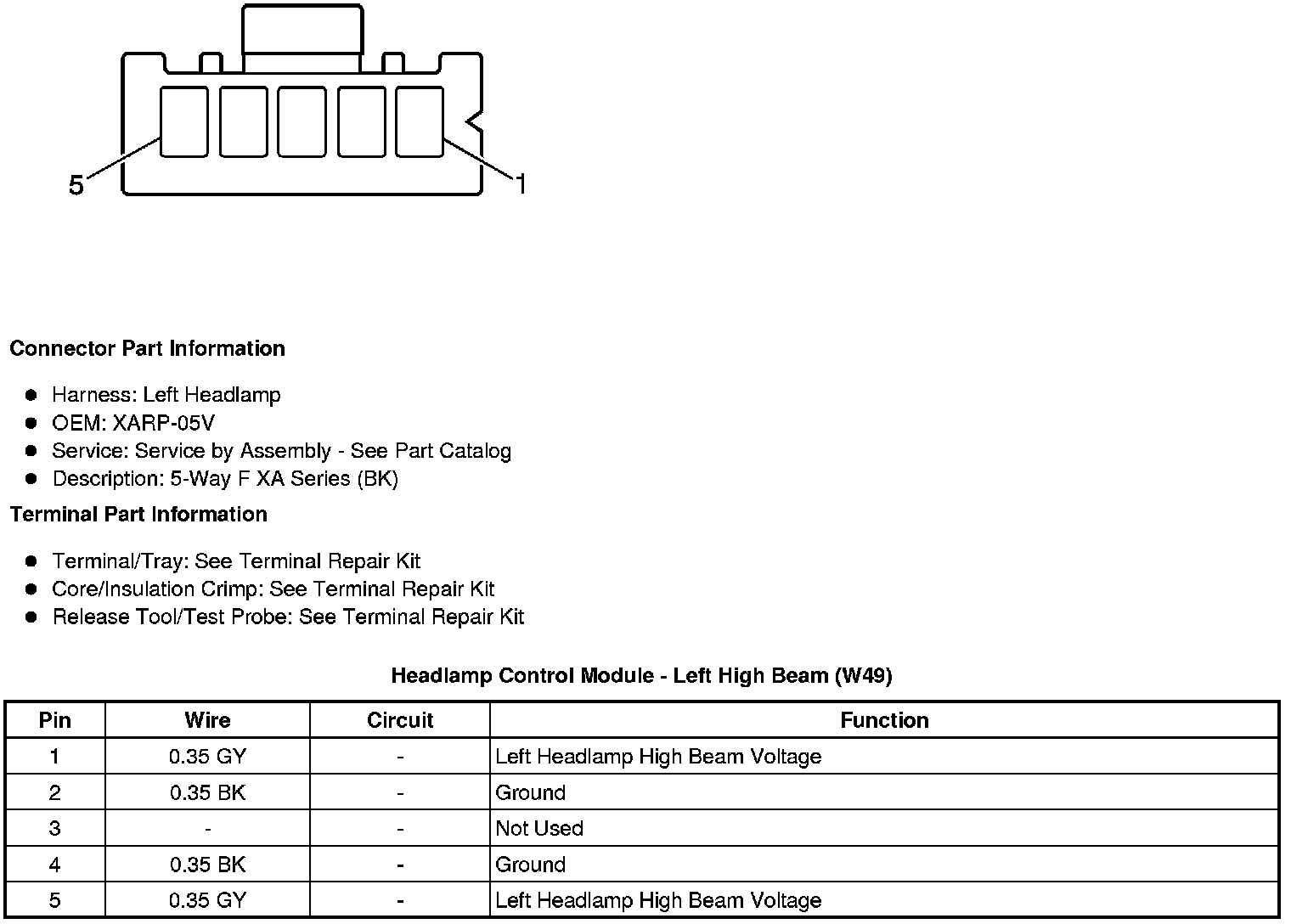

Headlamp Control Module - Left High Beam (W49)

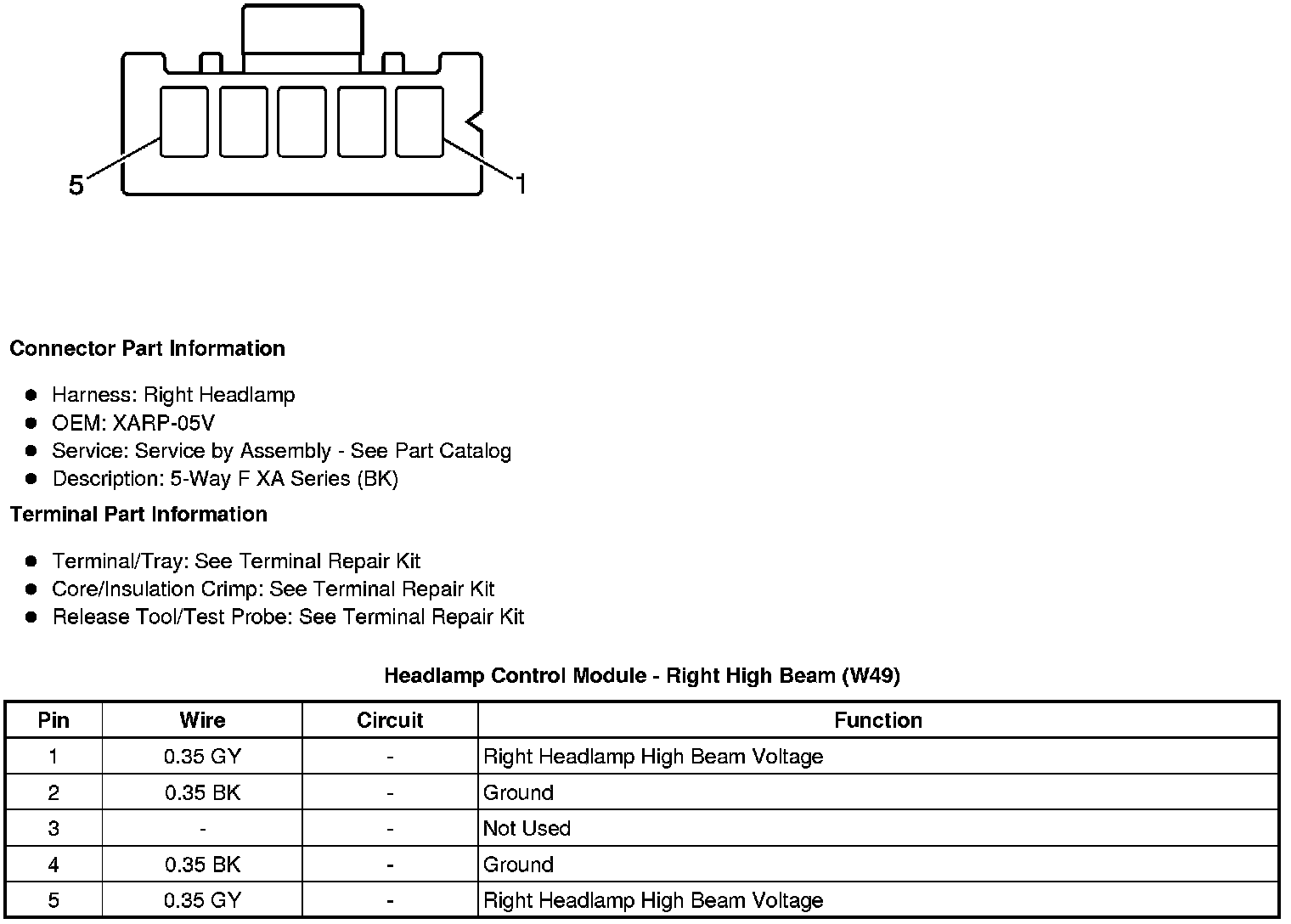

Headlamp Control Module - Right High Beam (W49)
