Engine Control Module
Engine Control Module
Component Connector End Views

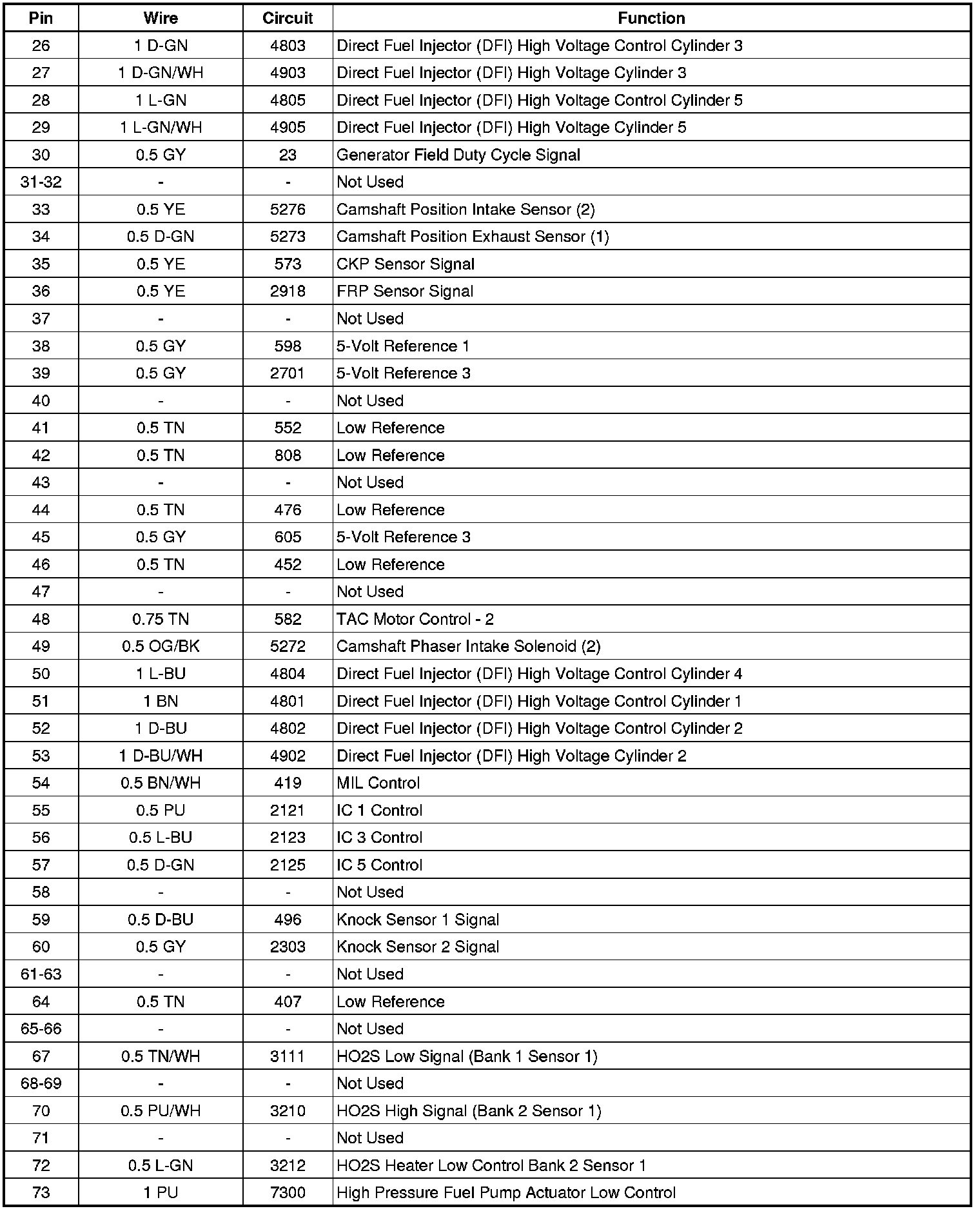

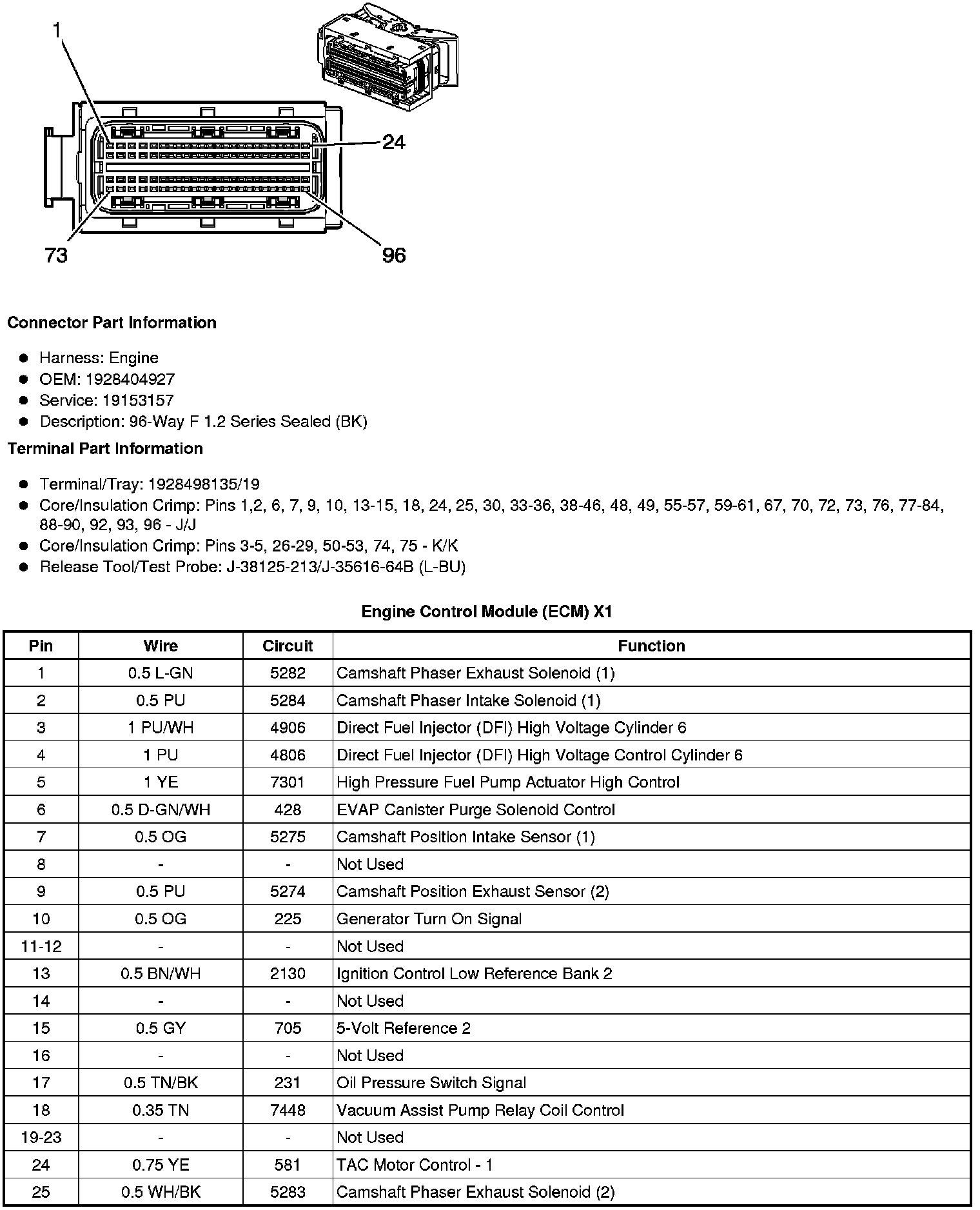

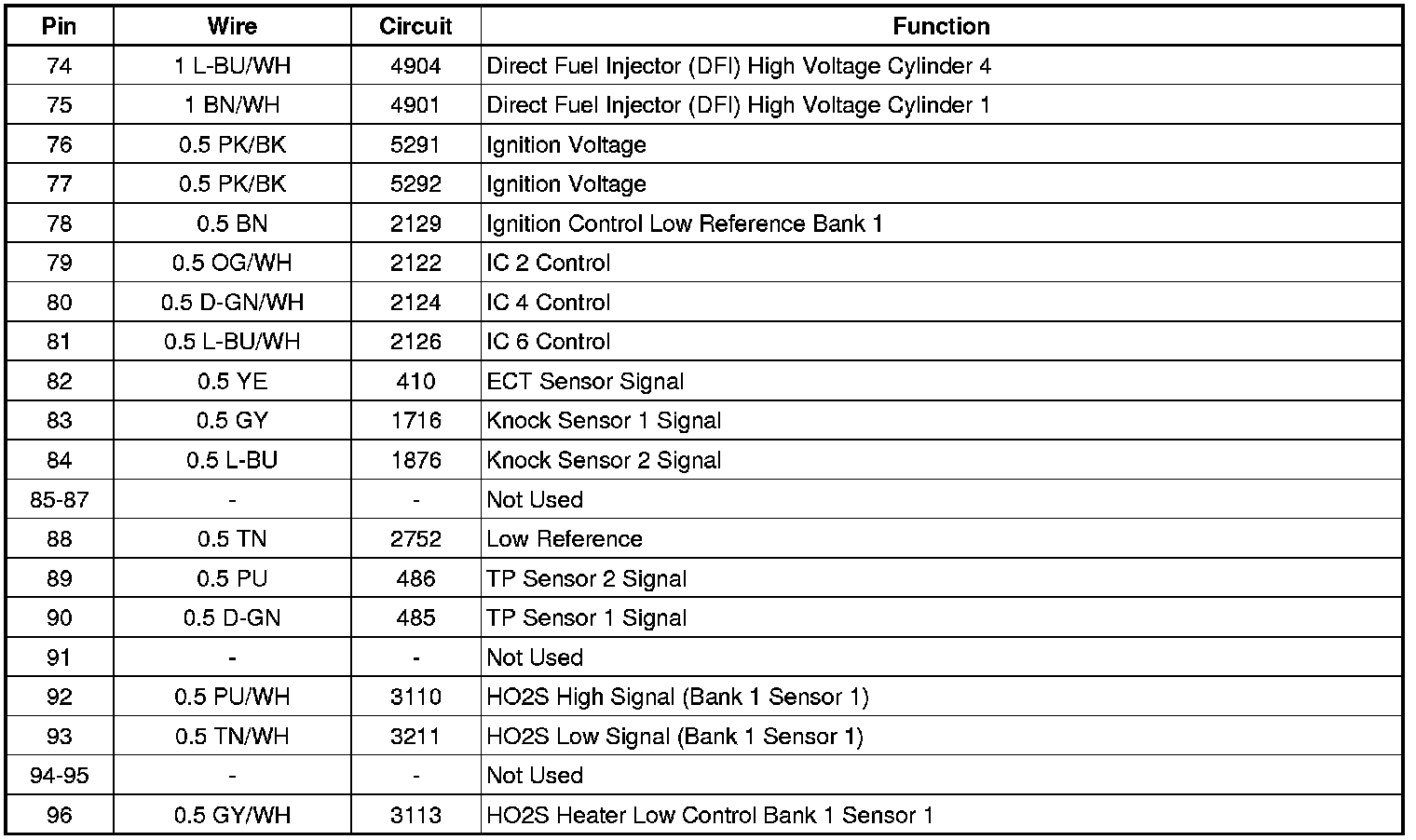

Engine Control Module (ECM) X1

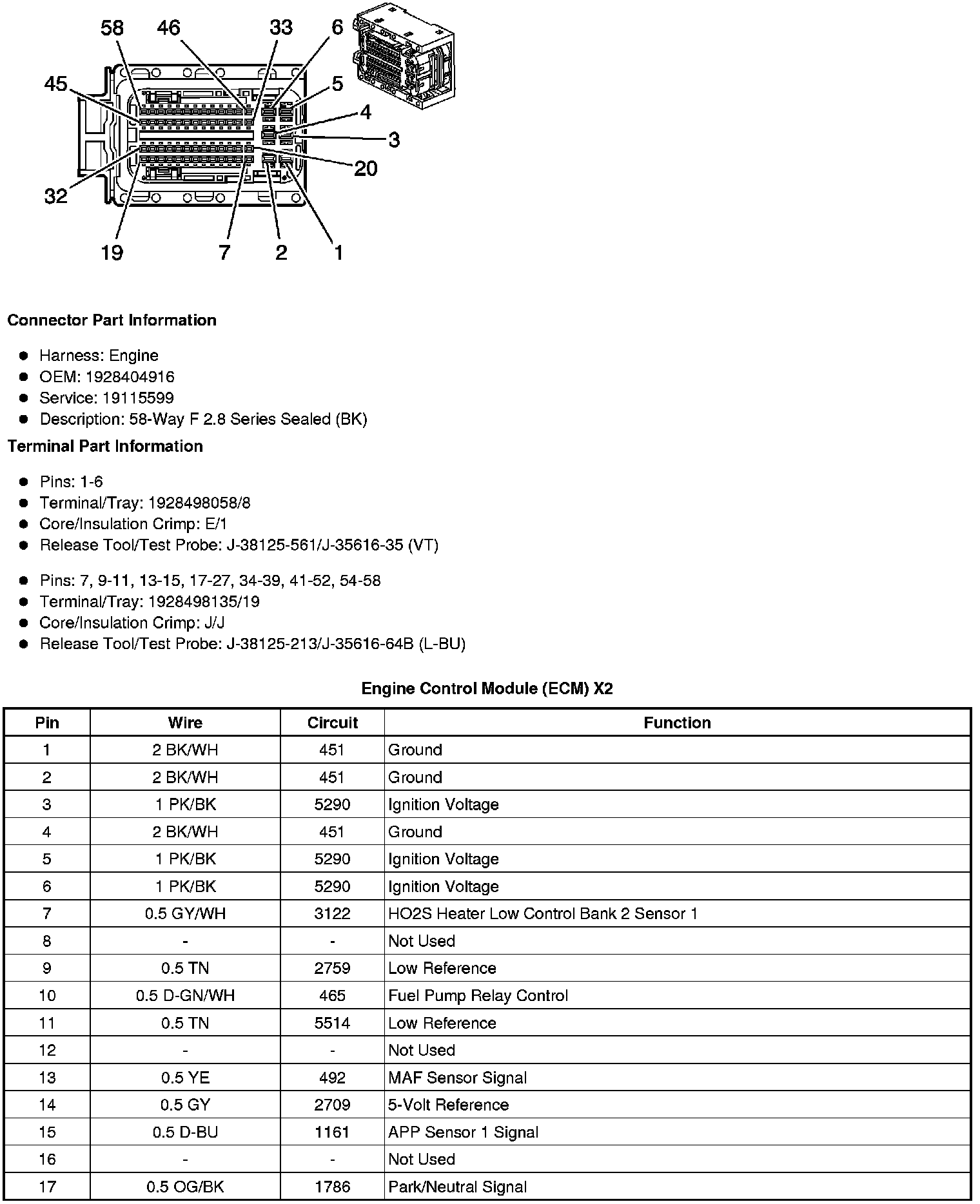

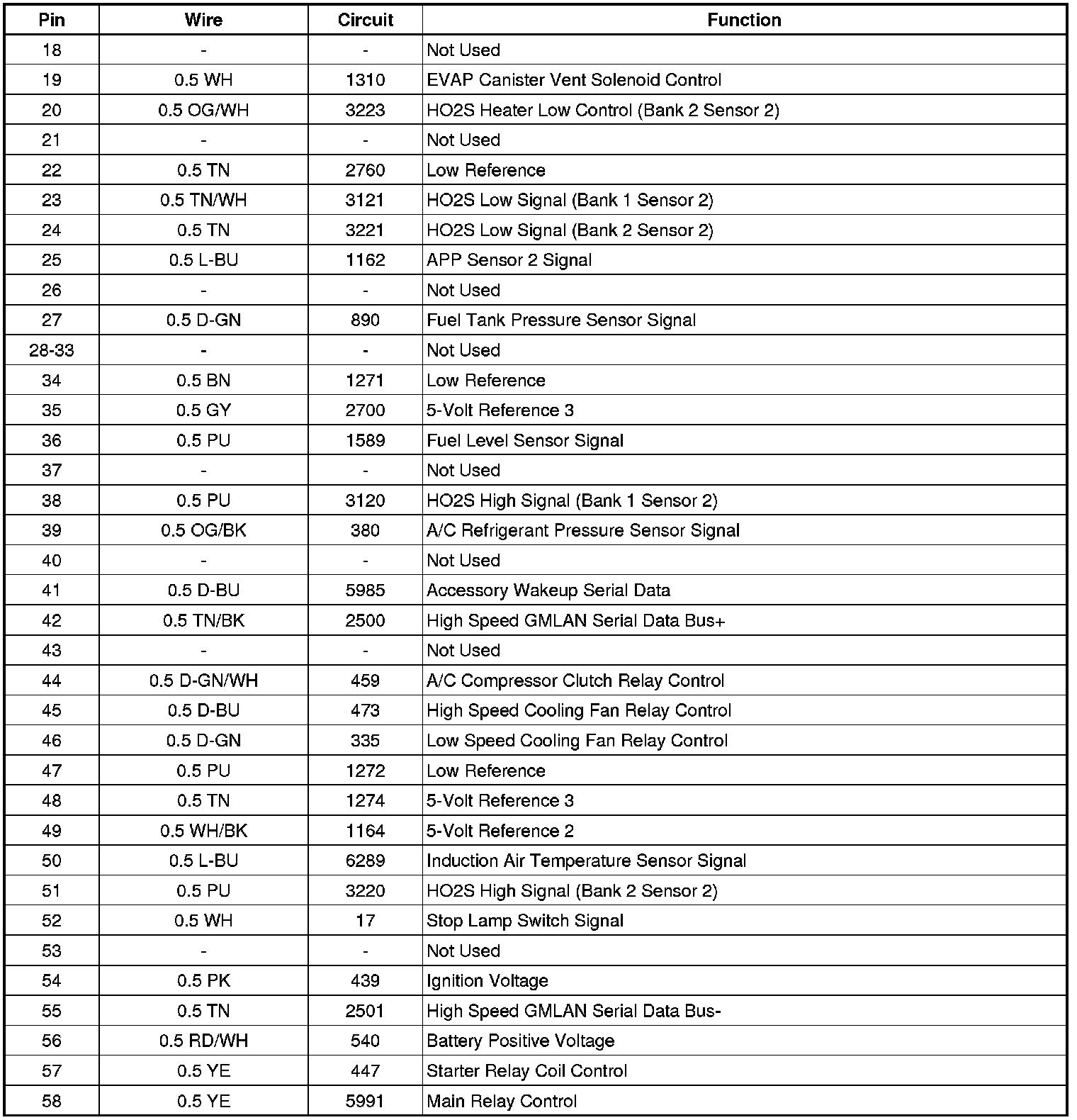

Engine Control Module (ECM) X2
