Control Module HVAC




Component Connector End Views

Blower Motor Control Module X1

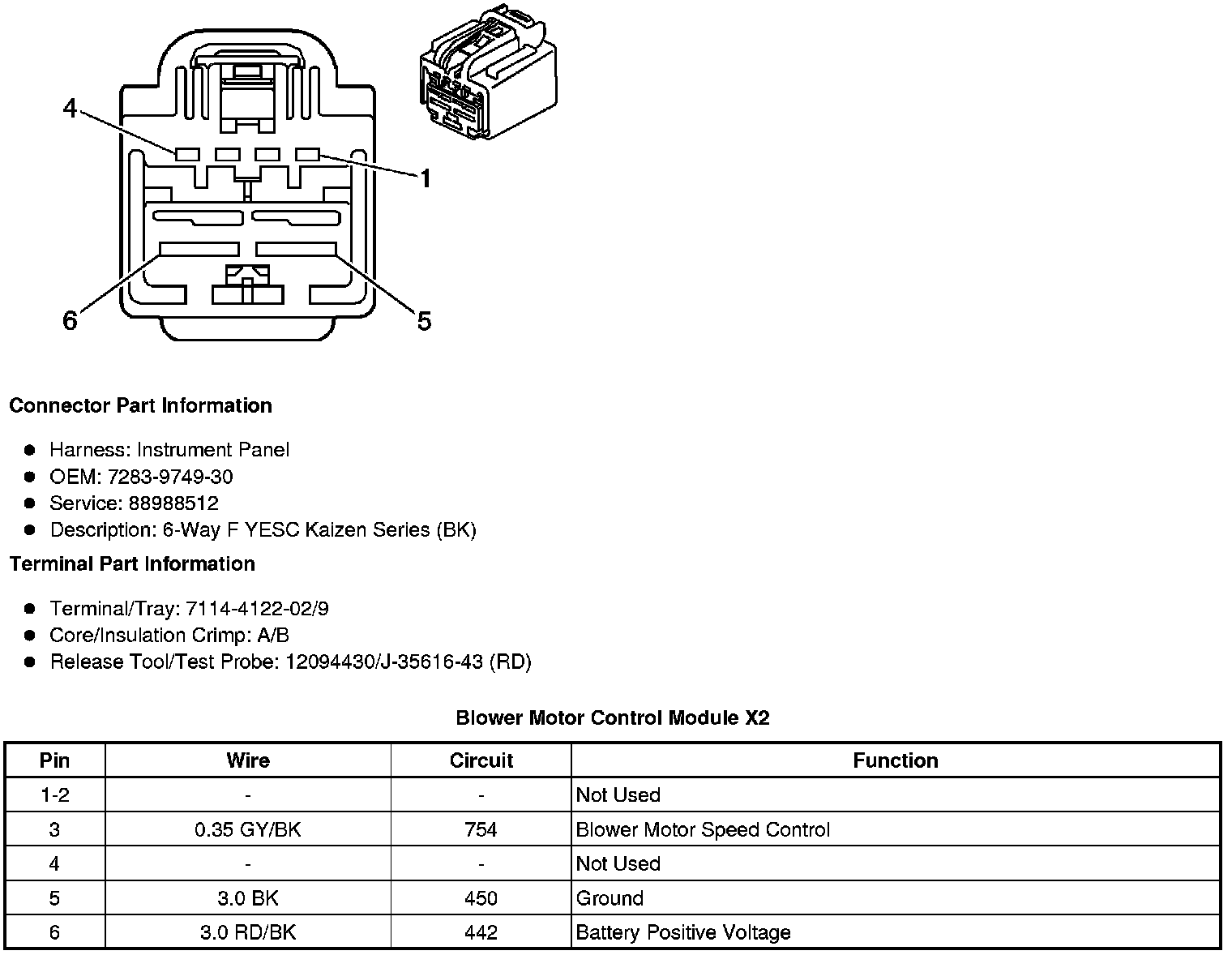

Blower Motor Control Module X2

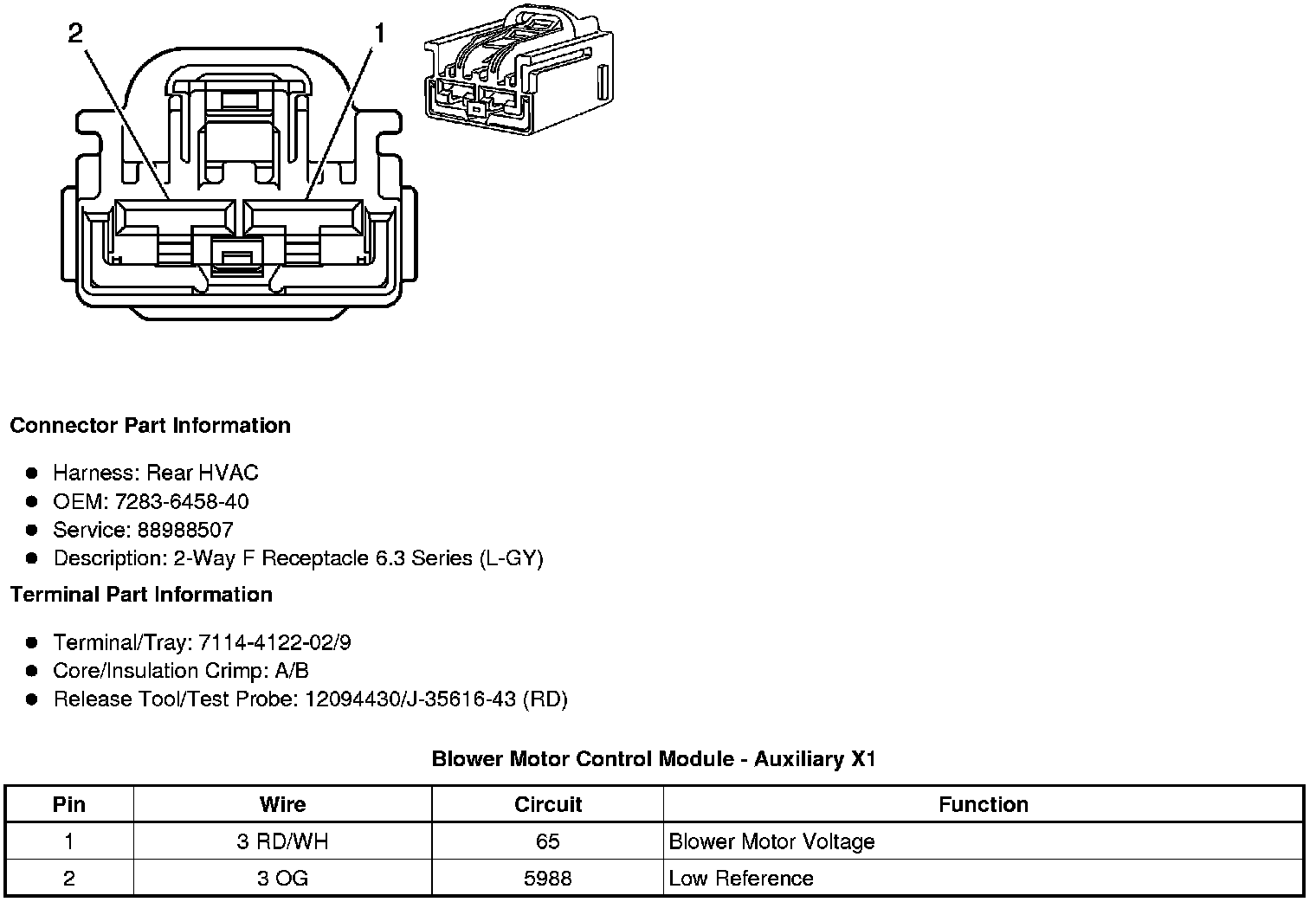

Blower Motor Control Module - Auxiliary X1

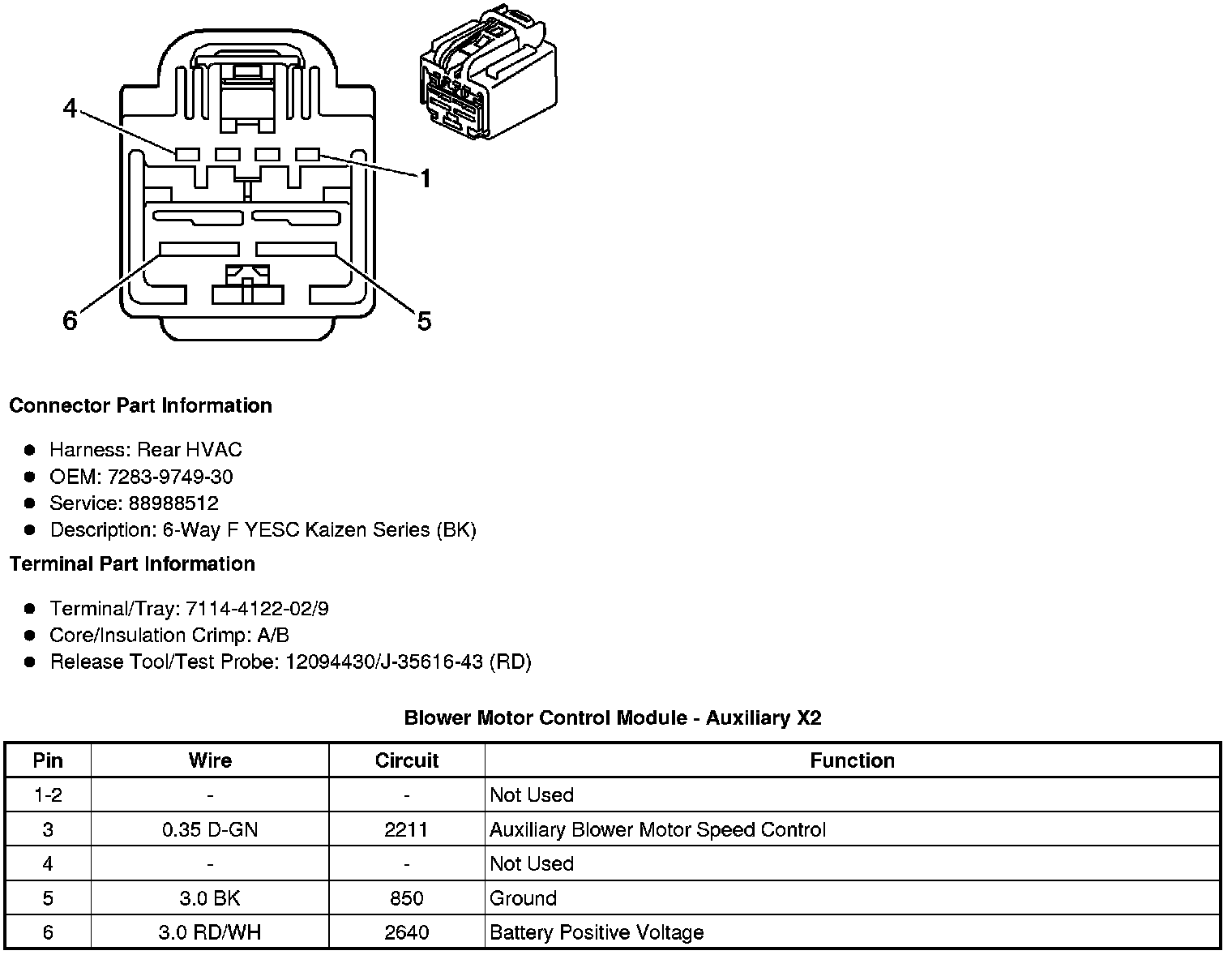

Blower Motor Control Module - Auxiliary X2
