Home >> Chevrolet >> 2011 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Unit, Differential Lock

Control Unit, Differential Lock




Component Connector End Views

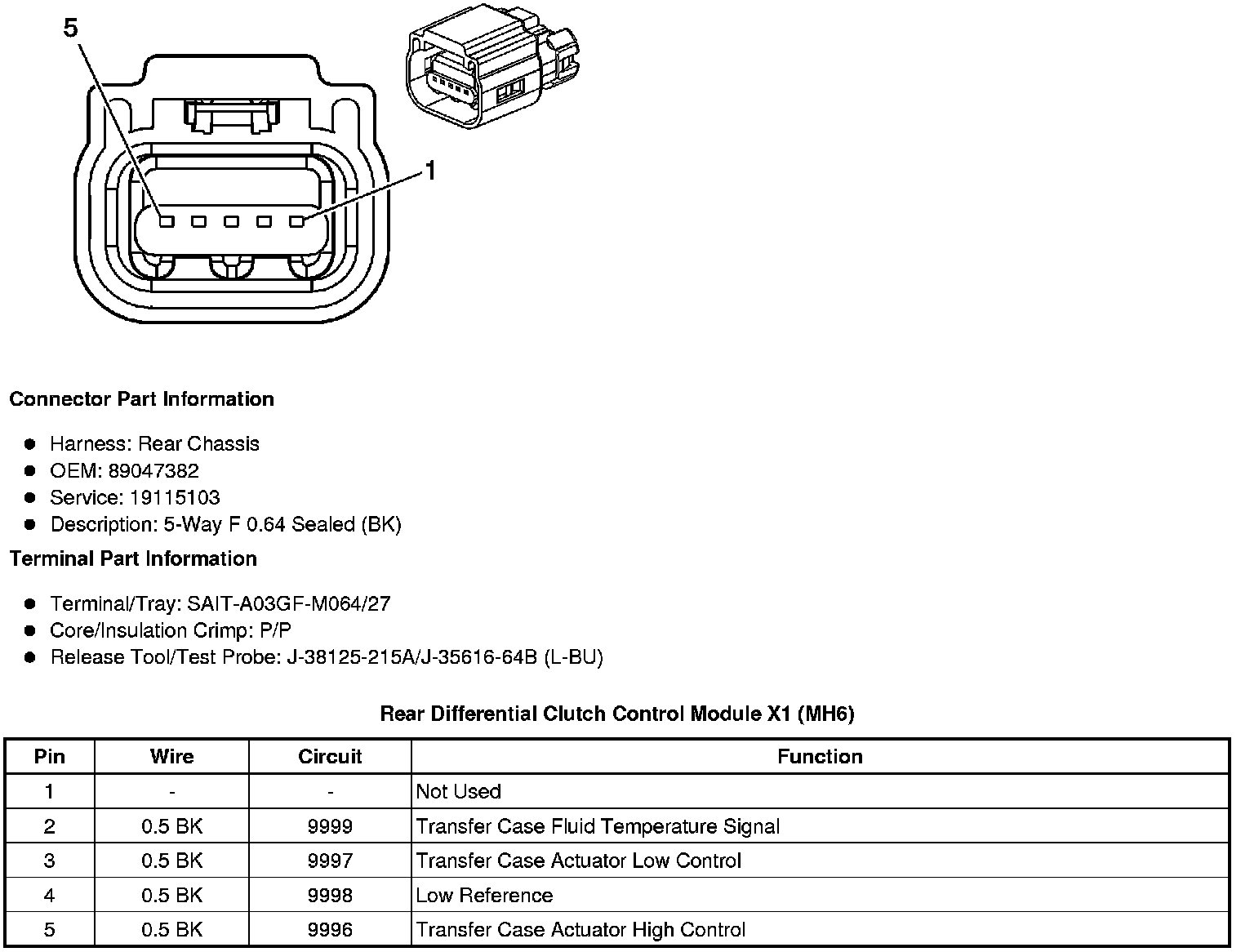

Rear Differential Clutch Control Module X1 (MH6)

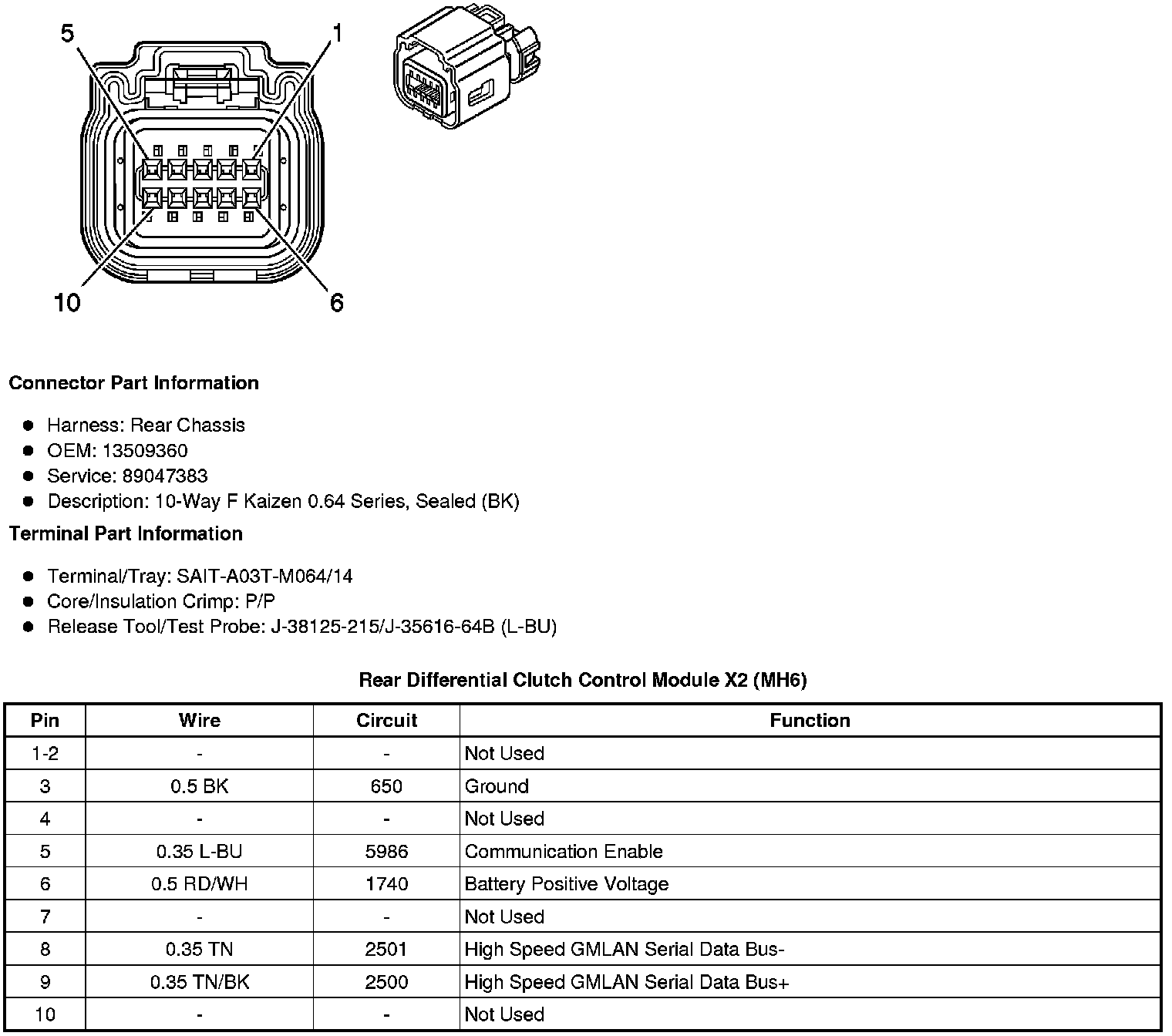

Rear Differential Clutch Control Module X2 (MH6)
