Trailer Brake Control Module
Component Connector End Views

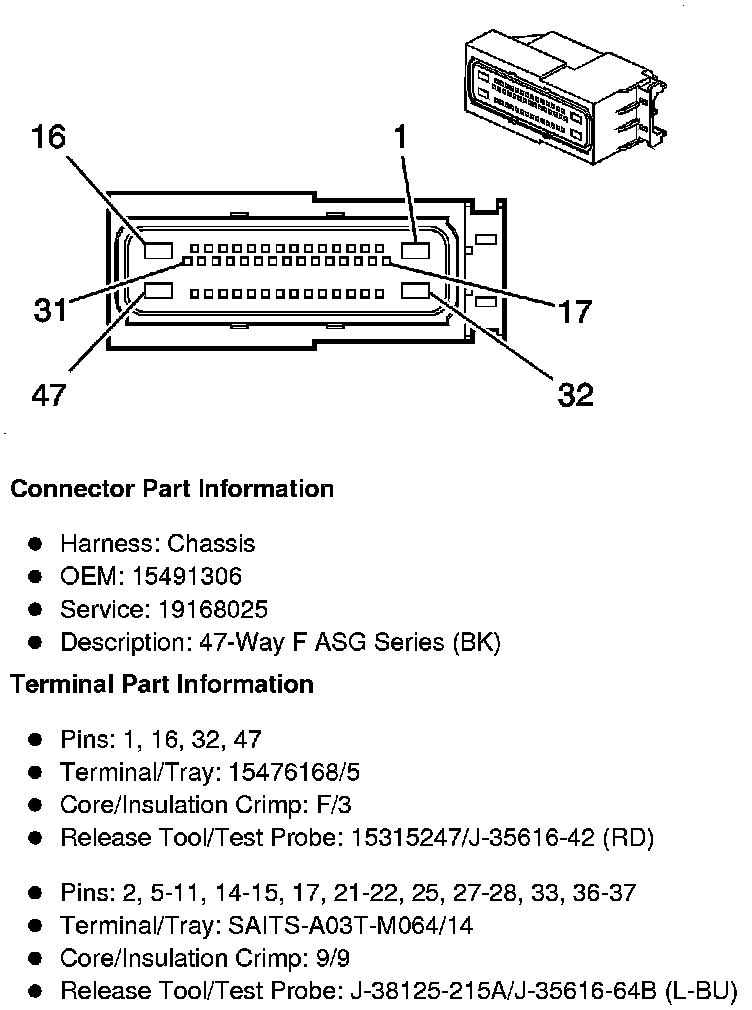

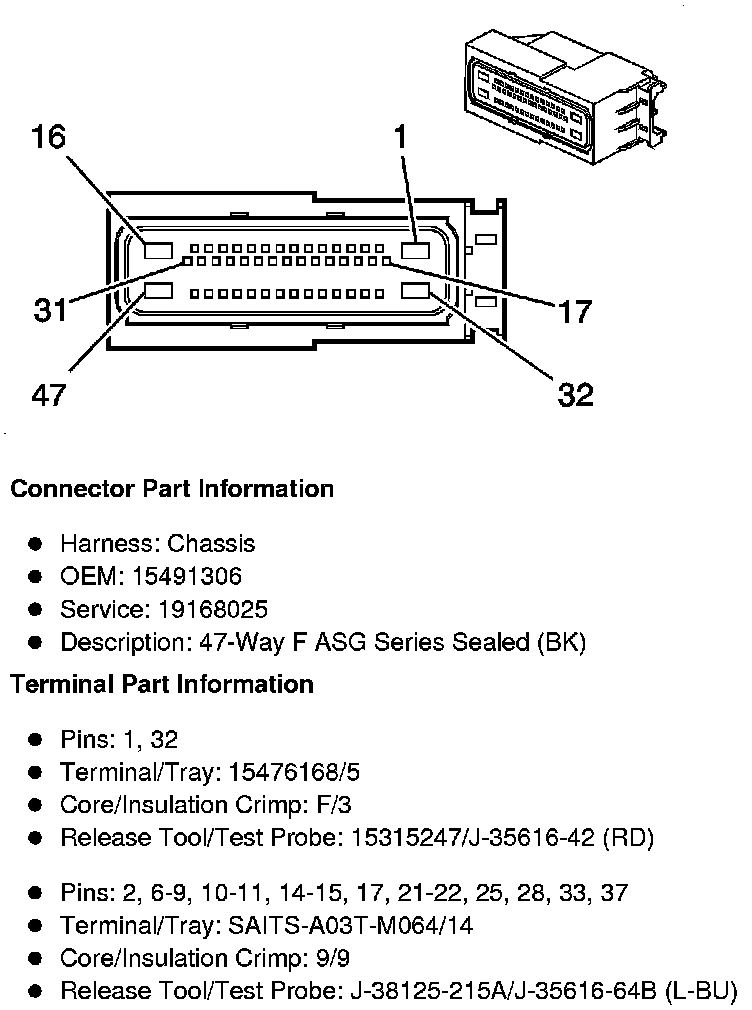

Trailer Brake Control Module (JL1 except 31 Series)

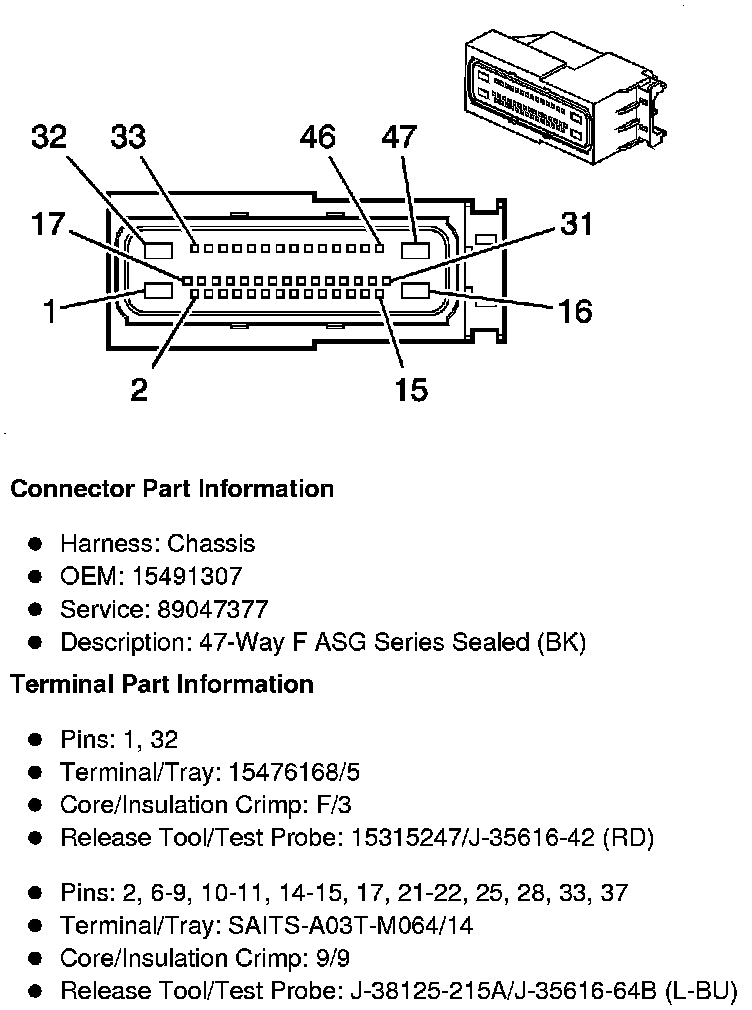

Trailer Brake Control Module (JL1 with 31 Series)
Fuel Pump/Trailer Brake Control Module (Gas with JL1 and except LU3, LY6 or LY6)
Component Connector End Views
Trailer Brake Control Module (JL1 except 31 Series)

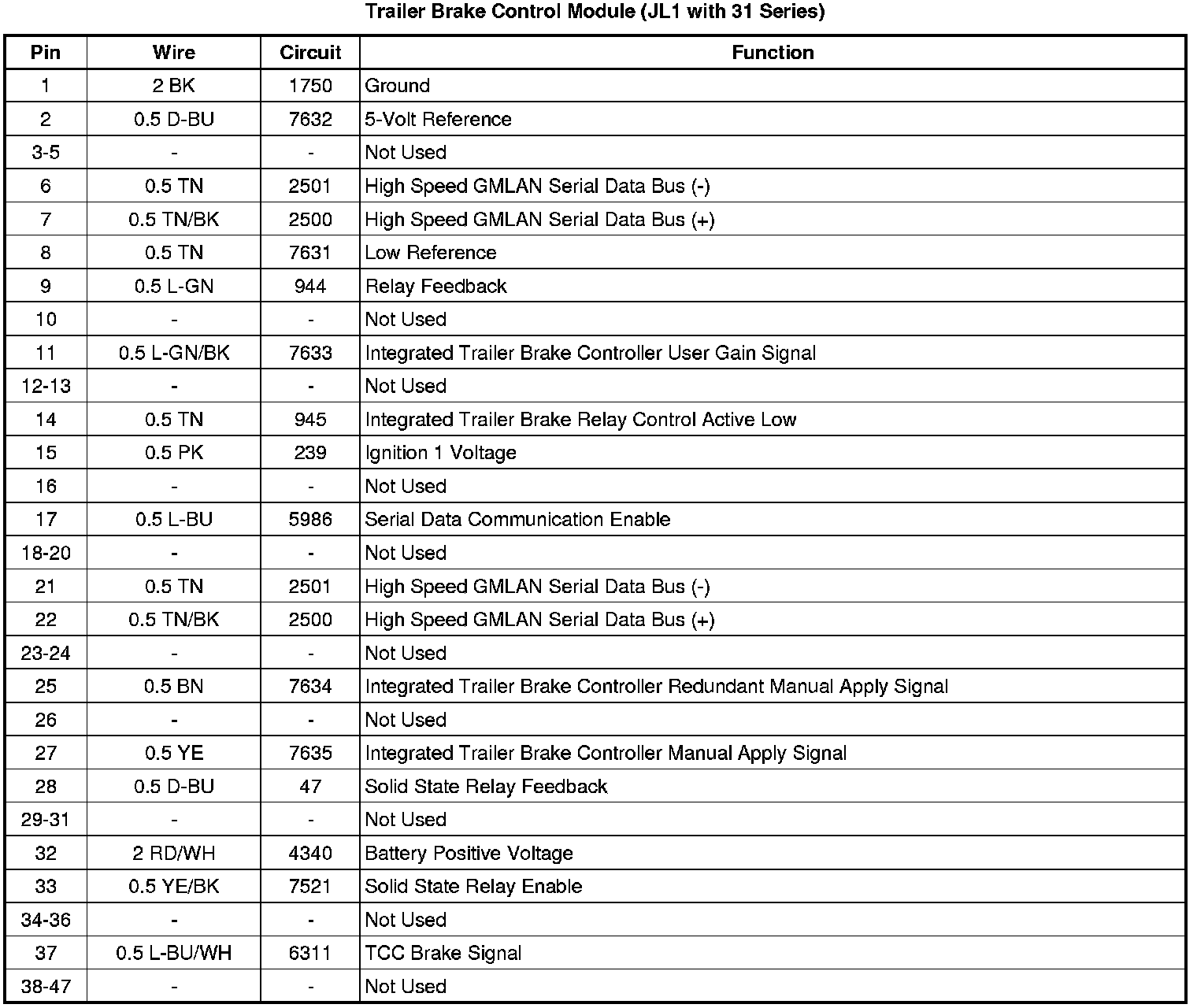

Trailer Brake Control Module (JL1 with 31 Series)

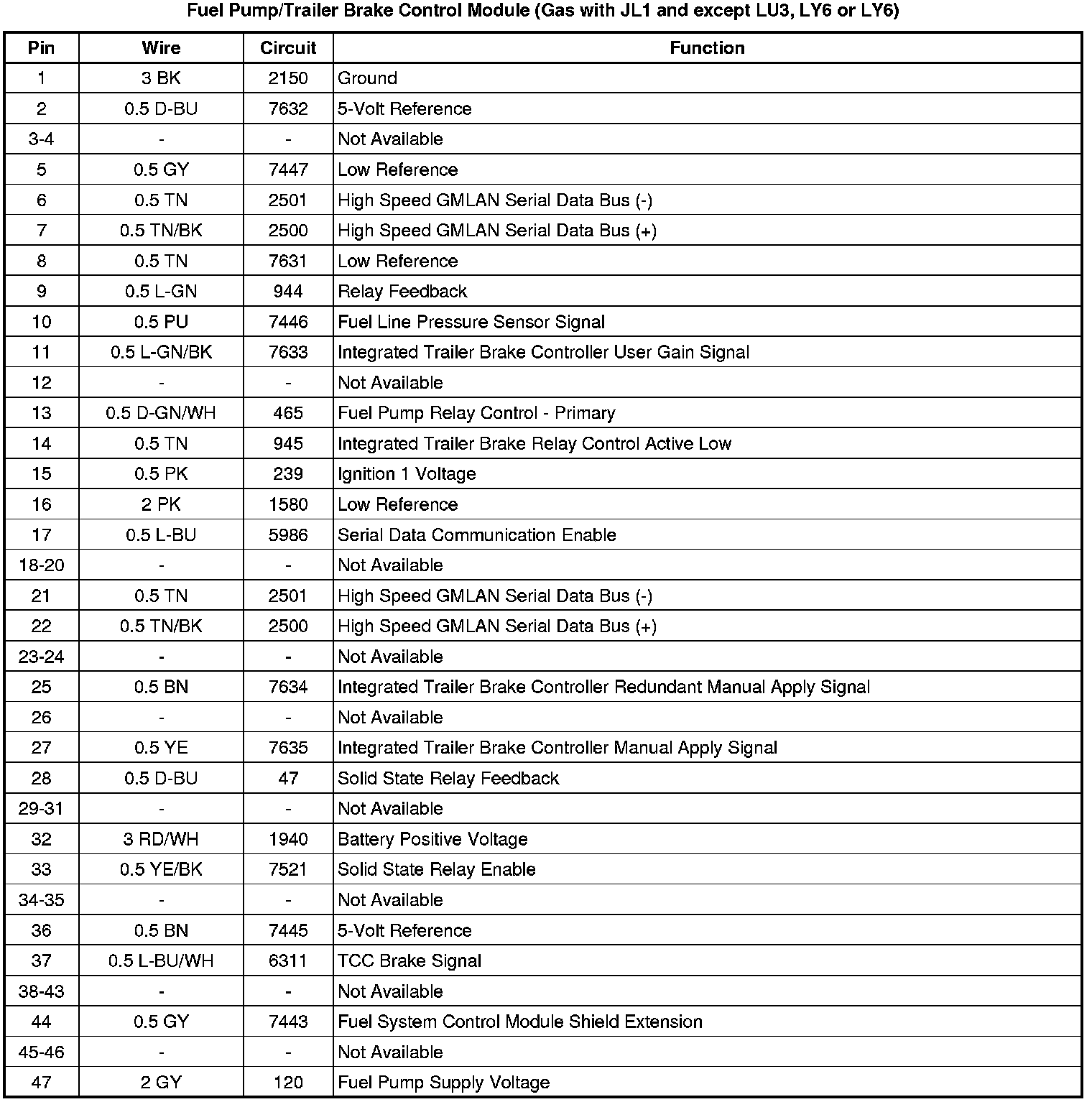

Fuel Pump/Trailer Brake Control Module (Gas with JL1 and except LU3, LY6 or LY6)
