Exterior View Display Module




Component Connector End Views

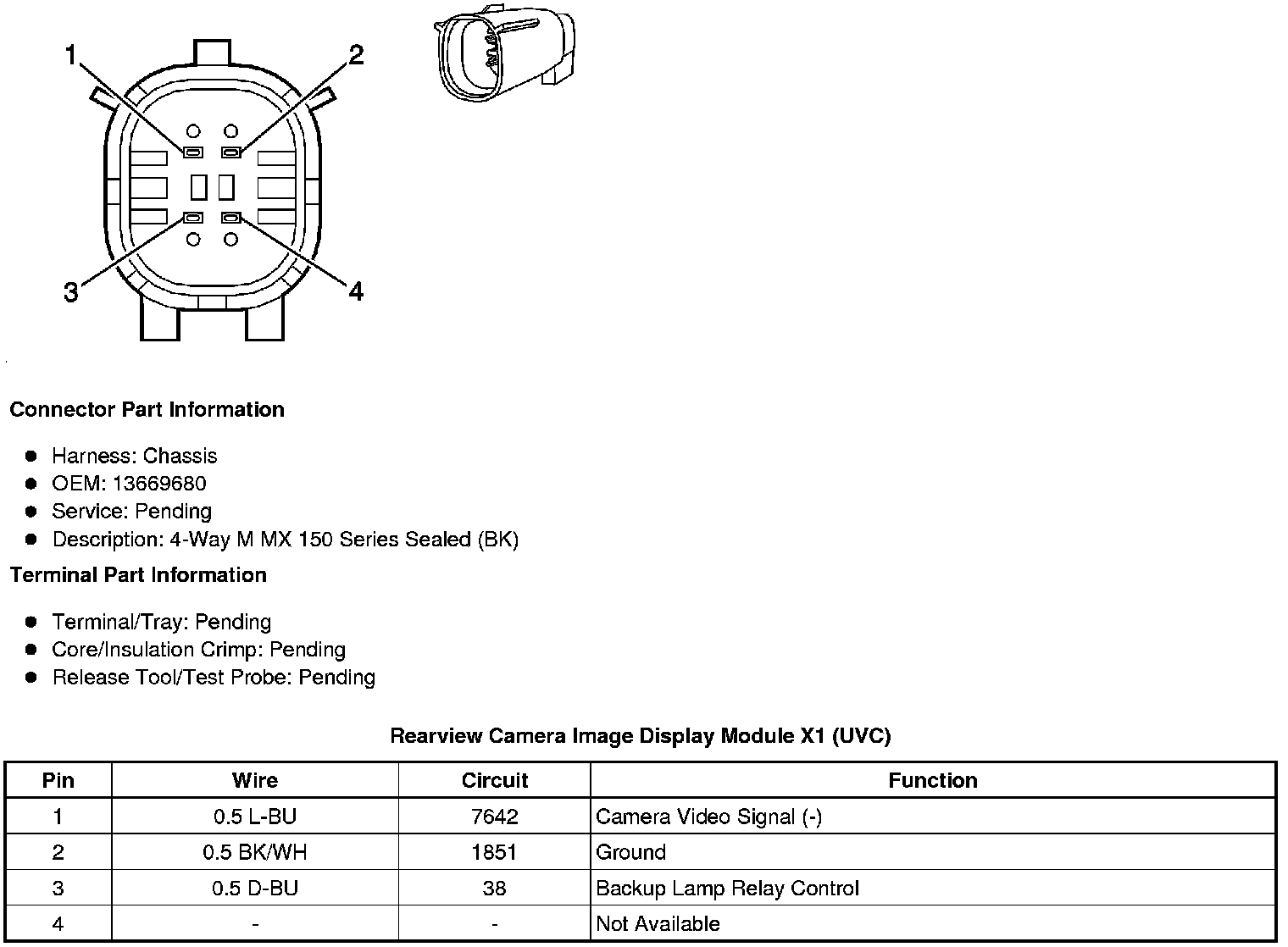

Rearview Camera Image Display Module X1 (UVC)

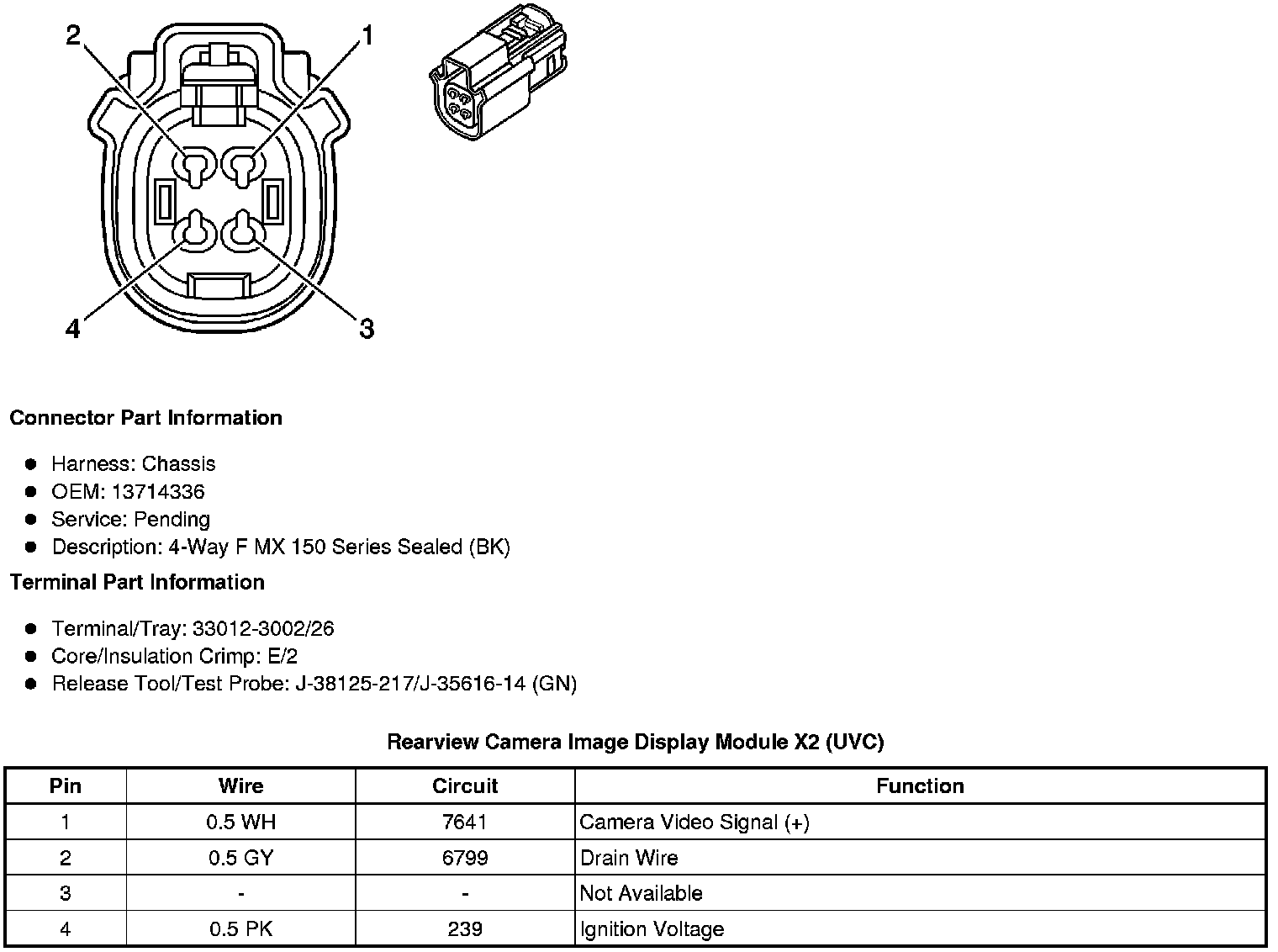

Rearview Camera Image Display Module X2 (UVC)
