Electronic Brake Control Module

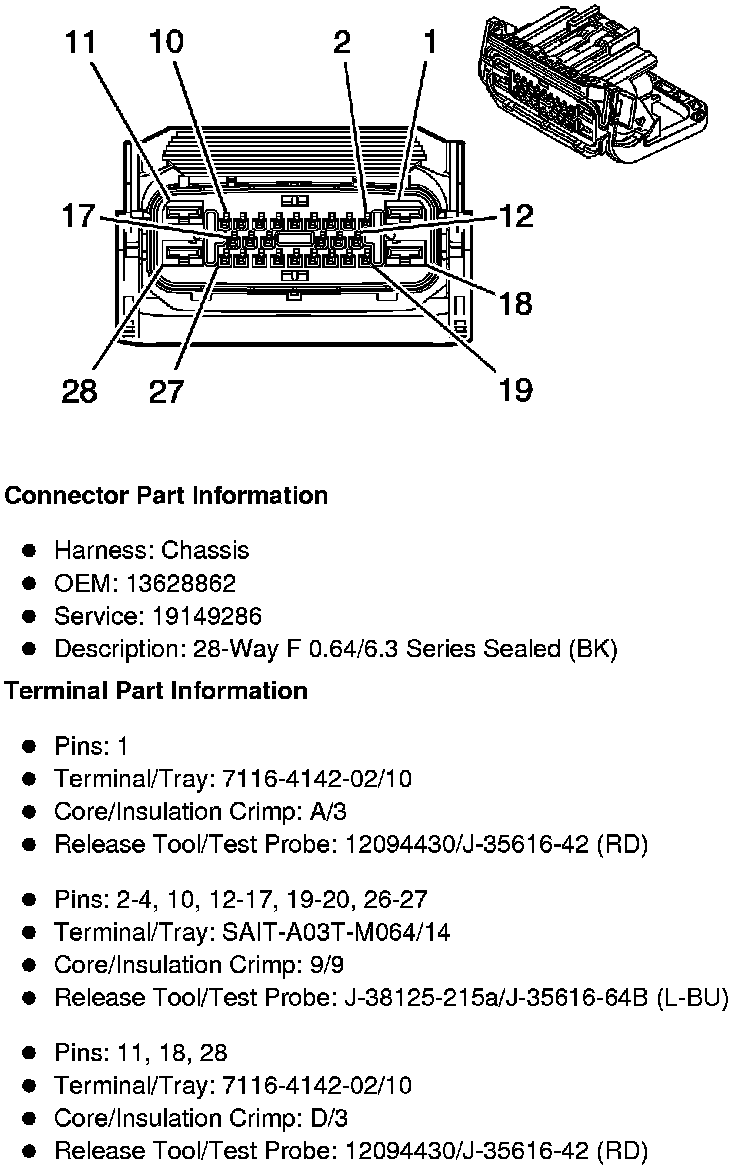

Component Connector End Views

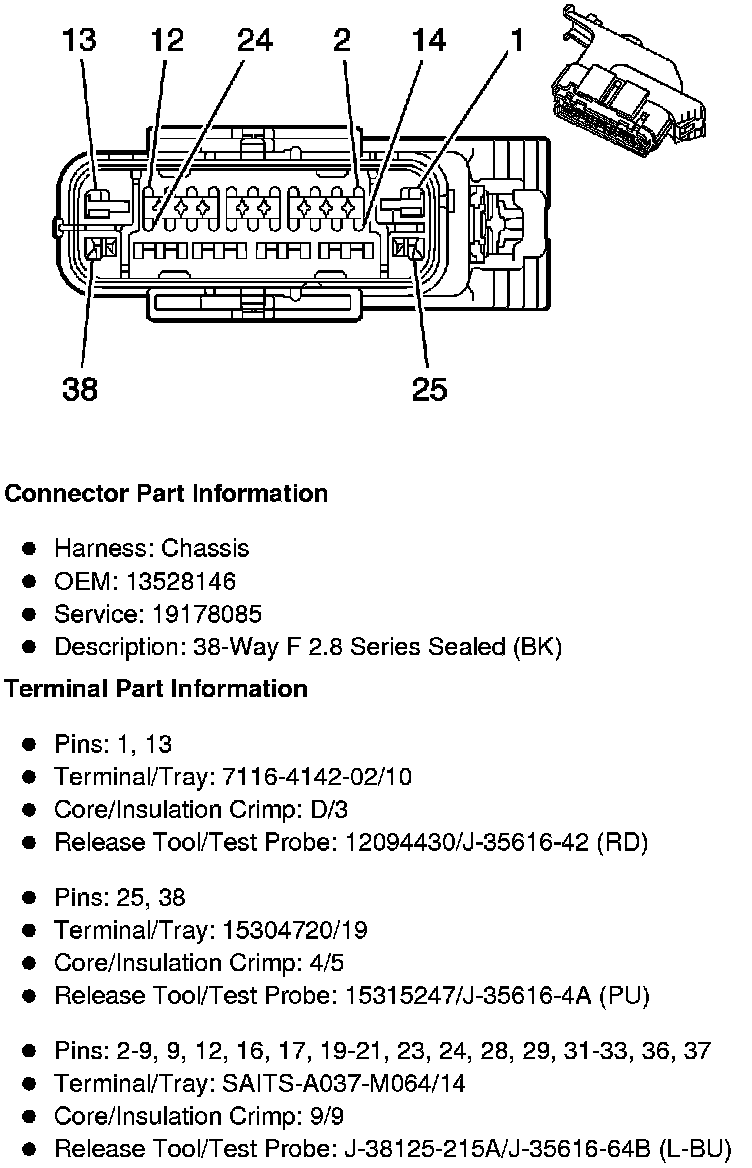

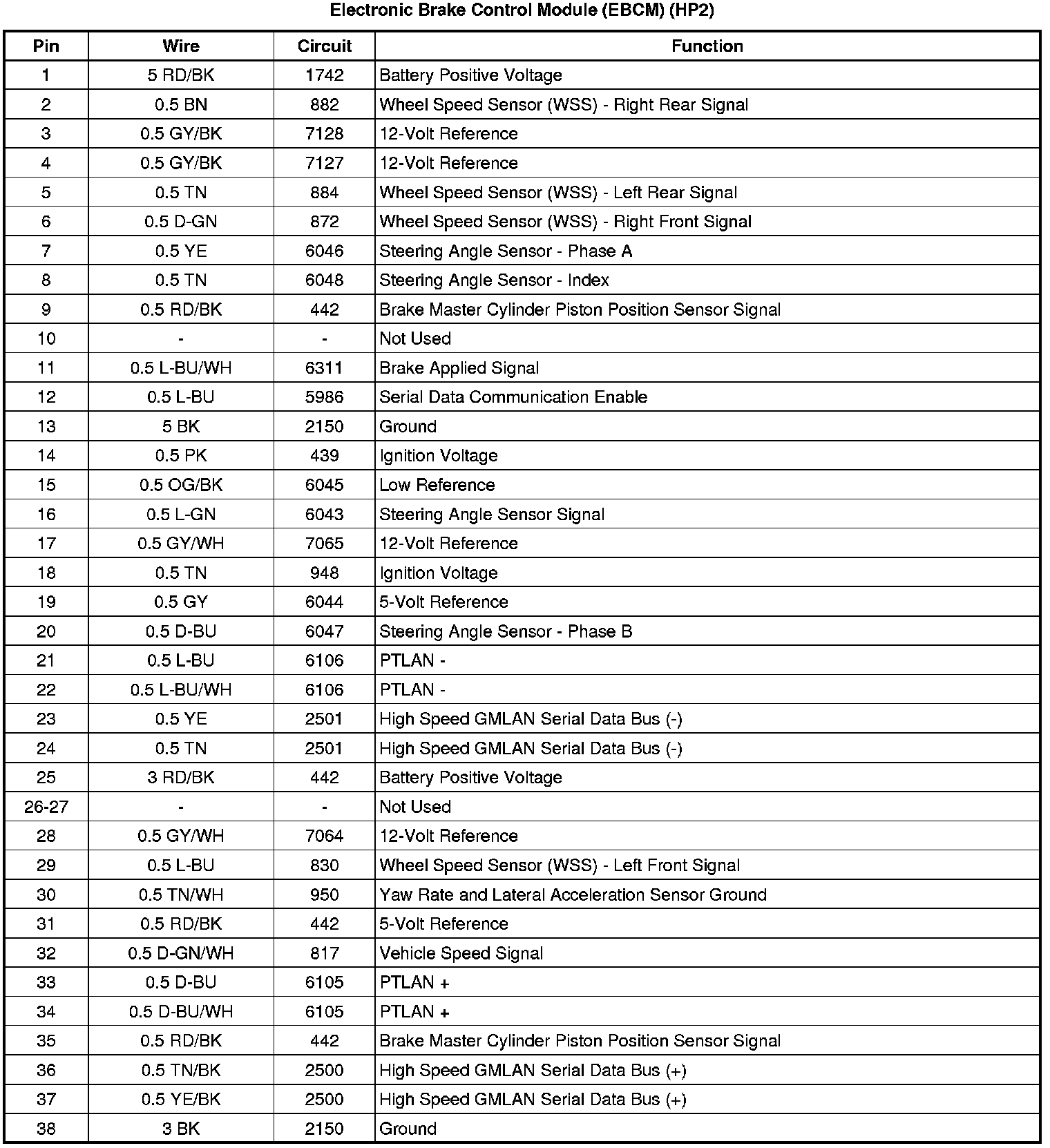

Electronic Brake Control Module (EBCM) (HP2)

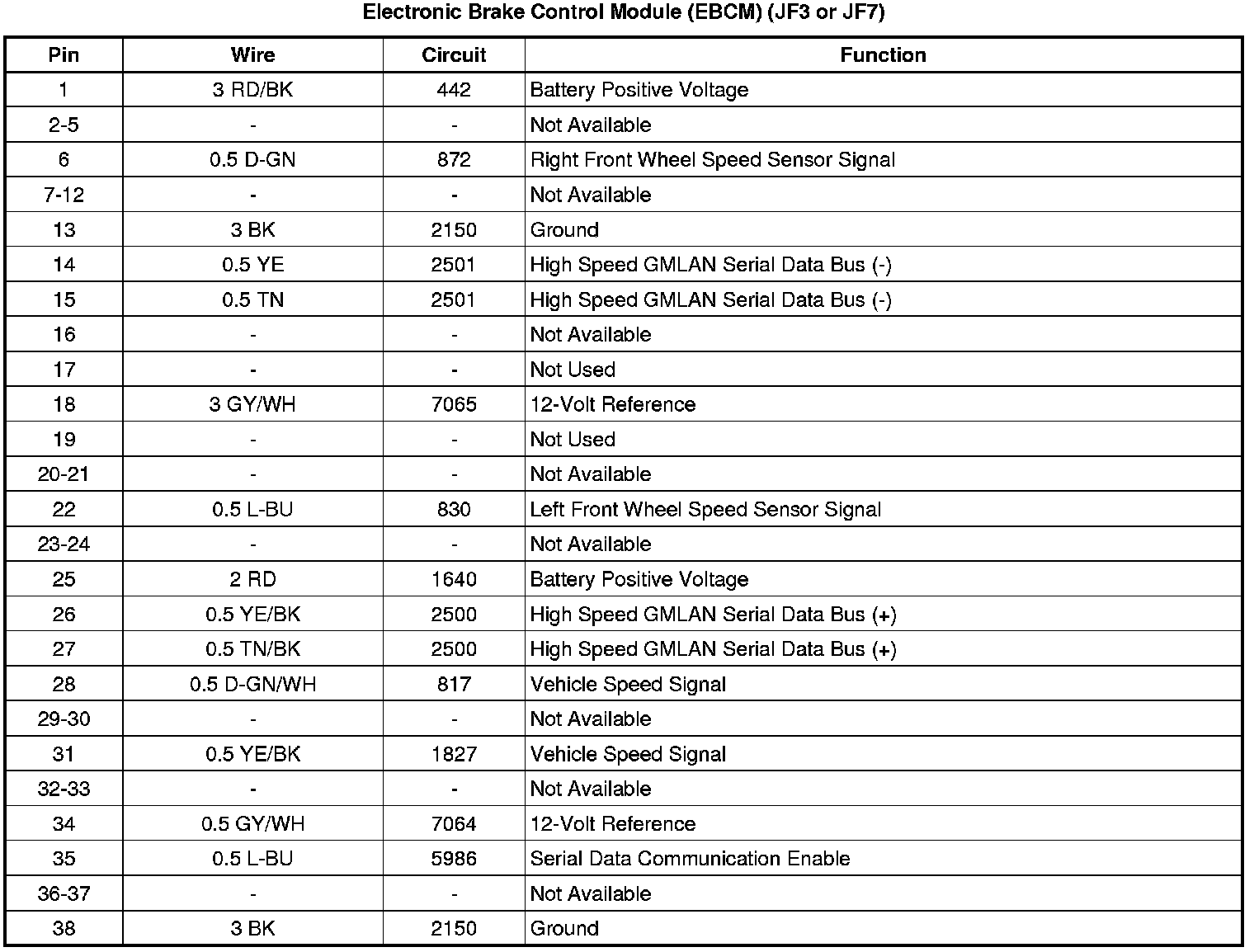

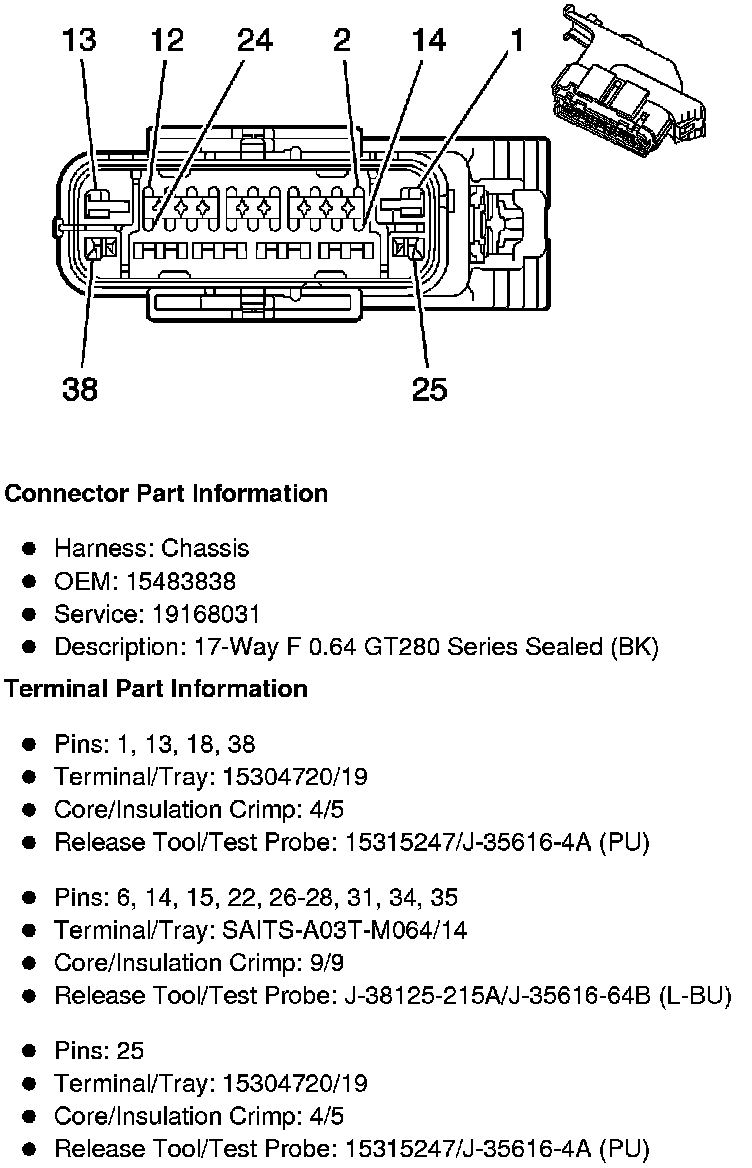

Electronic Brake Control Module (EBCM) (JF3 or JF7)

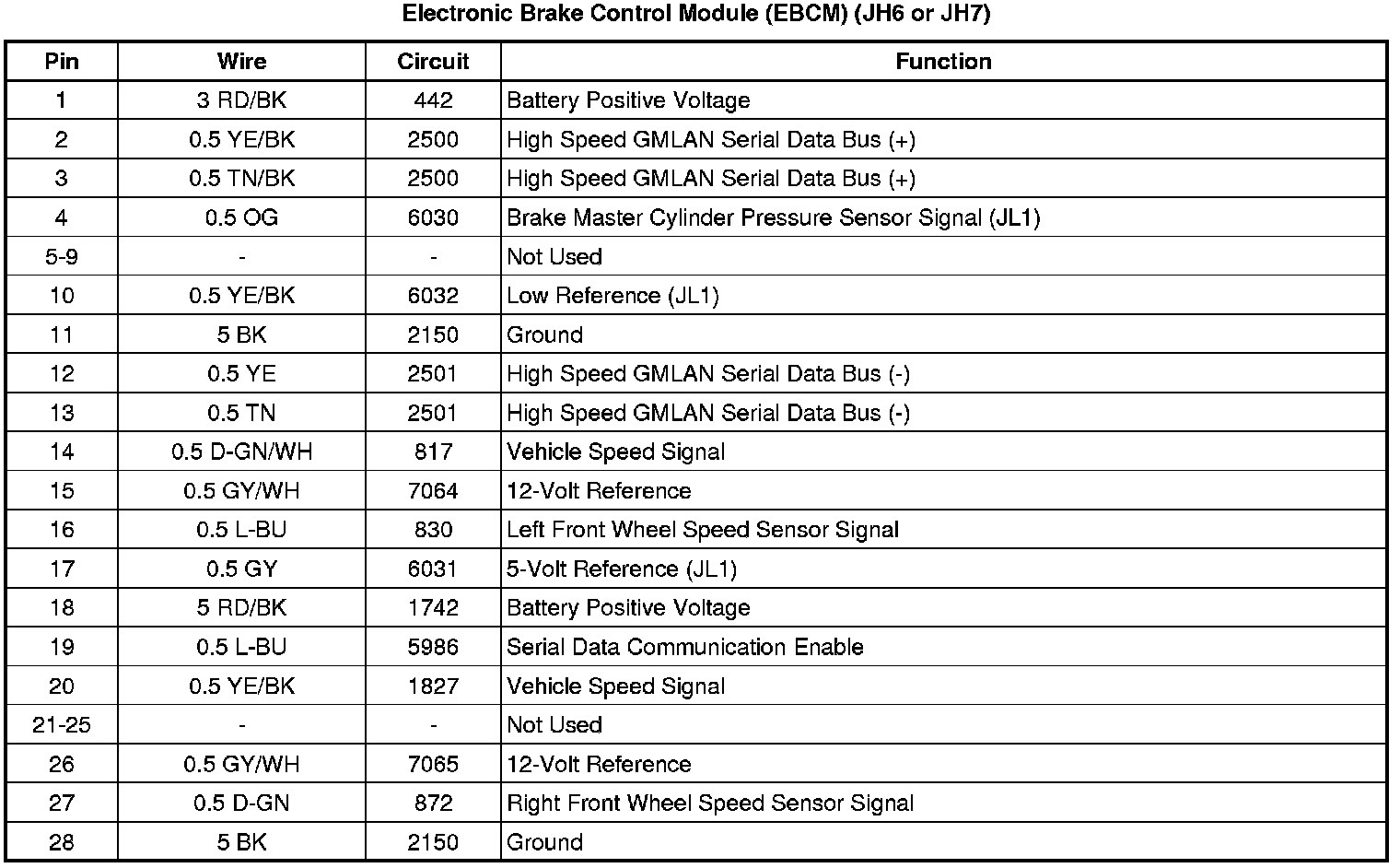

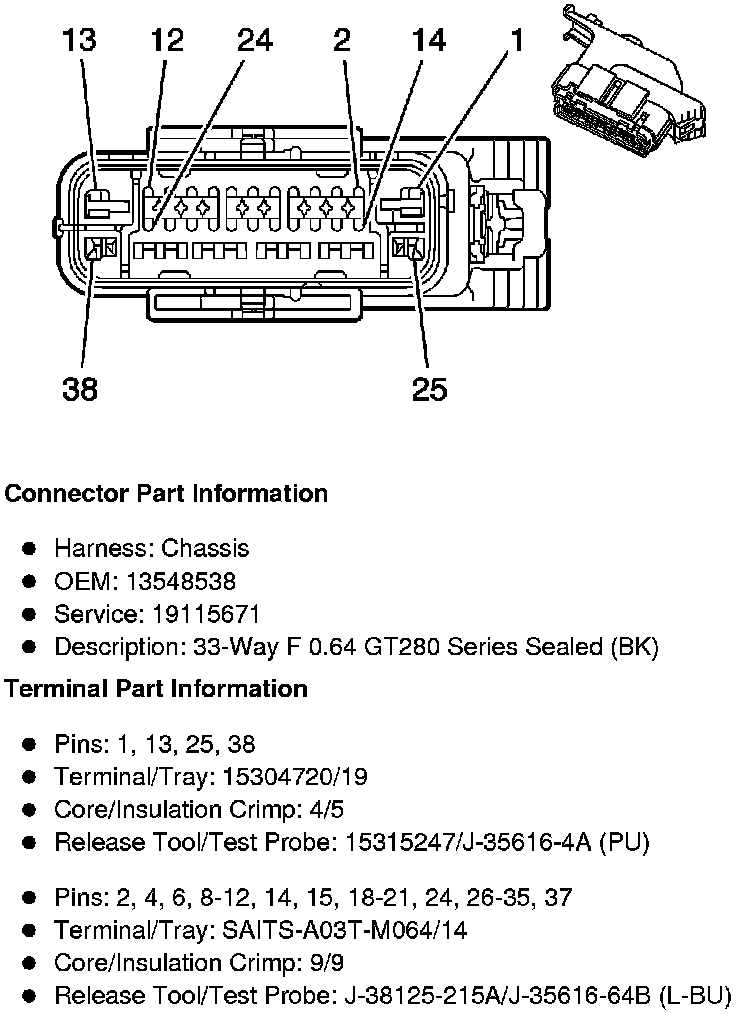

Electronic Brake Control Module (EBCM) (JH6 or JH7)

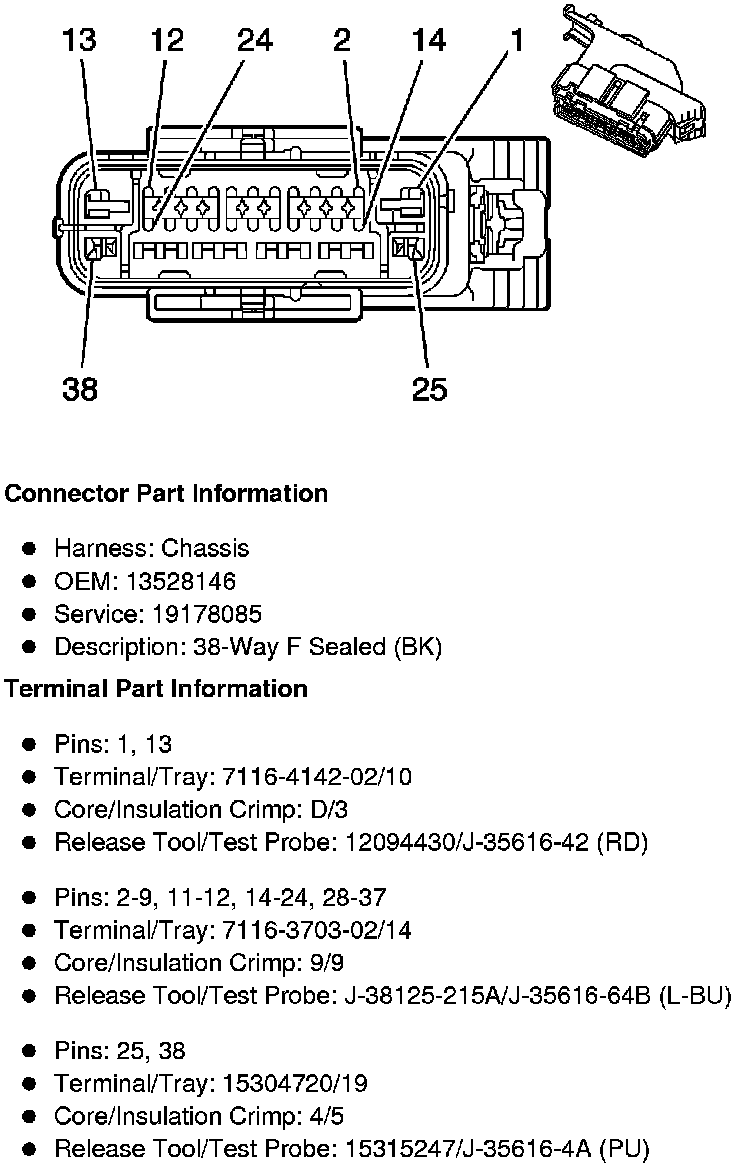

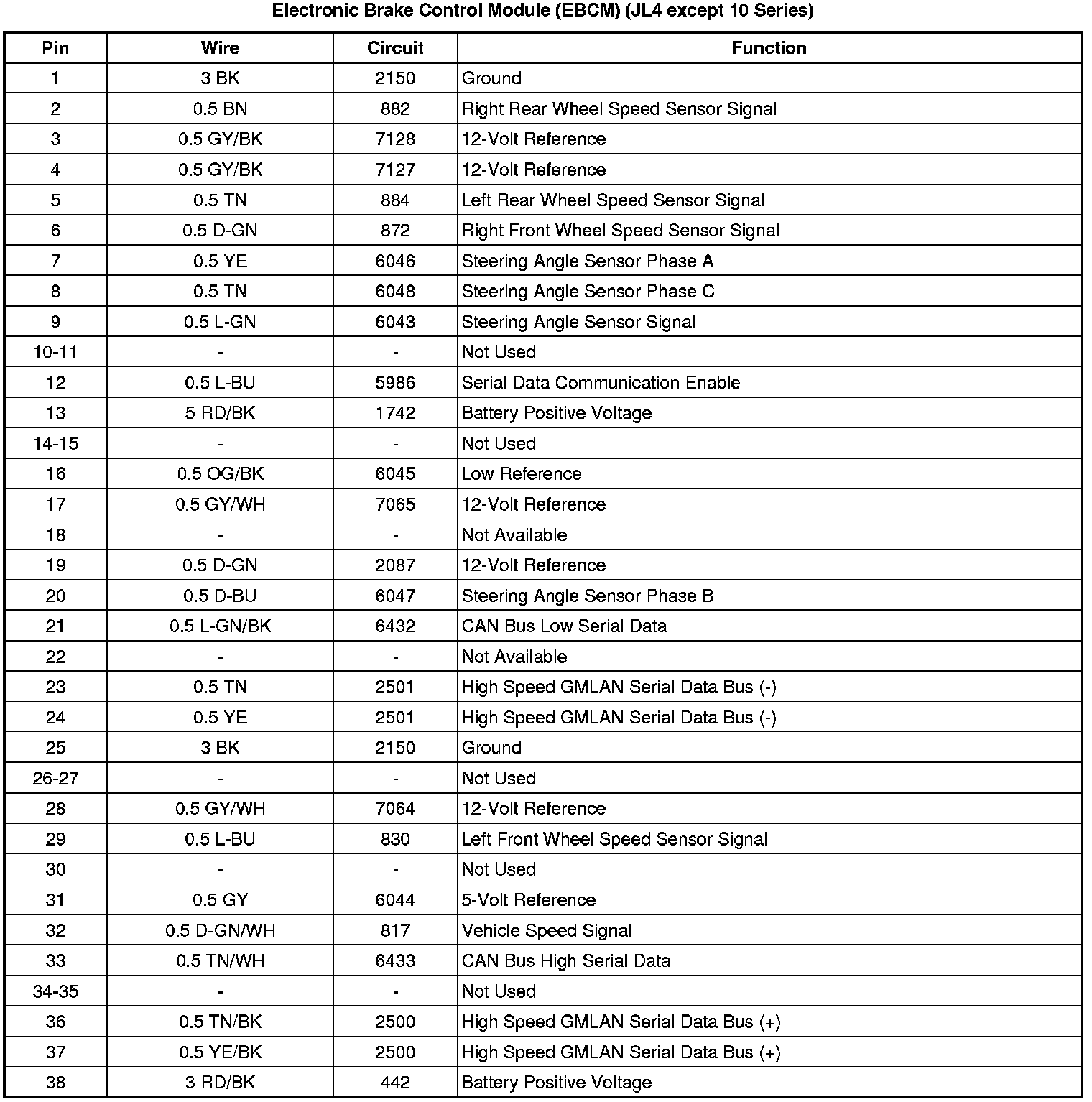

Electronic Brake Control Module (EBCM) (JL4 except 10 Series)

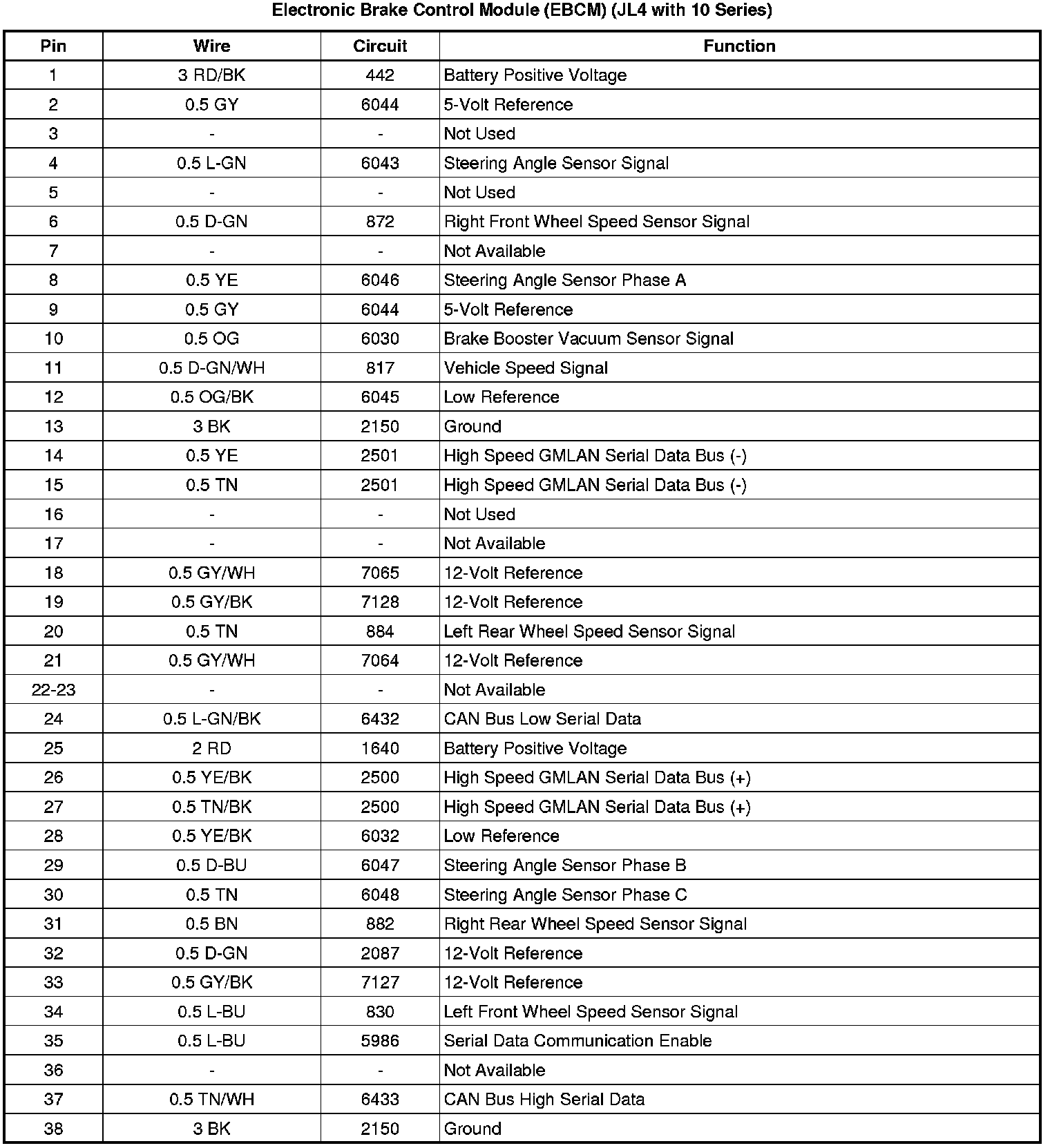

Electronic Brake Control Module (EBCM) (JL4 with 10 Series)
