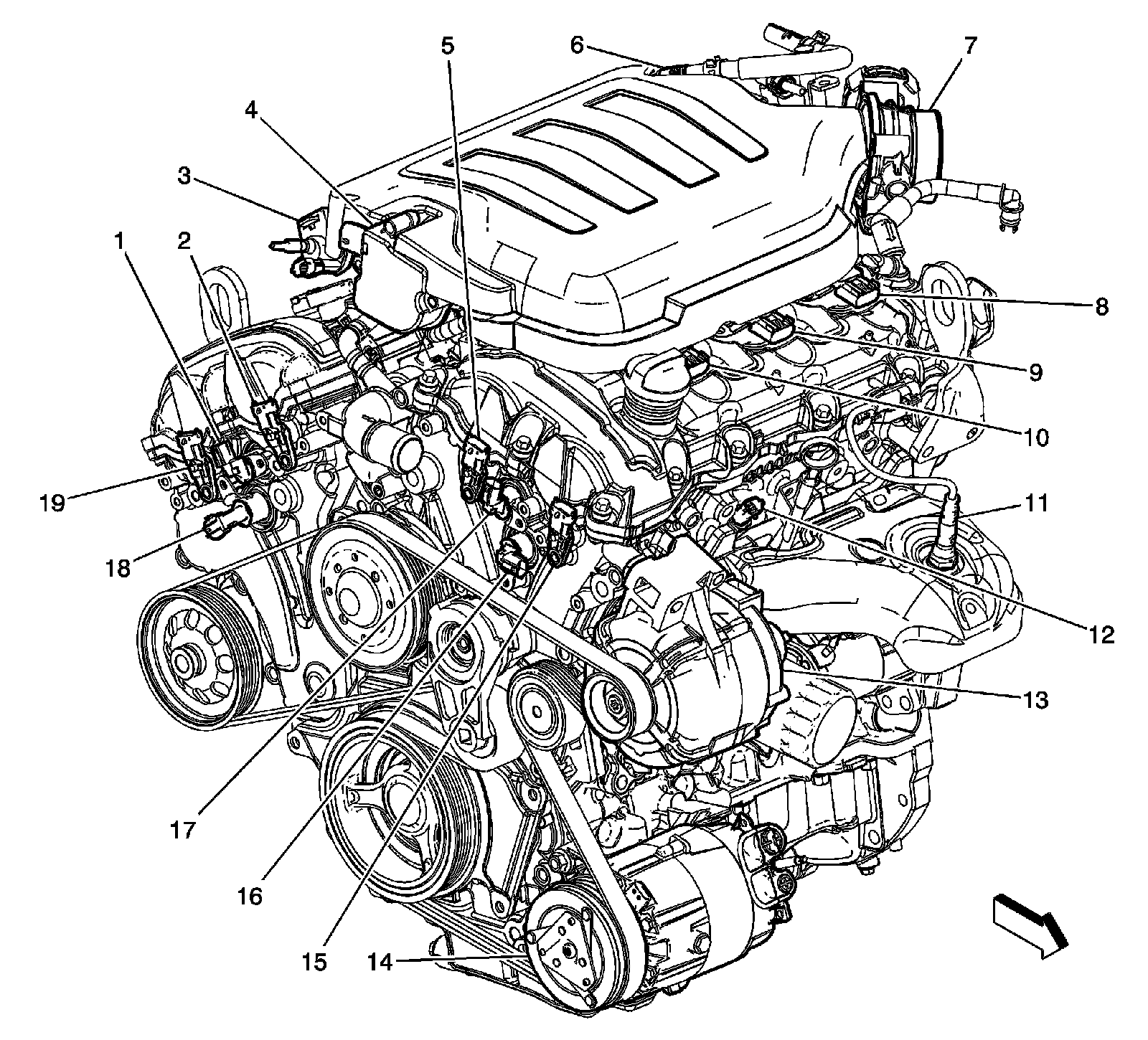

Front and Right Side of the Engine Components (LY7)




1 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Intake
2 - Camshaft Position (CMP) Sensor - Bank 1 Intake
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Intake Manifold Tuning (IMT) Solenoid Valve
5 - Camshaft Position (CMP) Sensor - Bank 2 Intake
6 - Manifold Absolute Pressure (MAP) Sensor
7 - Throttle Body
8 - Ignition Coil 6
9 - Ignition Coil 4
10 - Ignition Coil 2
11 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
12 - Engine Coolant Temperature (ECT) Sensor
13 - Generator
14 - A/C Compressor Clutch
15 - Camshaft Position (CMP) Sensor - Bank 2 Exhaust
16 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Exhaust
17 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 2 Intake
18 - Camshaft Position (CMP) Actuator Solenoid Valve - Bank 1 Exhaust
19 - Camshaft Position (CMP) Sensor - Bank 1 Exhaust
