Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Removal Procedure

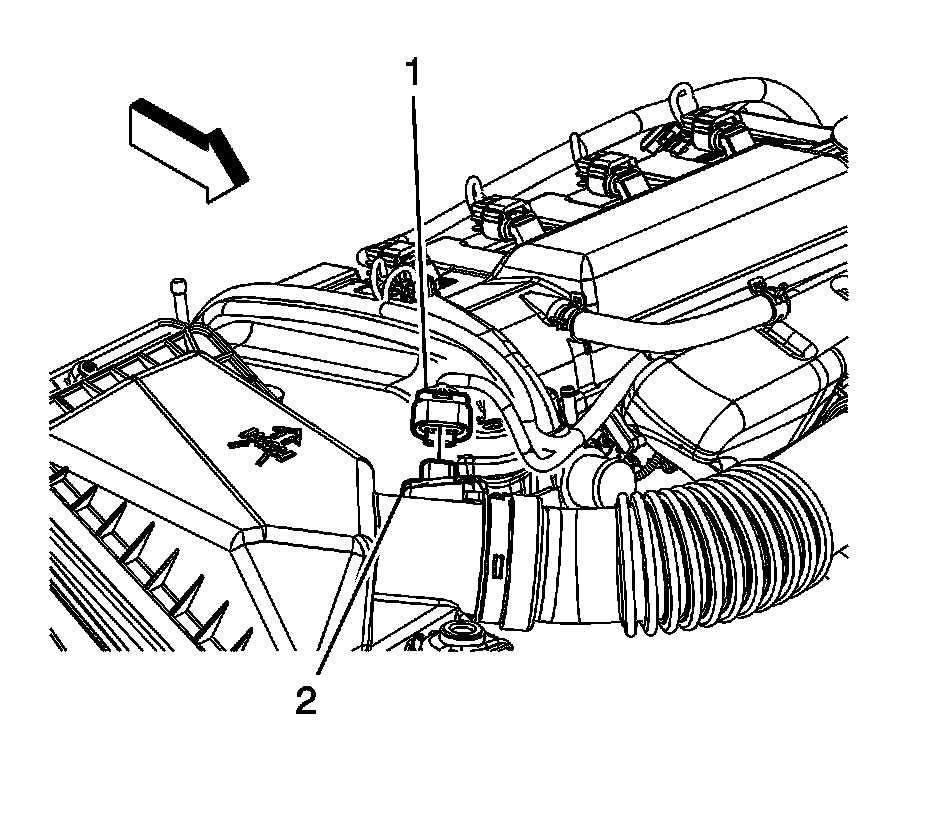

1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF)/intake air temperature (IAT) sensor (2).

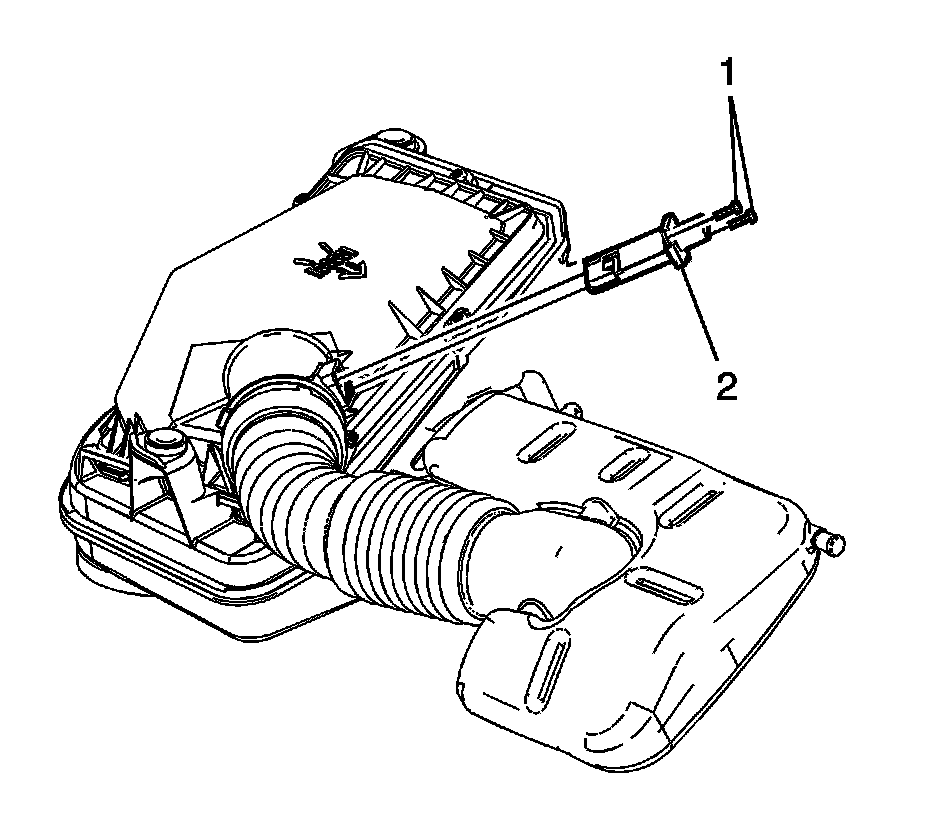

2. Remove the MAF/IAT sensor screws (1).
3. Remove the MAF/IAT sensor (2).

Installation Procedure




1. Install the MAF/IAT sensor (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the MAF/IAT sensor screws (1) and tighten to 2.5 Nm (22 lb in).




3. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor (2).
