Steering Control Module




Component Connector End Views

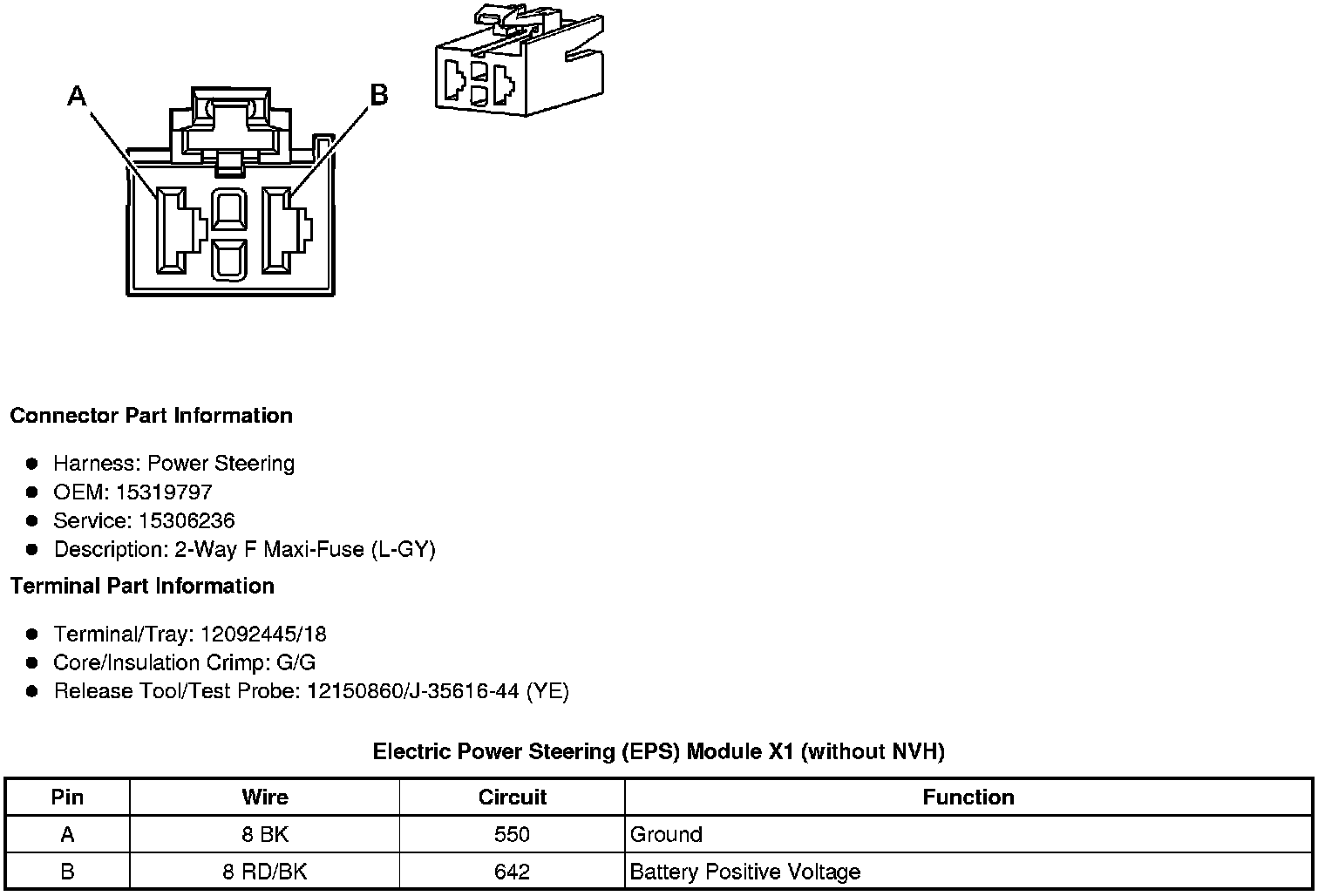

Electric Power Steering (EPS) Module X1 (without NVH)

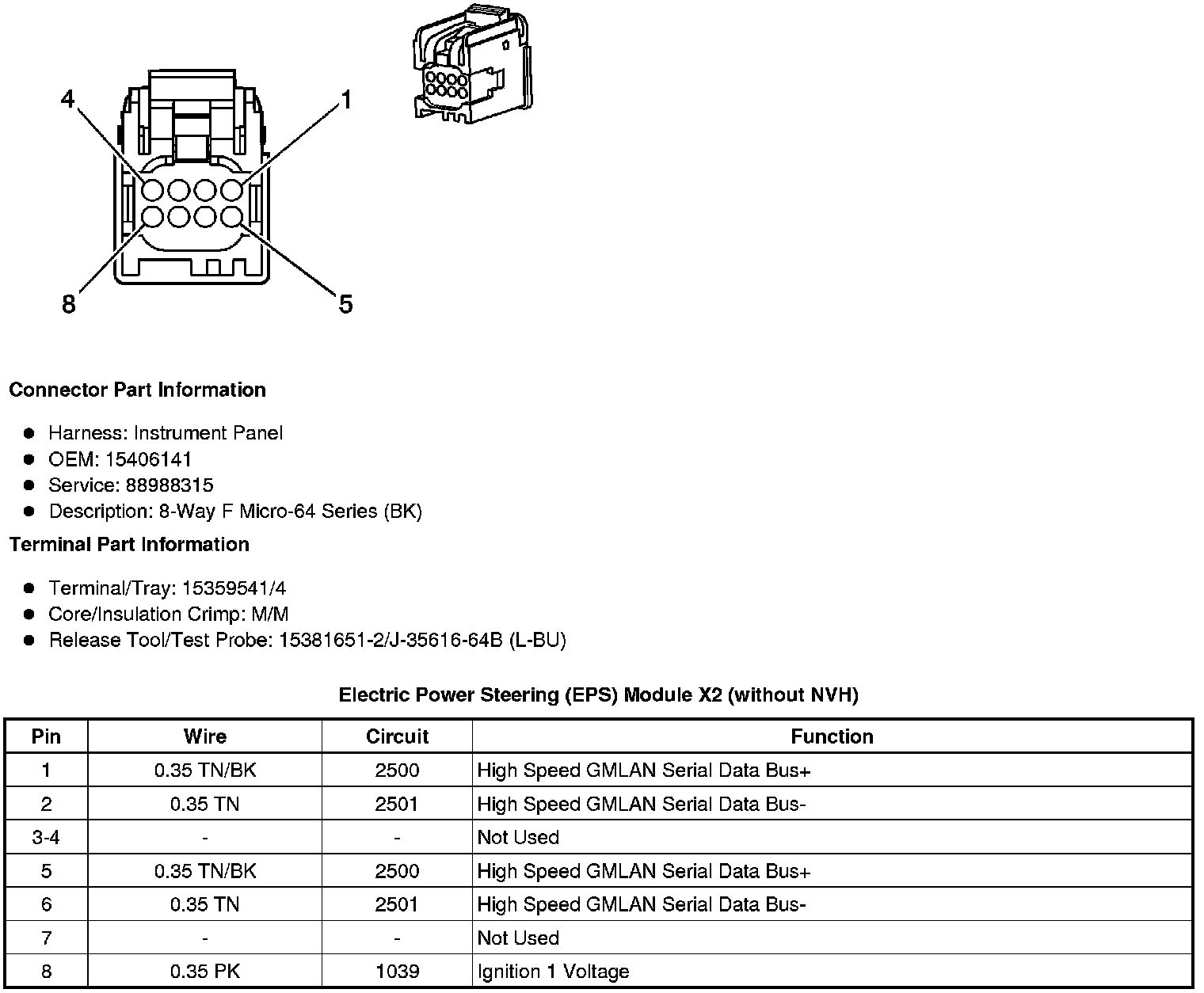

Electric Power Steering (EPS) Module X2 (without NVH)

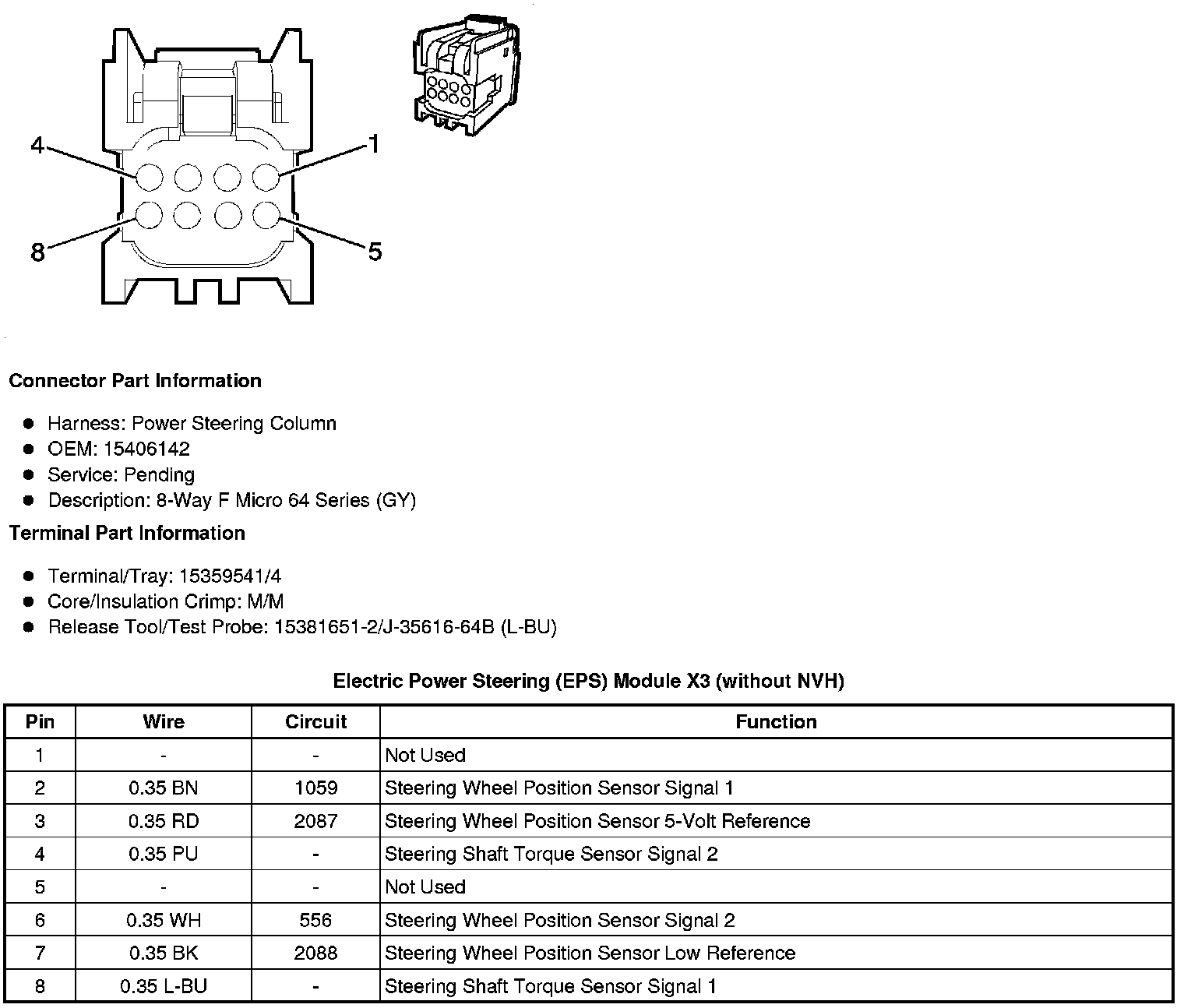

Electric Power Steering (EPS) Module X3 (without NVH)
