Power Distribution Module




Component Connector End Views

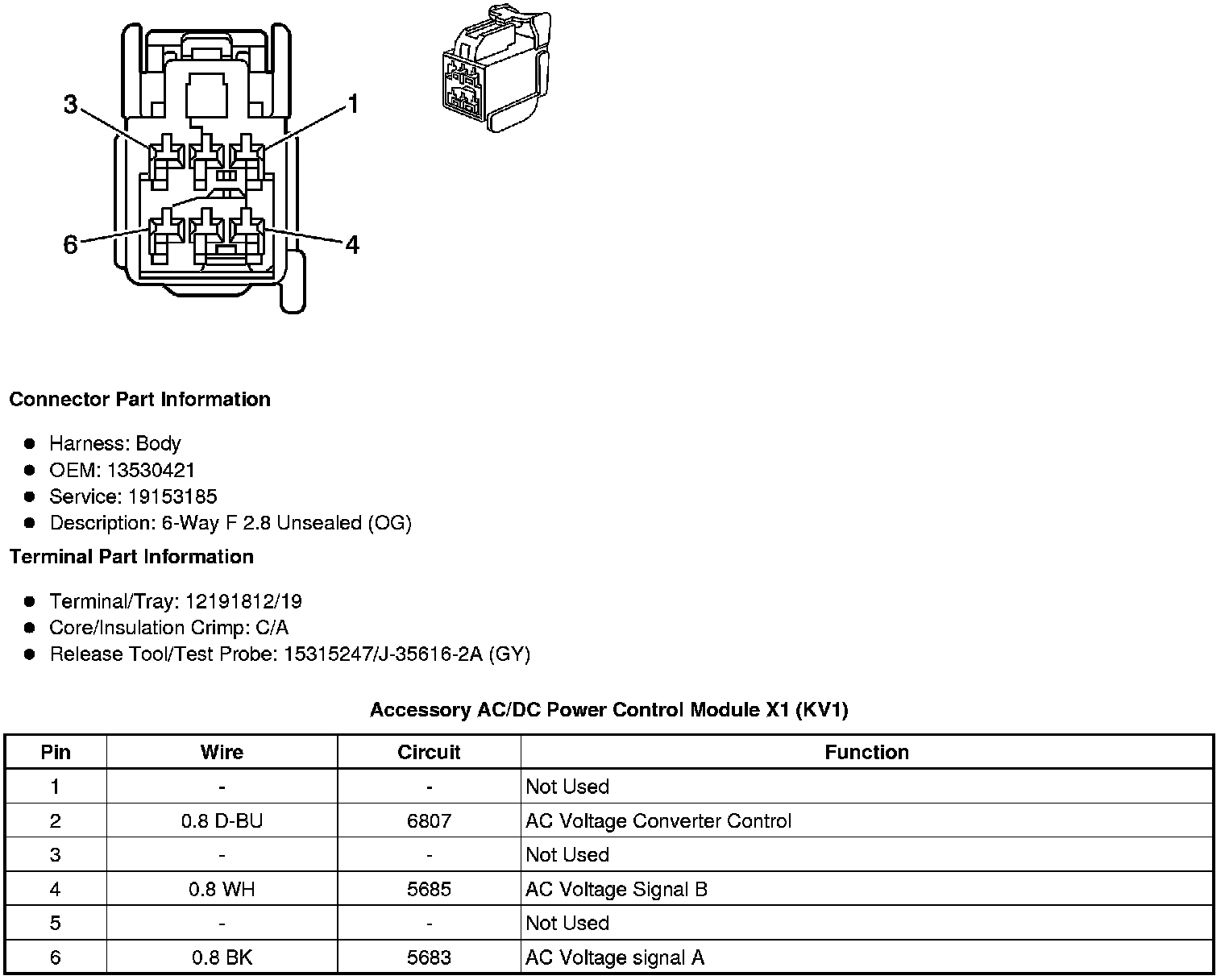

Accessory AC/DC Power Control Module X1 (KV1)

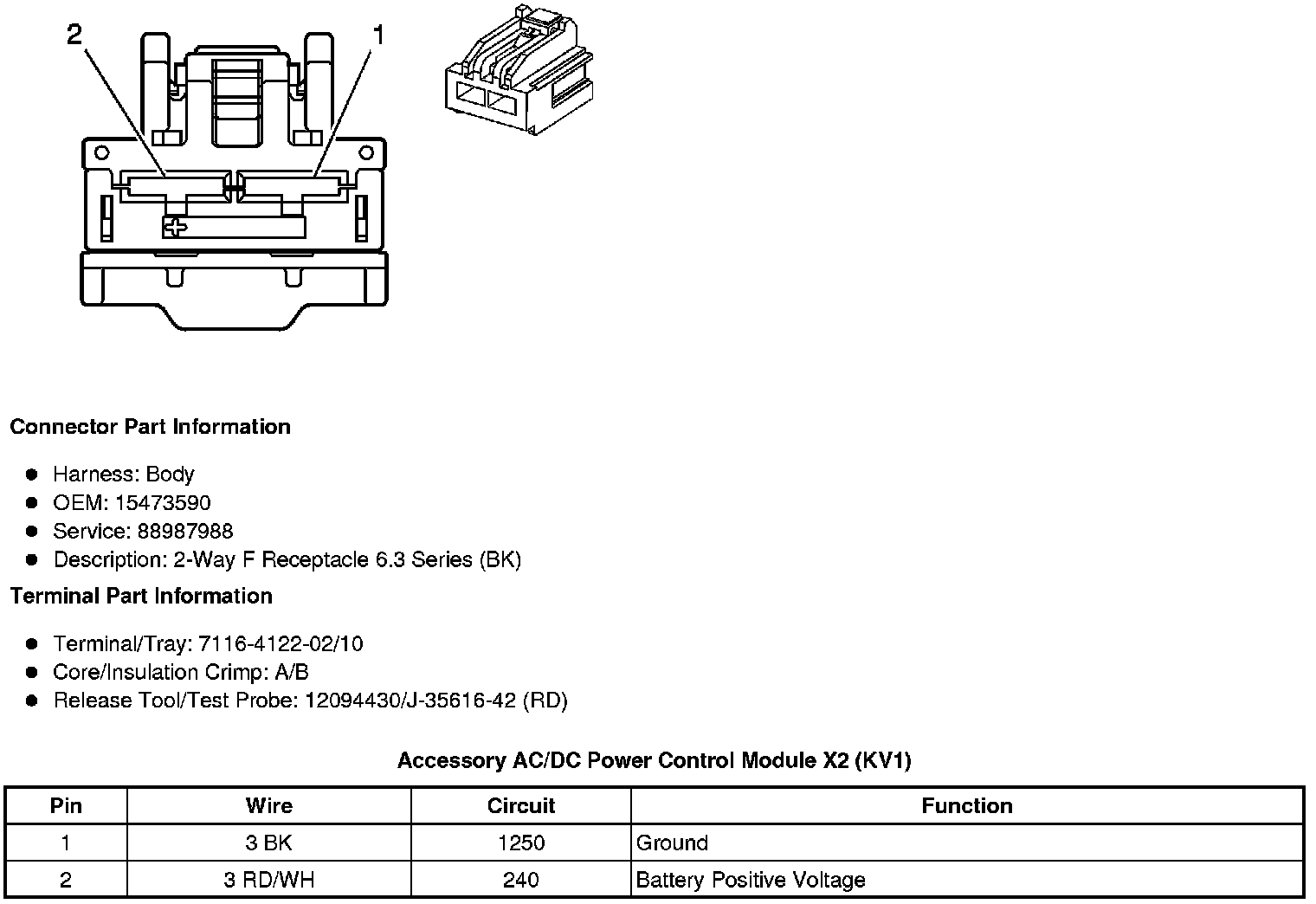

Accessory AC/DC Power Control Module X2 (KV1)
