Engine Control Module




Component Connector End Views

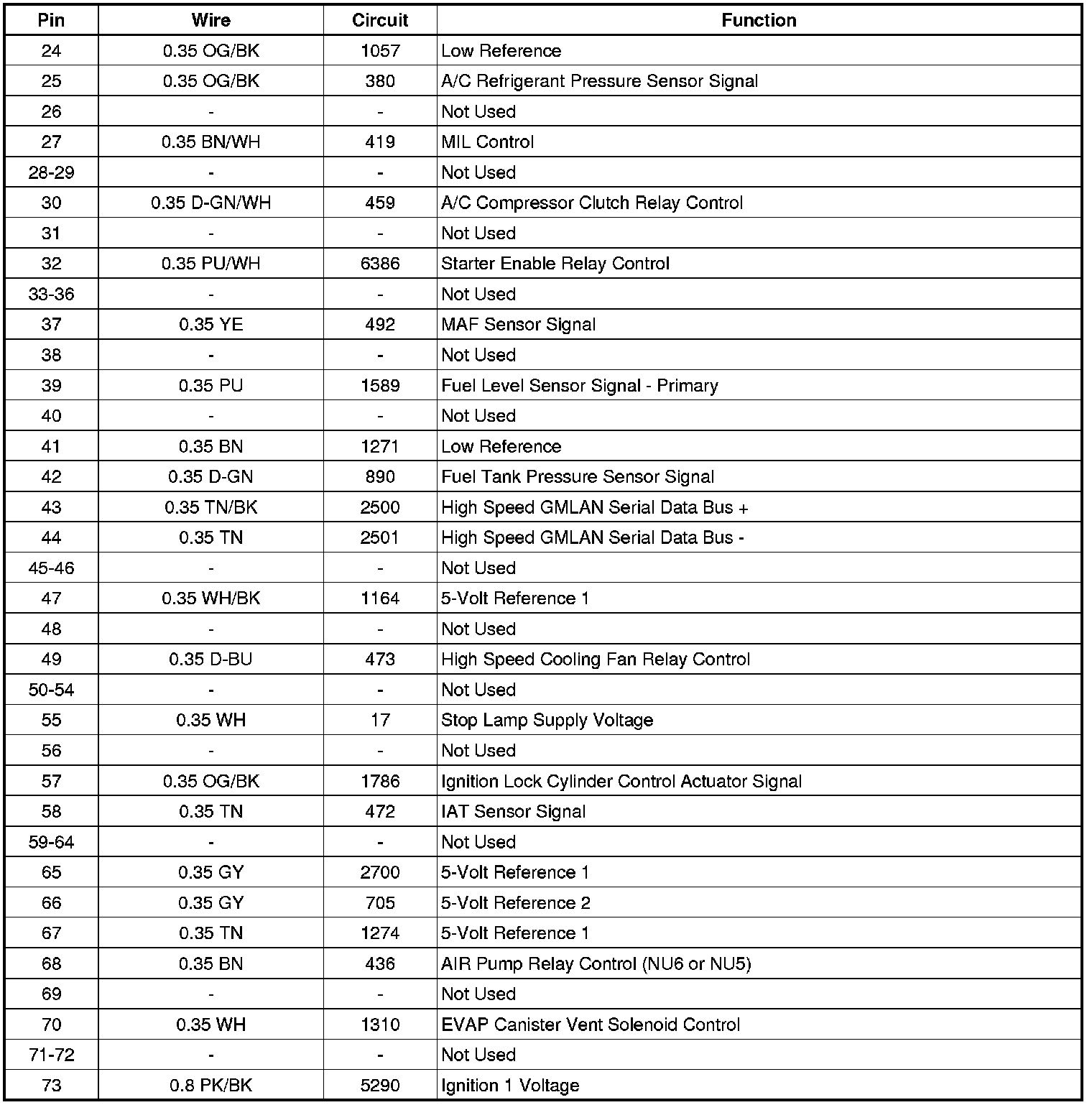

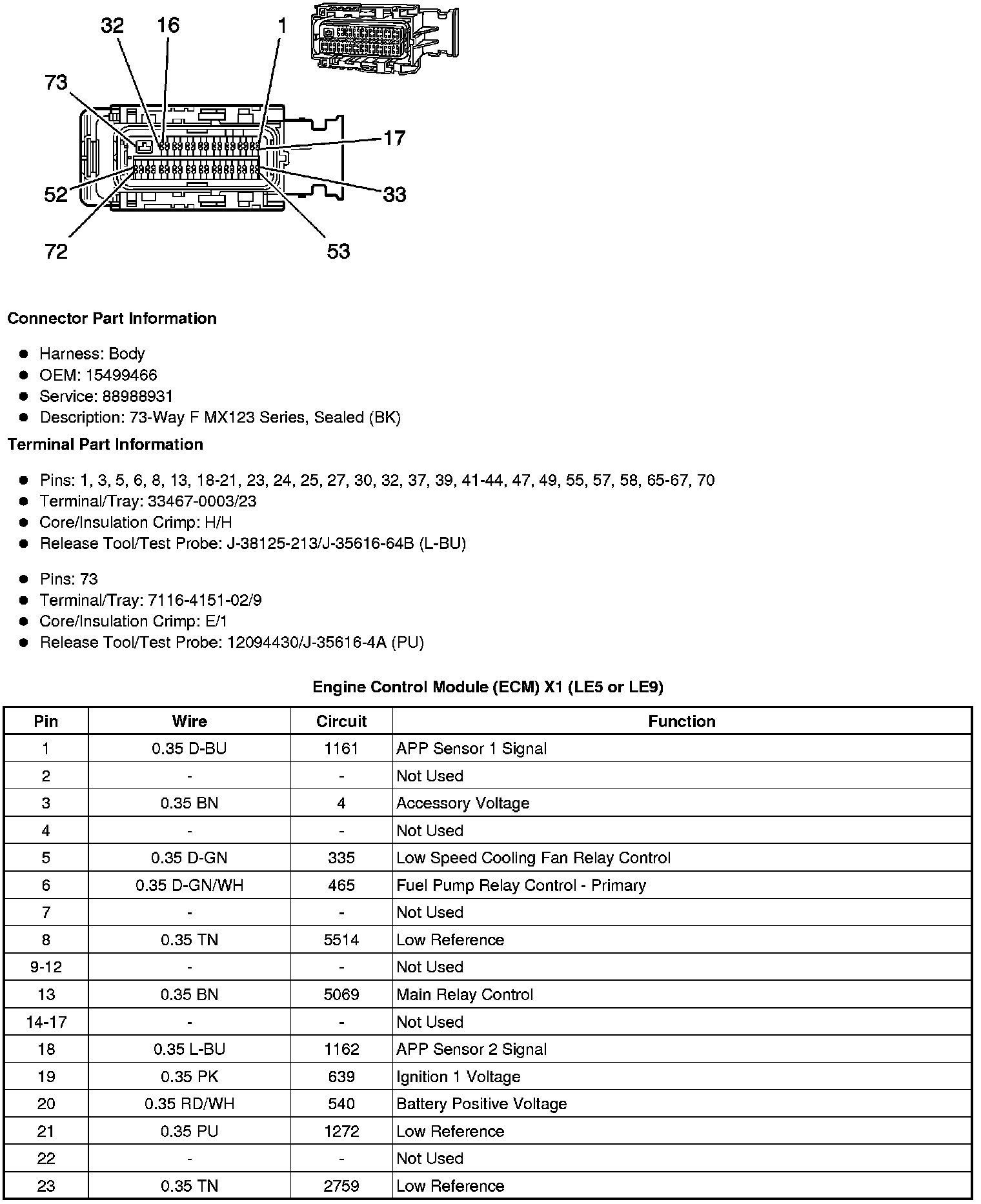

Engine Control Module (ECM) X1 (LE5 or LE9)

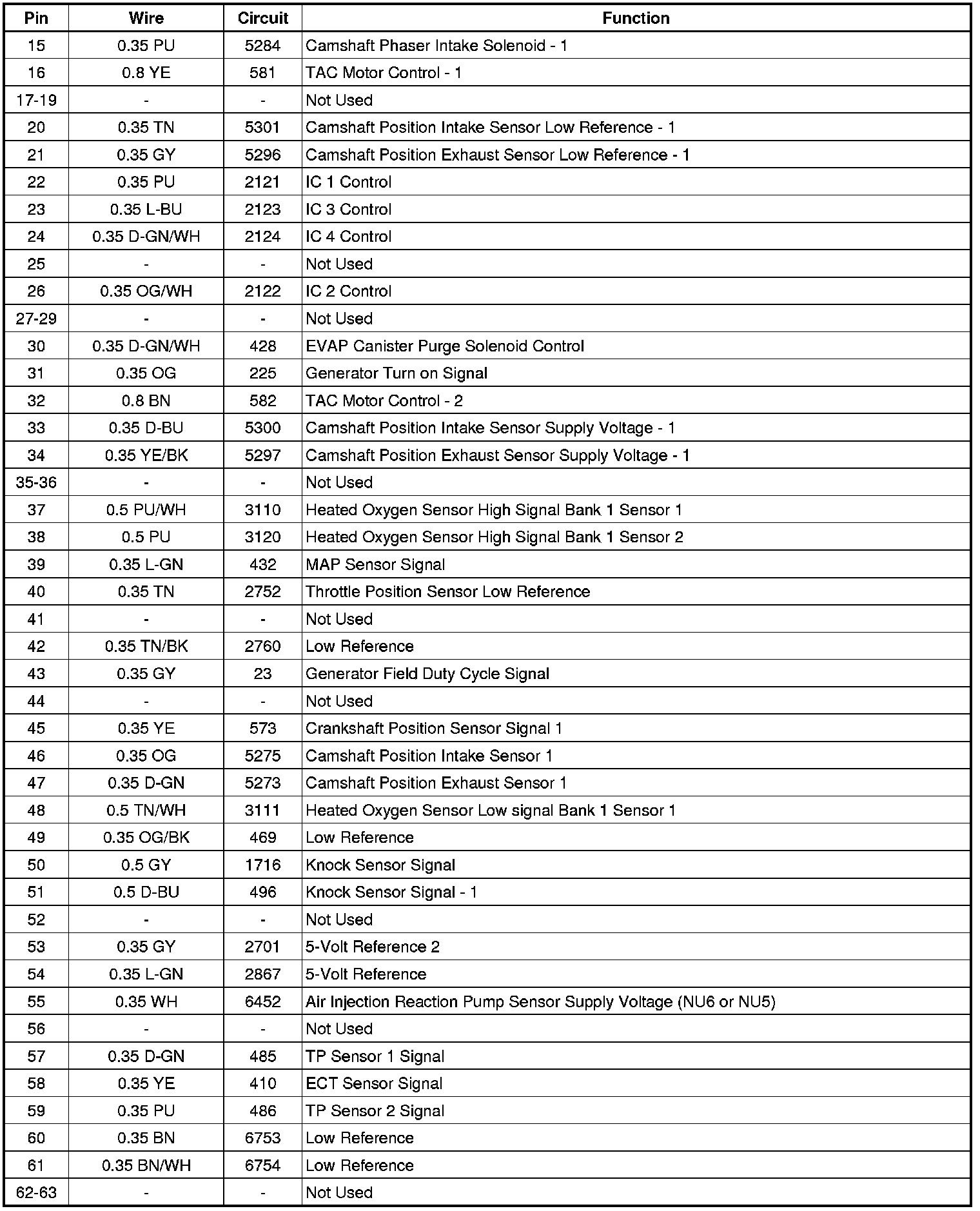

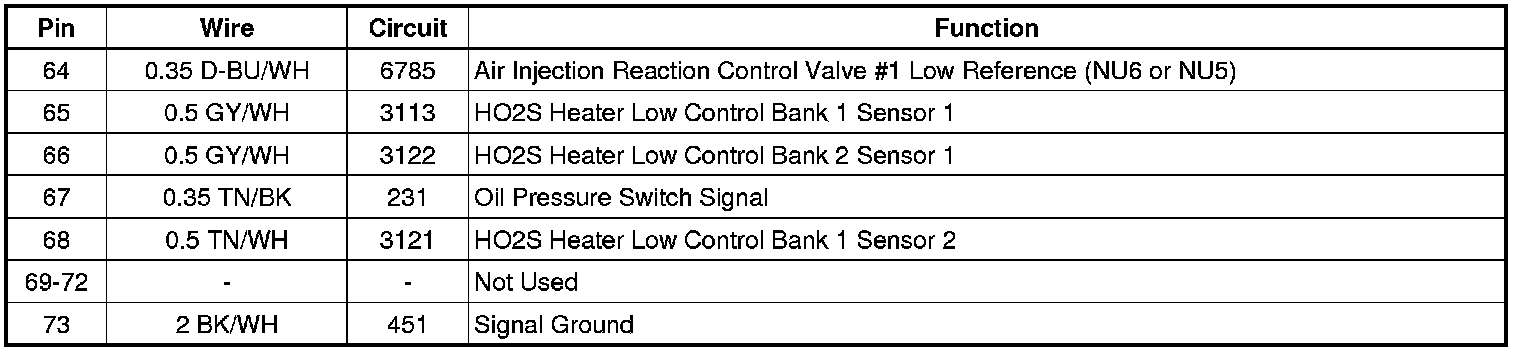

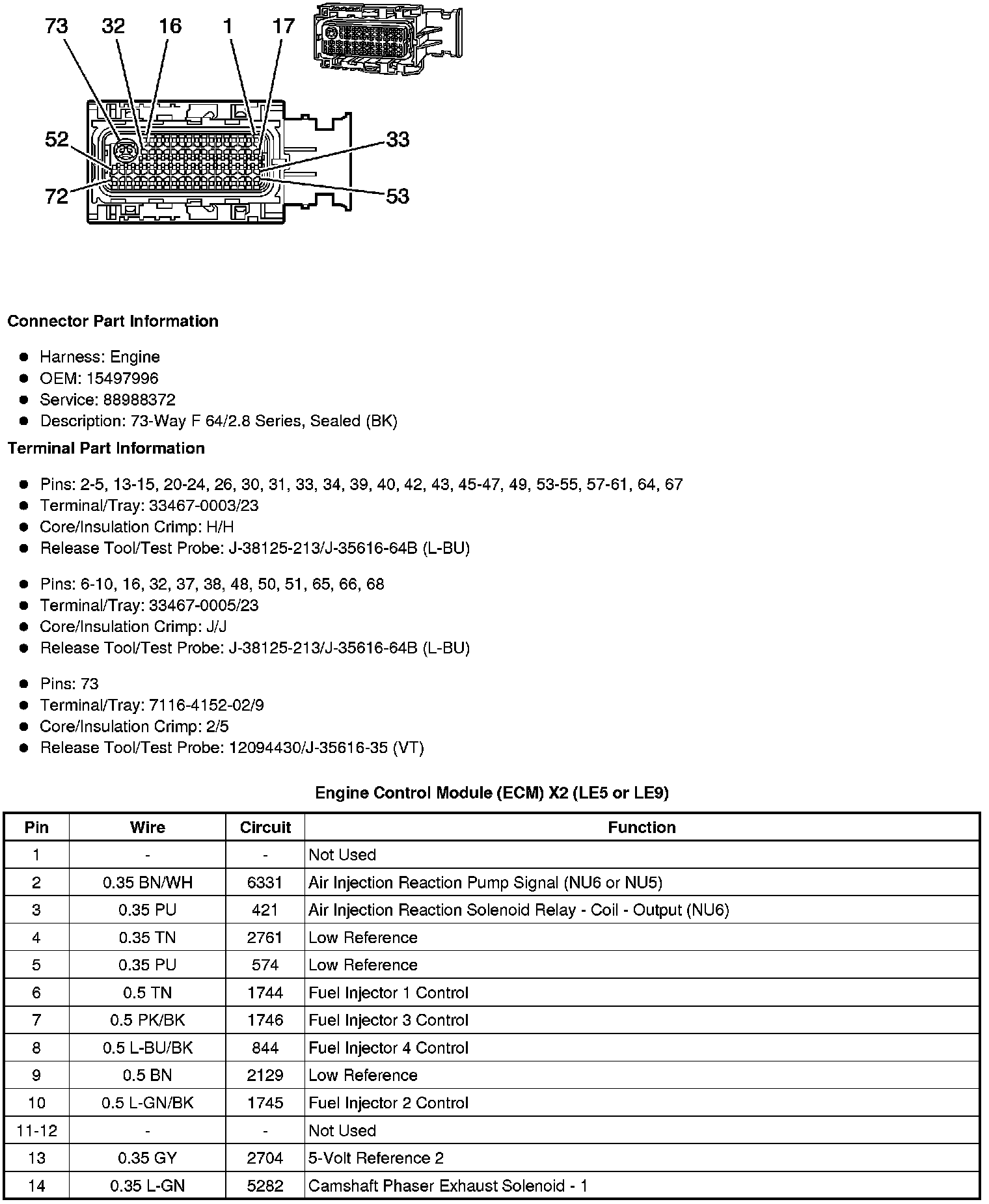

Engine Control Module (ECM) X2 (LE5 or LE9)
