Control Module HVAC
Control Module HVAC
Component Connector End Views

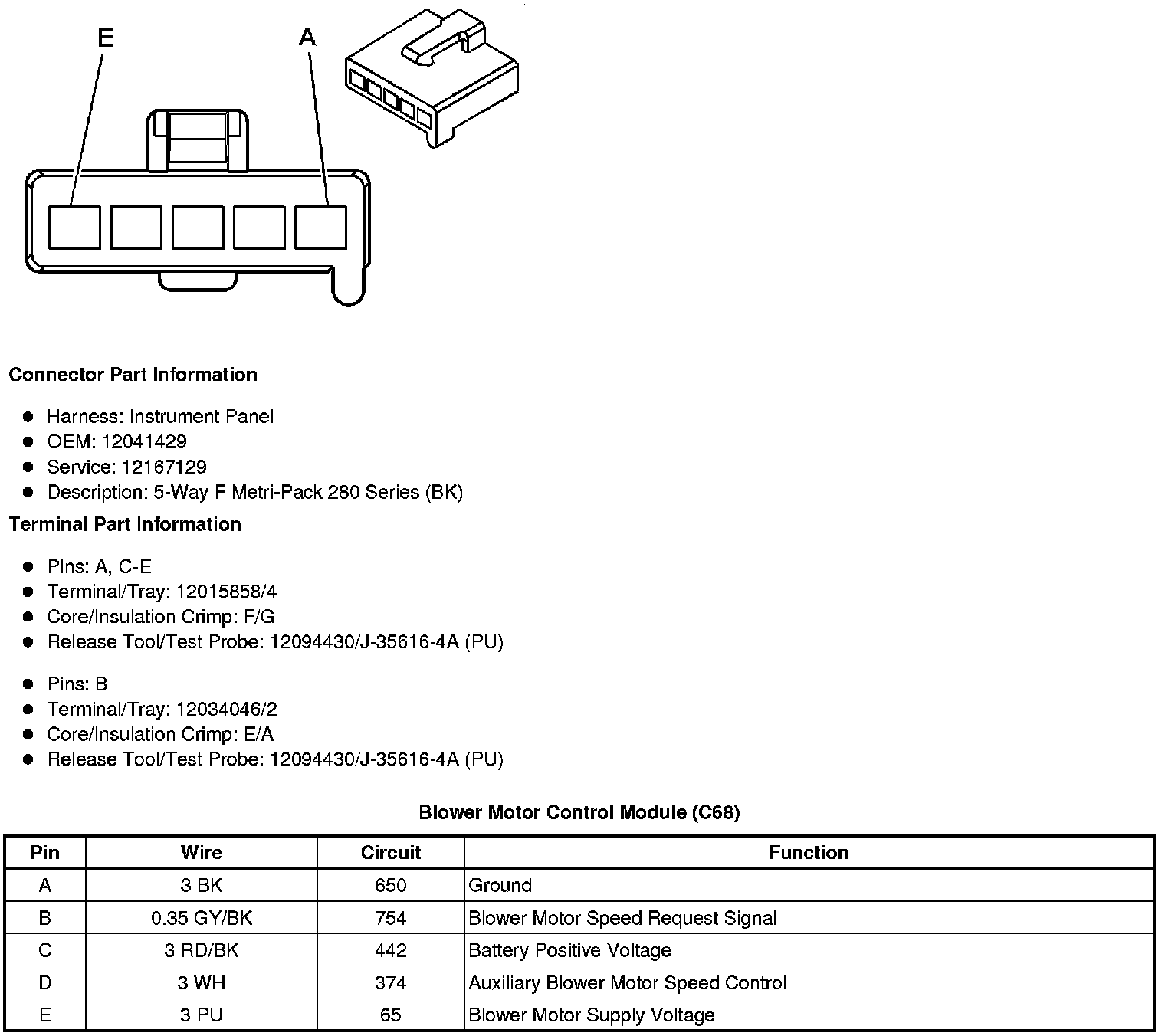

Blower Motor Control Module (C68)
