Air Bag Control Module




Component Connector End Views

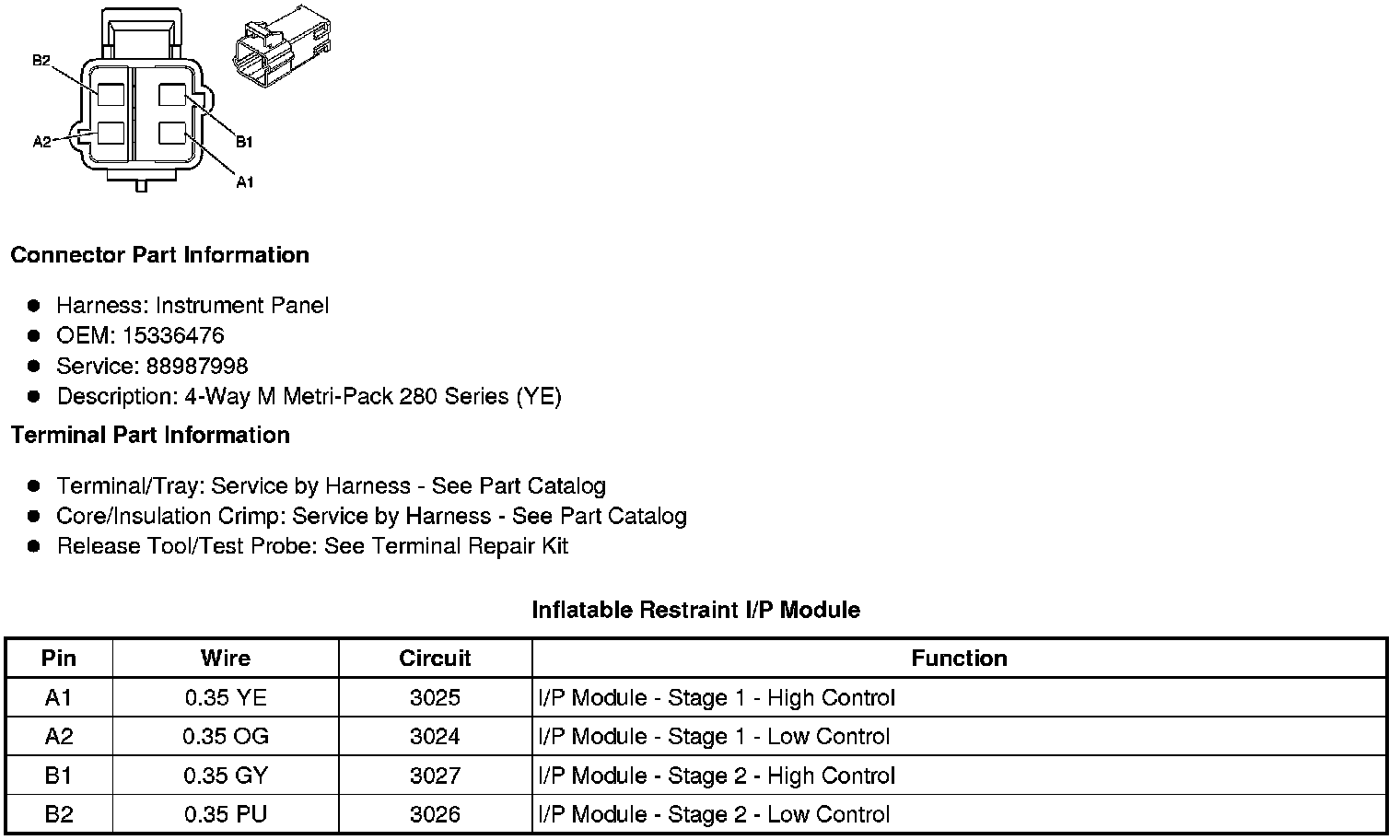

Inflatable Restraint I/P Module

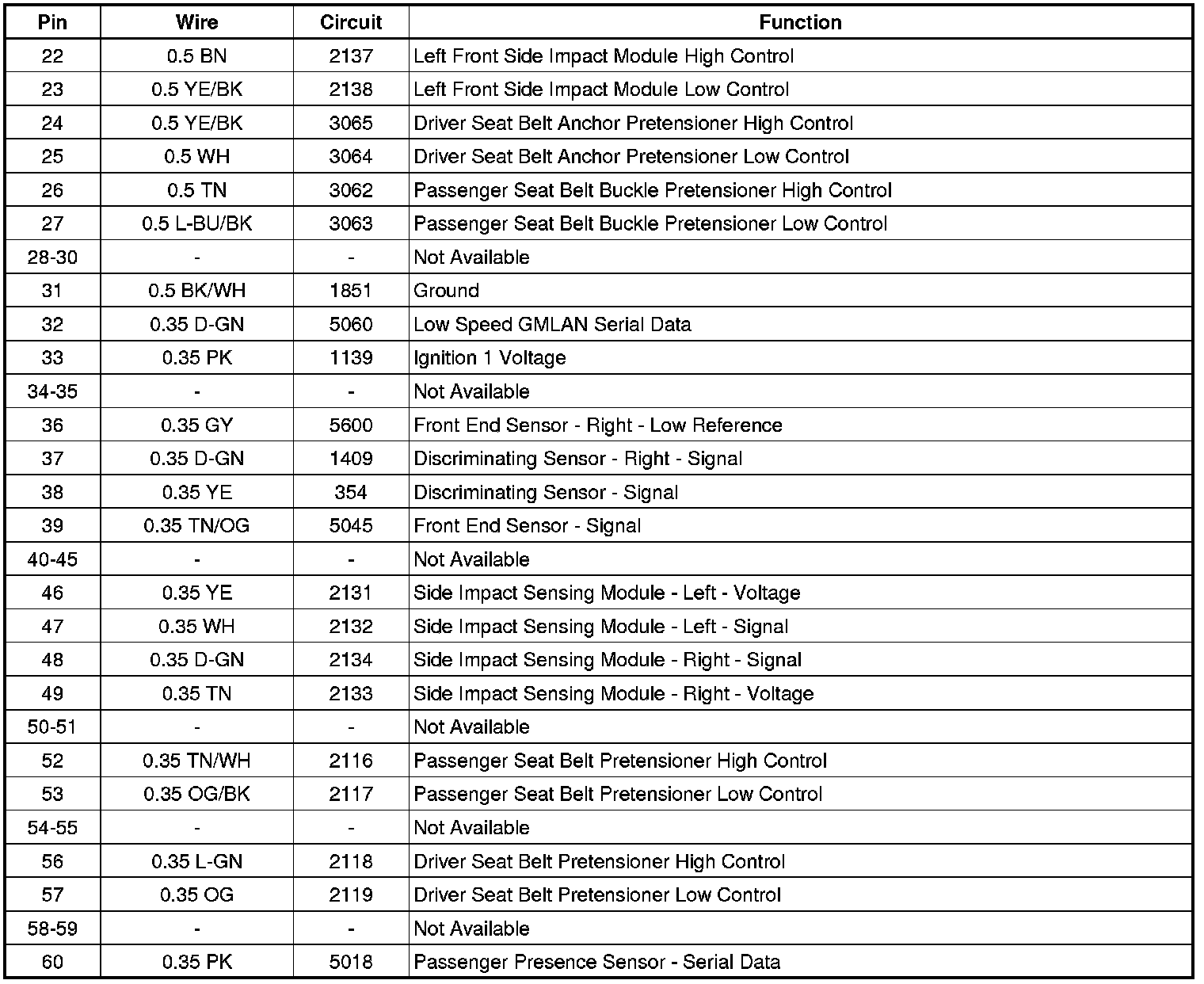

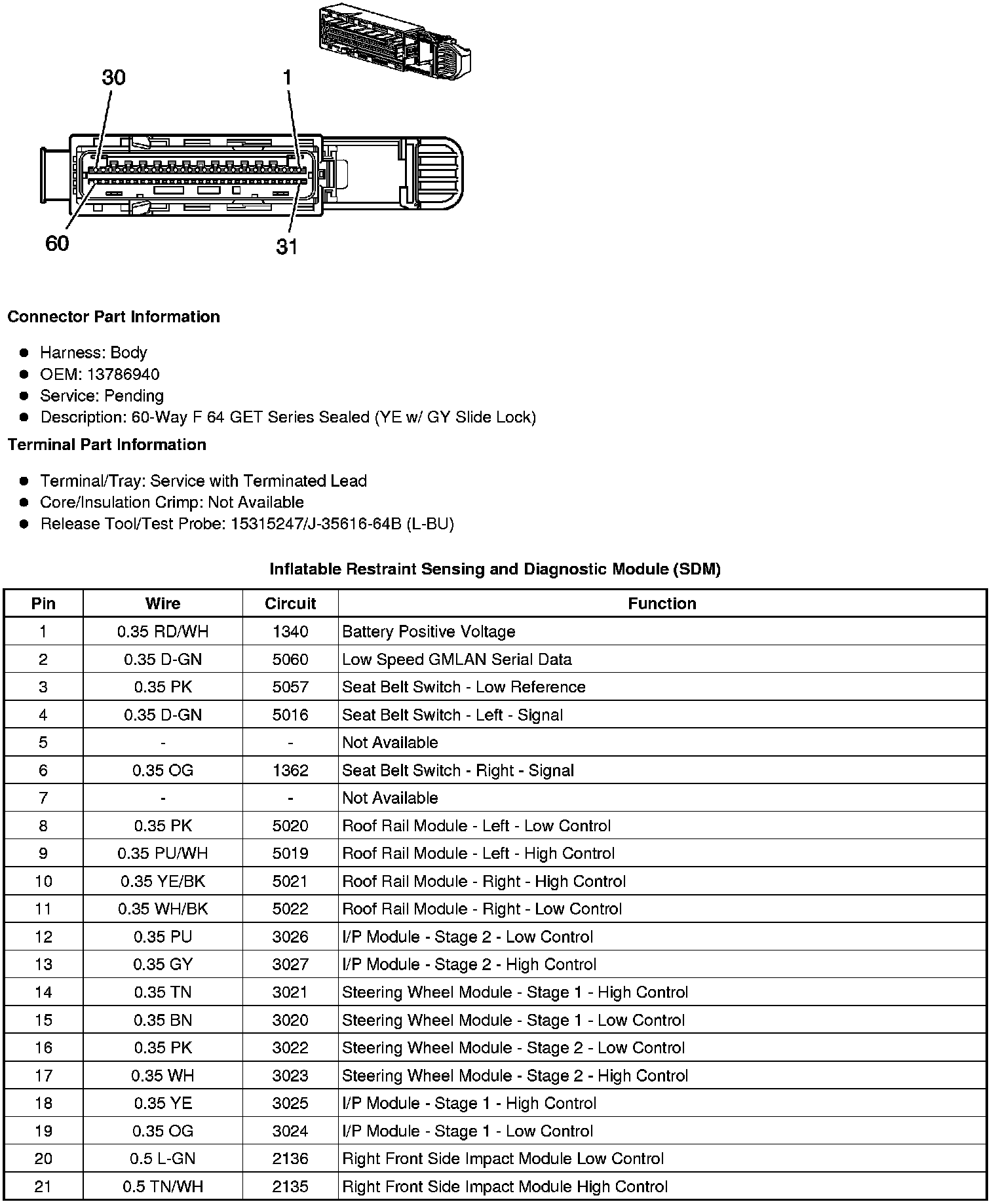

Inflatable Restraint Sensing and Diagnostic Module (SDM)
