Communications Control Module
Component Connector End Views

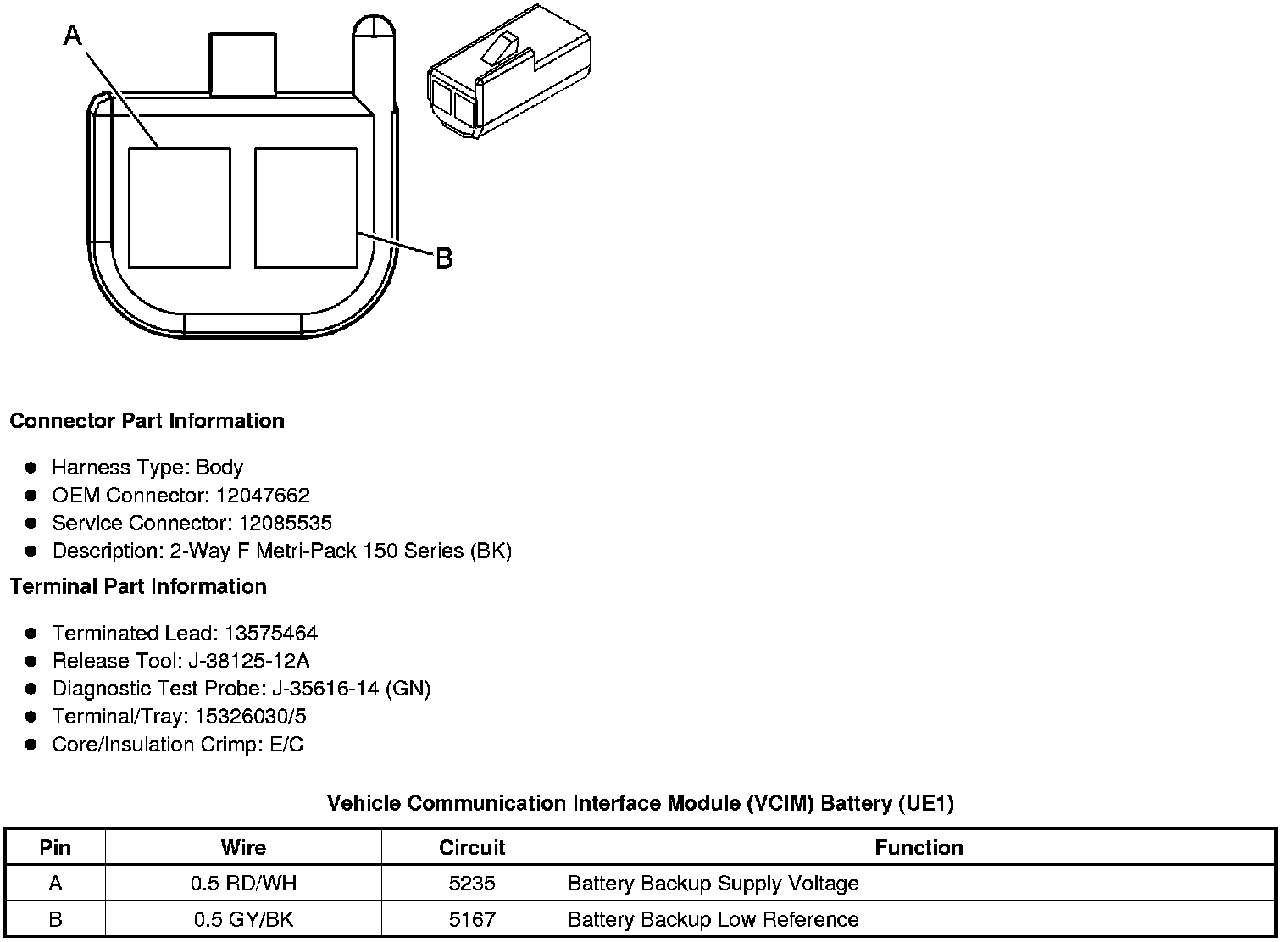

Vehicle Communication Interface Module (VCIM) Battery (UE1)
