Oxygen Sensor: Diagrams
Component Connector End Views

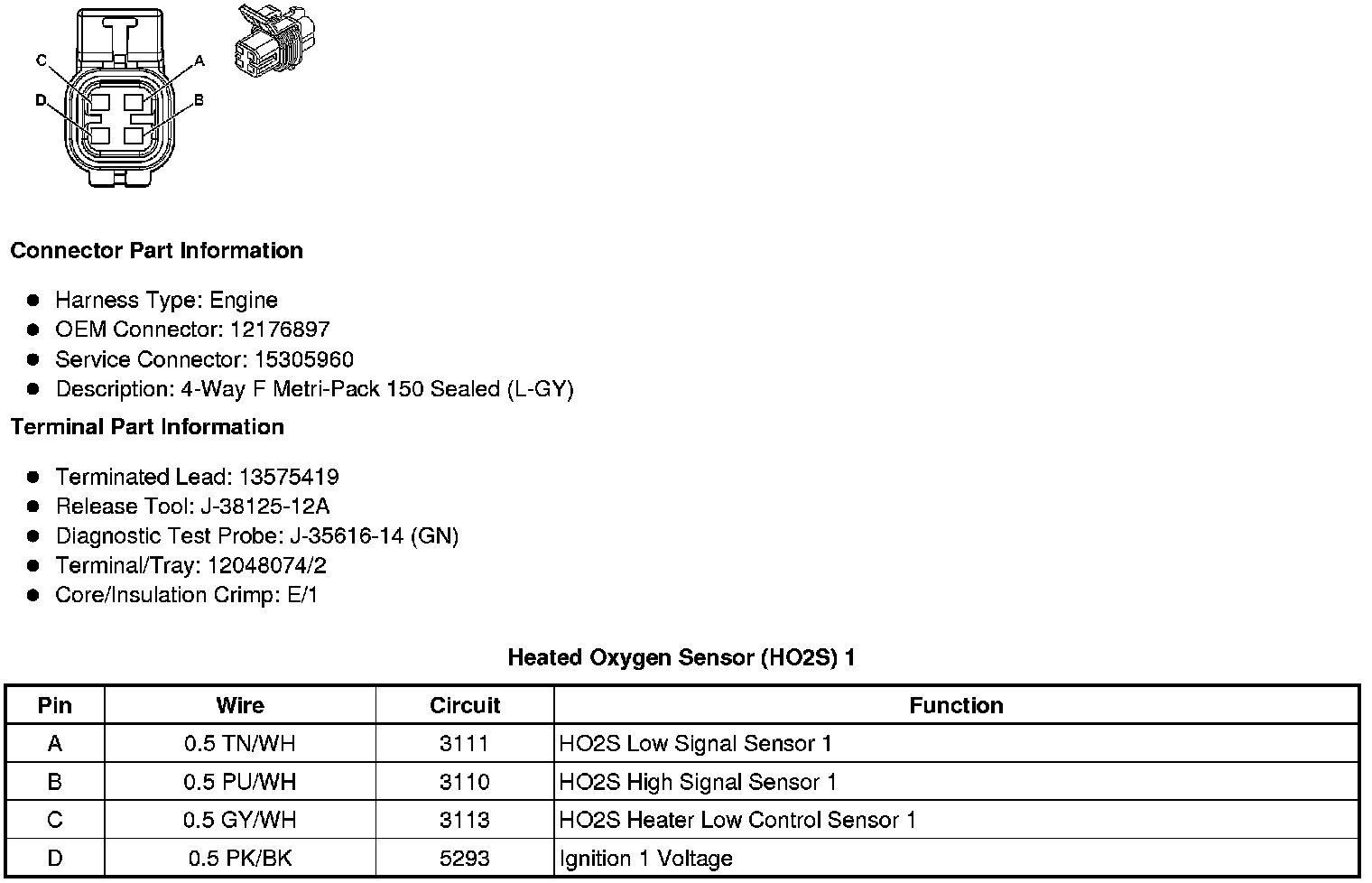

Heated Oxygen Sensor (HO2S) 1

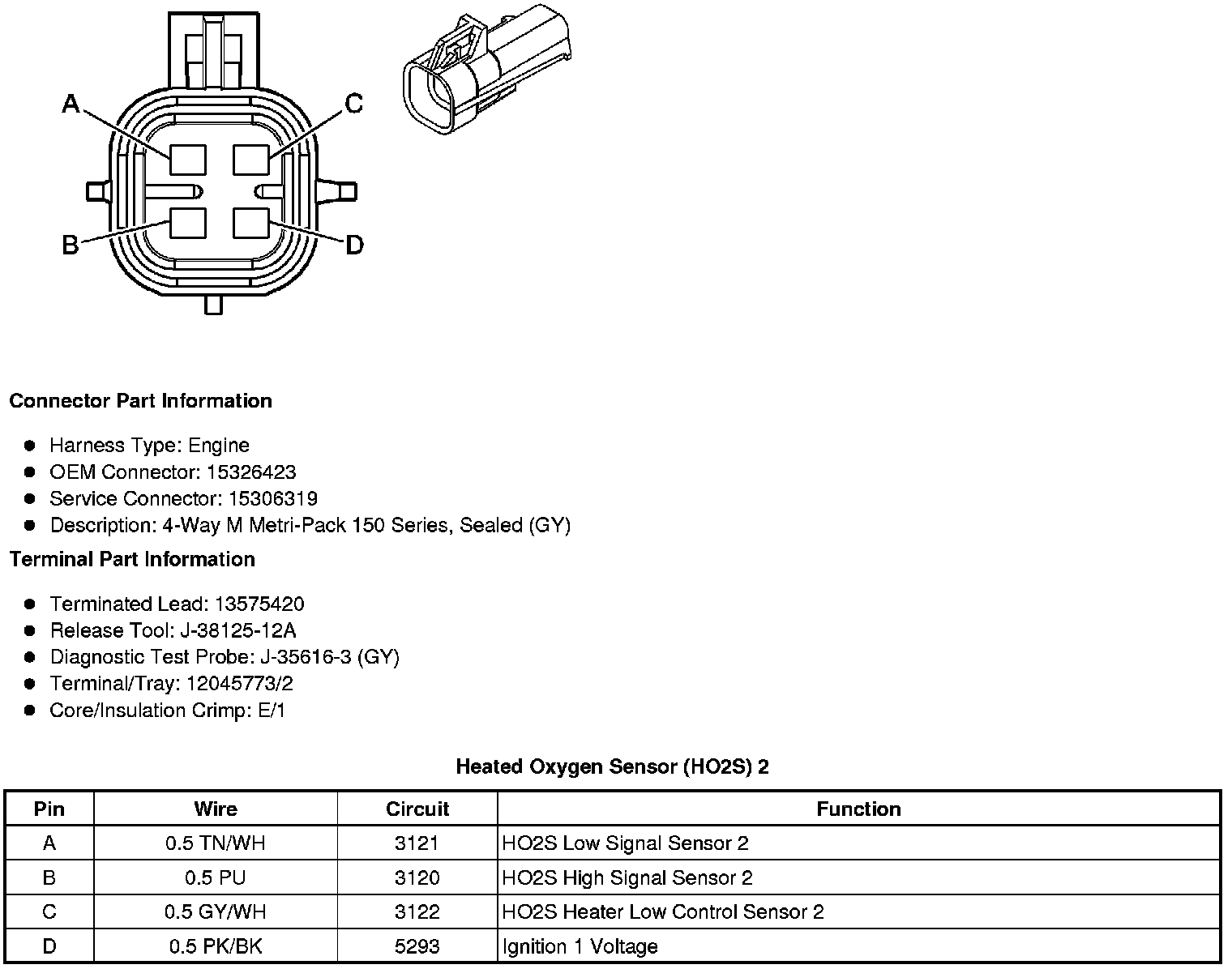

Heated Oxygen Sensor (HO2S) 2
