Electronic Brake Control Module




Component Connector End Views

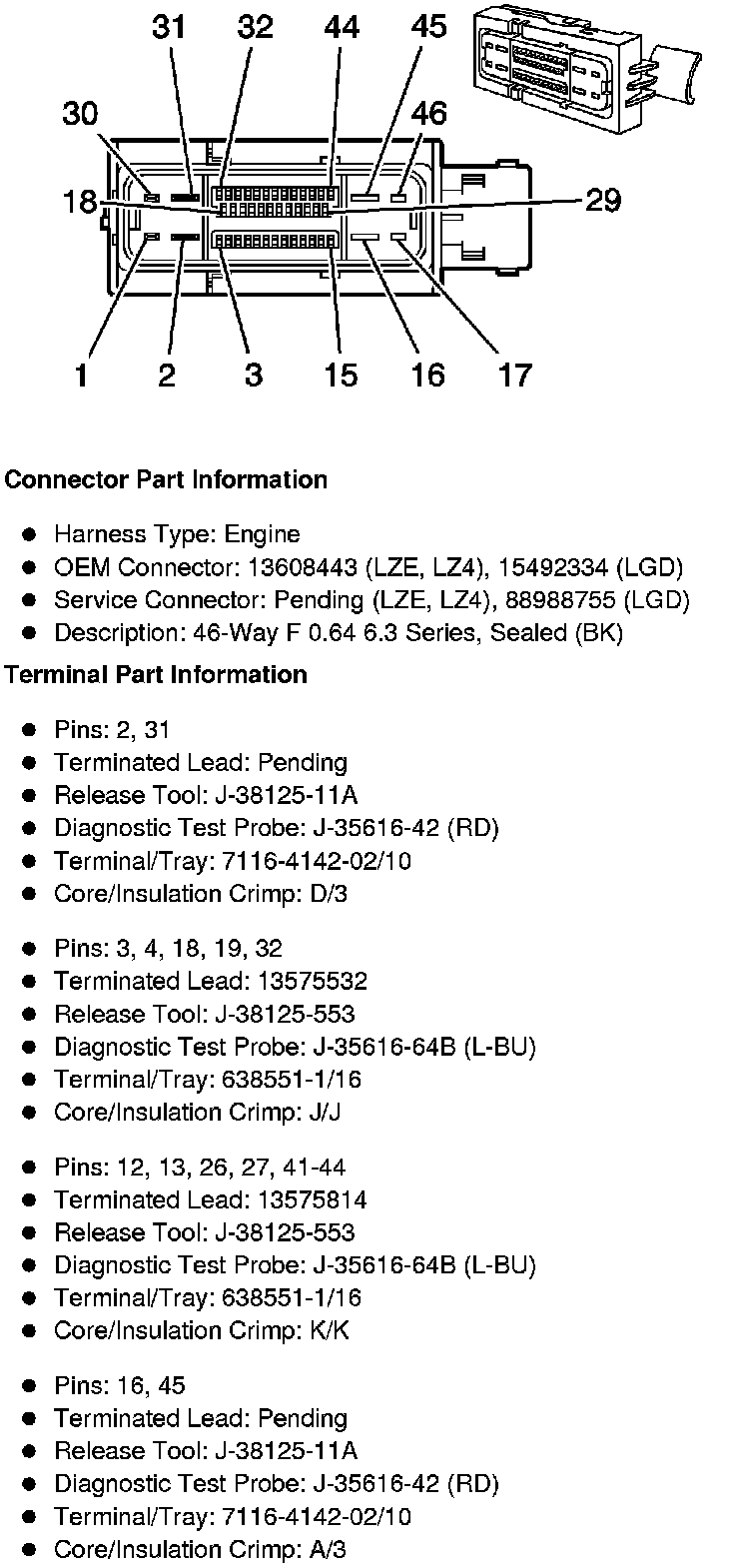

Electronic Brake Control Module (EBCM) (without JL4)

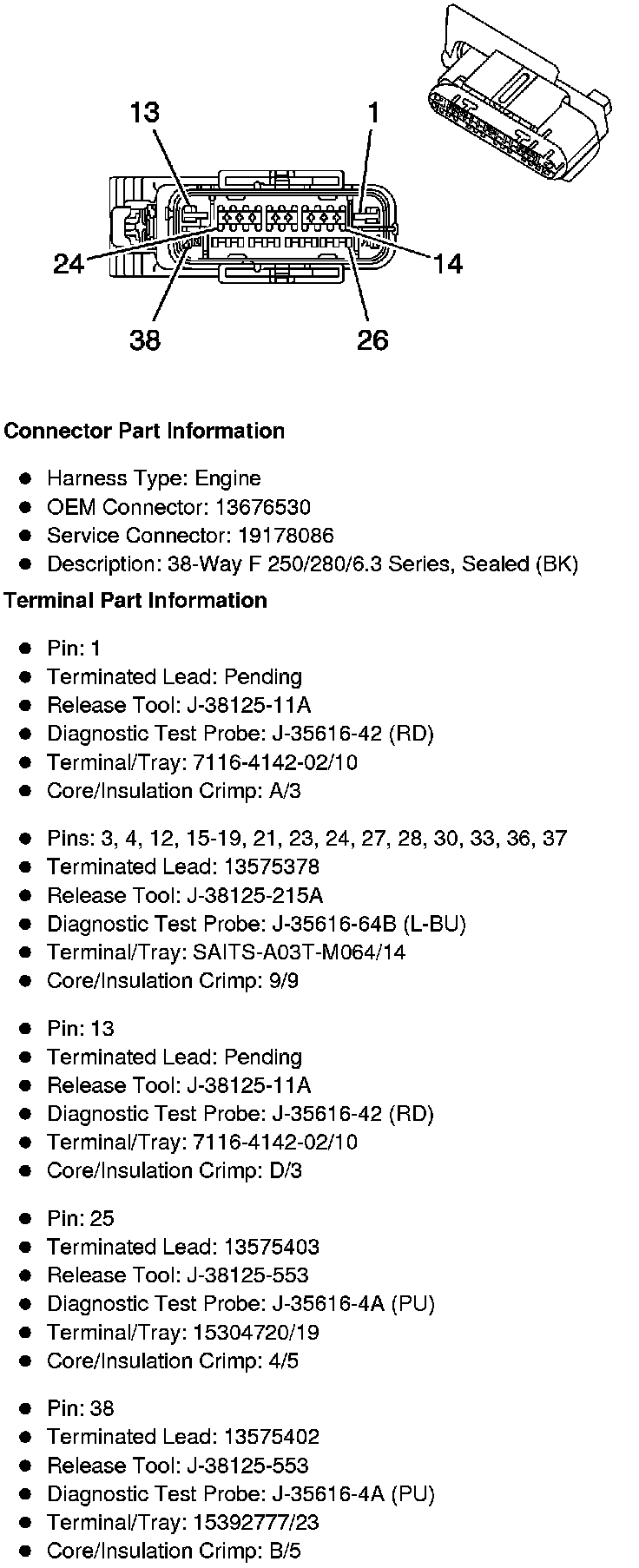

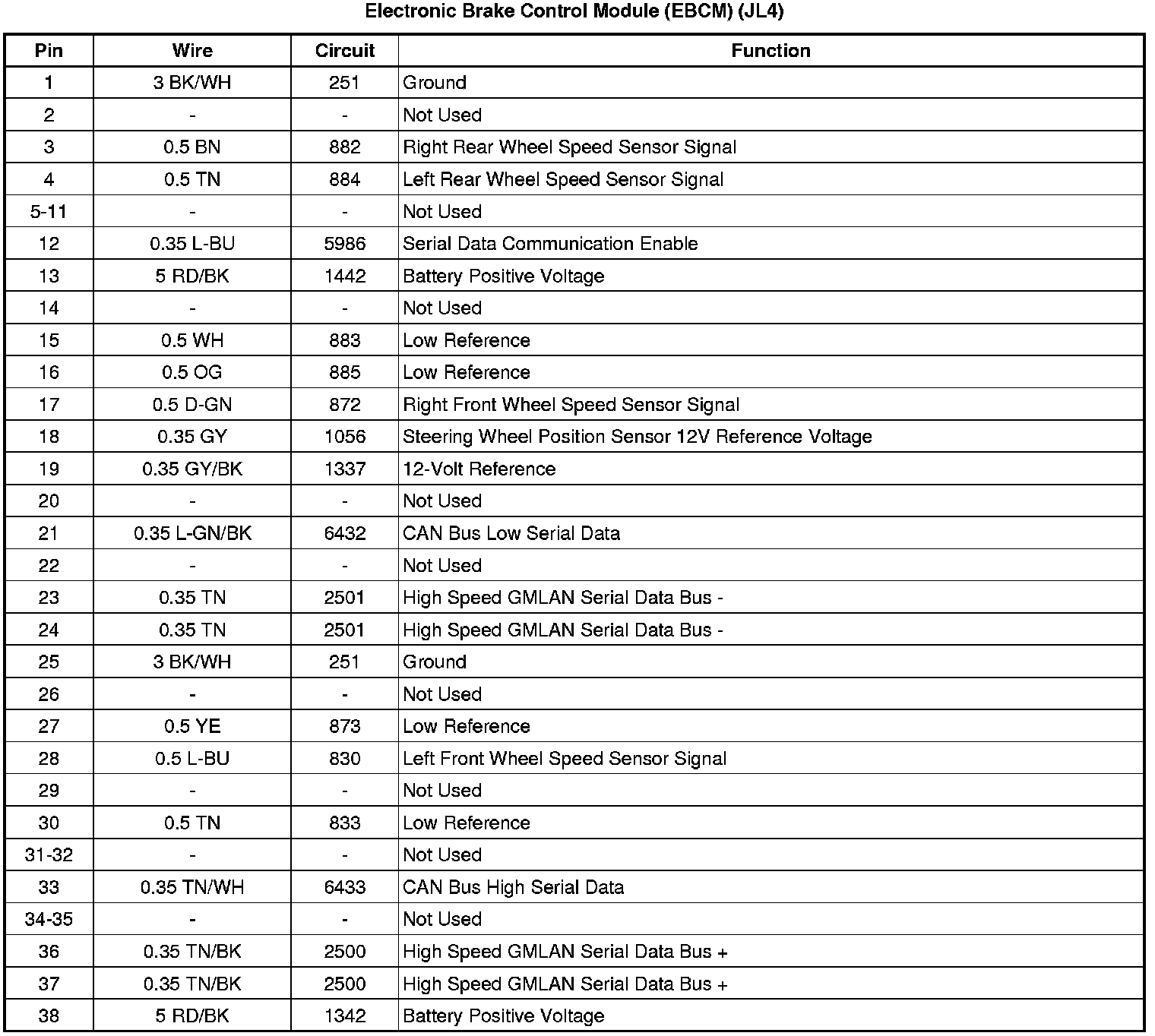

Electronic Brake Control Module (EBCM) (JL4)
