Connector Views
>>
Air Bag Control Module
Air Bag Control Module

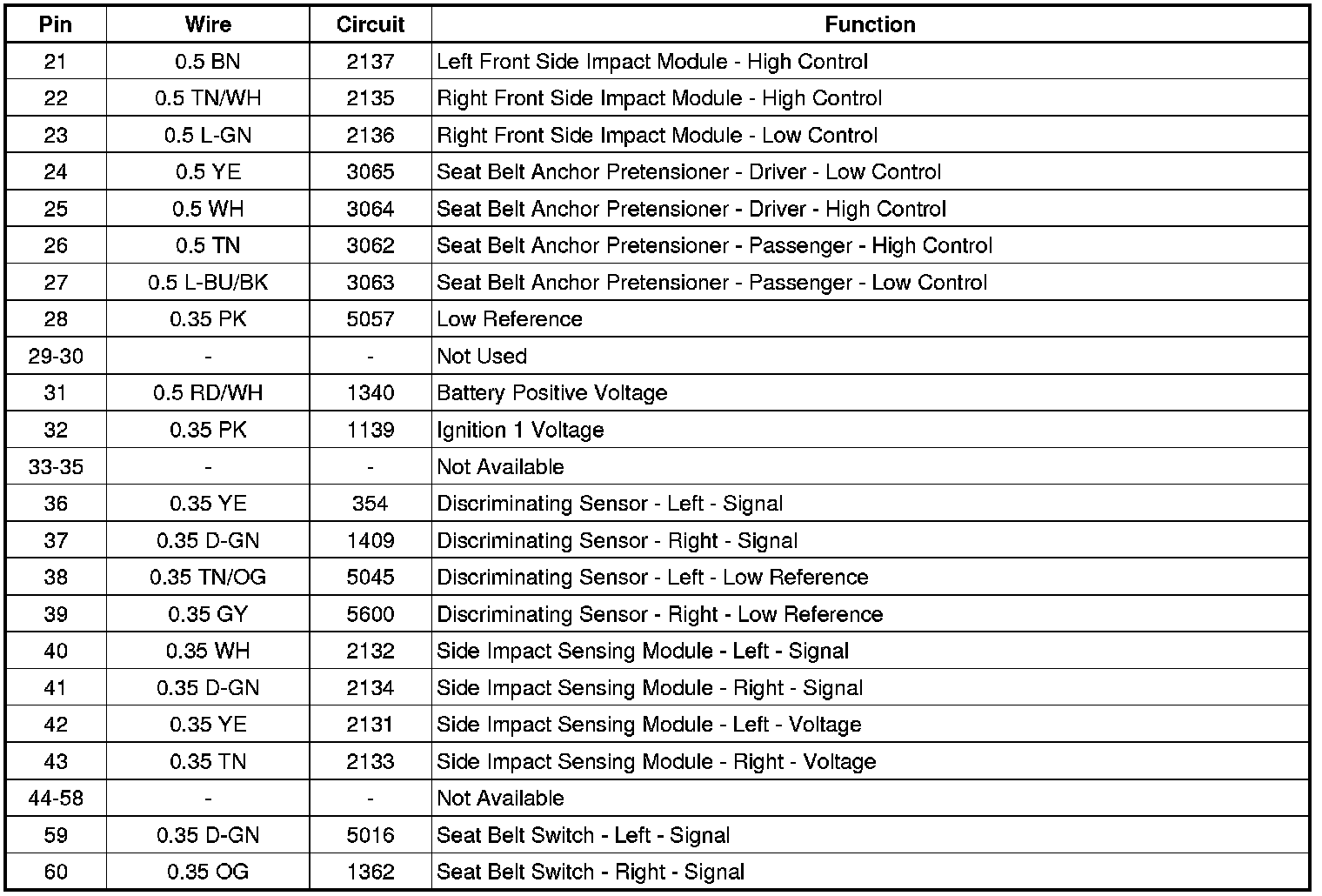

Component Connector End Views
Inflatable Restraint Sensing and Diagnostic Module
