Oxygen Sensor: Diagrams
Component Connector End Views

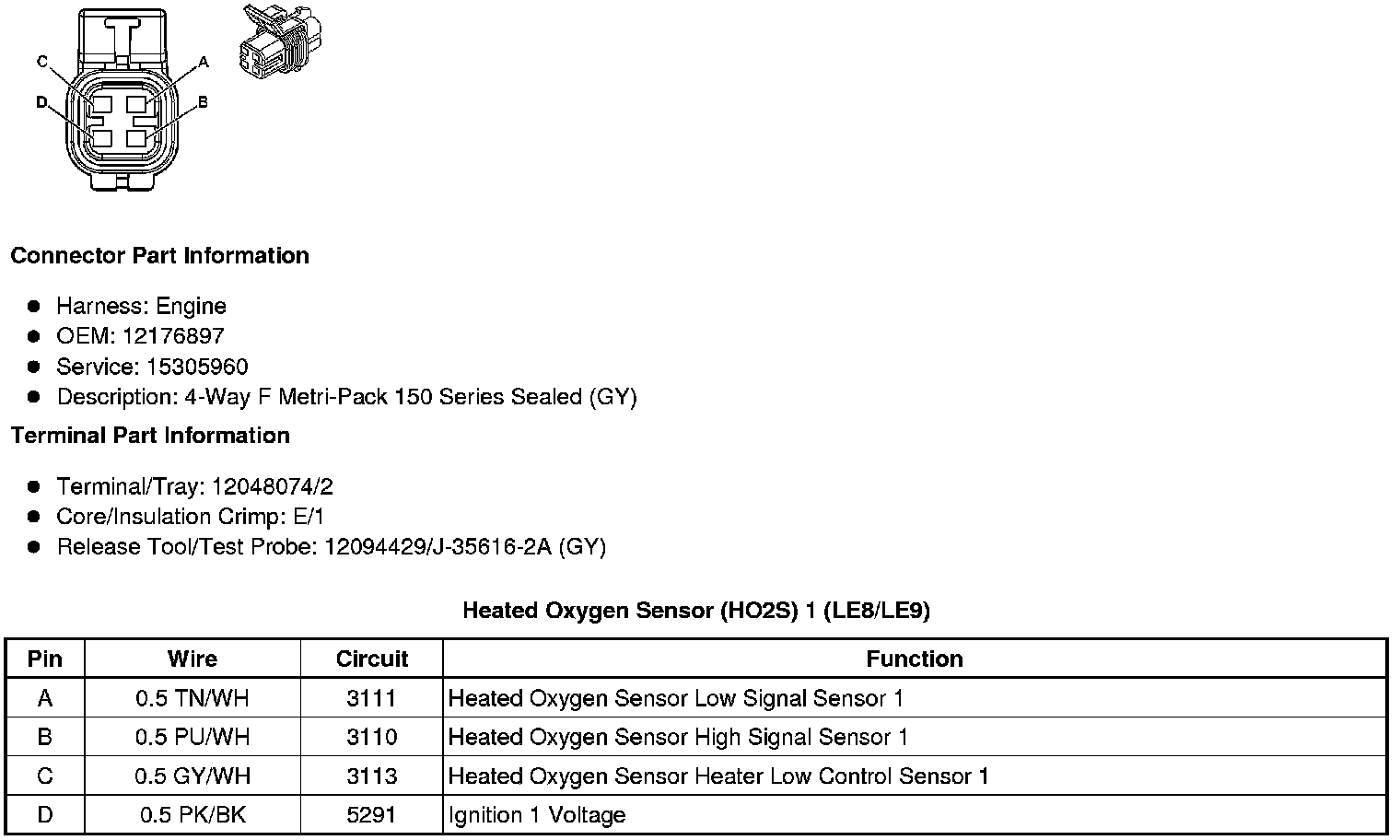

Heated Oxygen Sensor (HO2S) 1 (LE8/LE9)

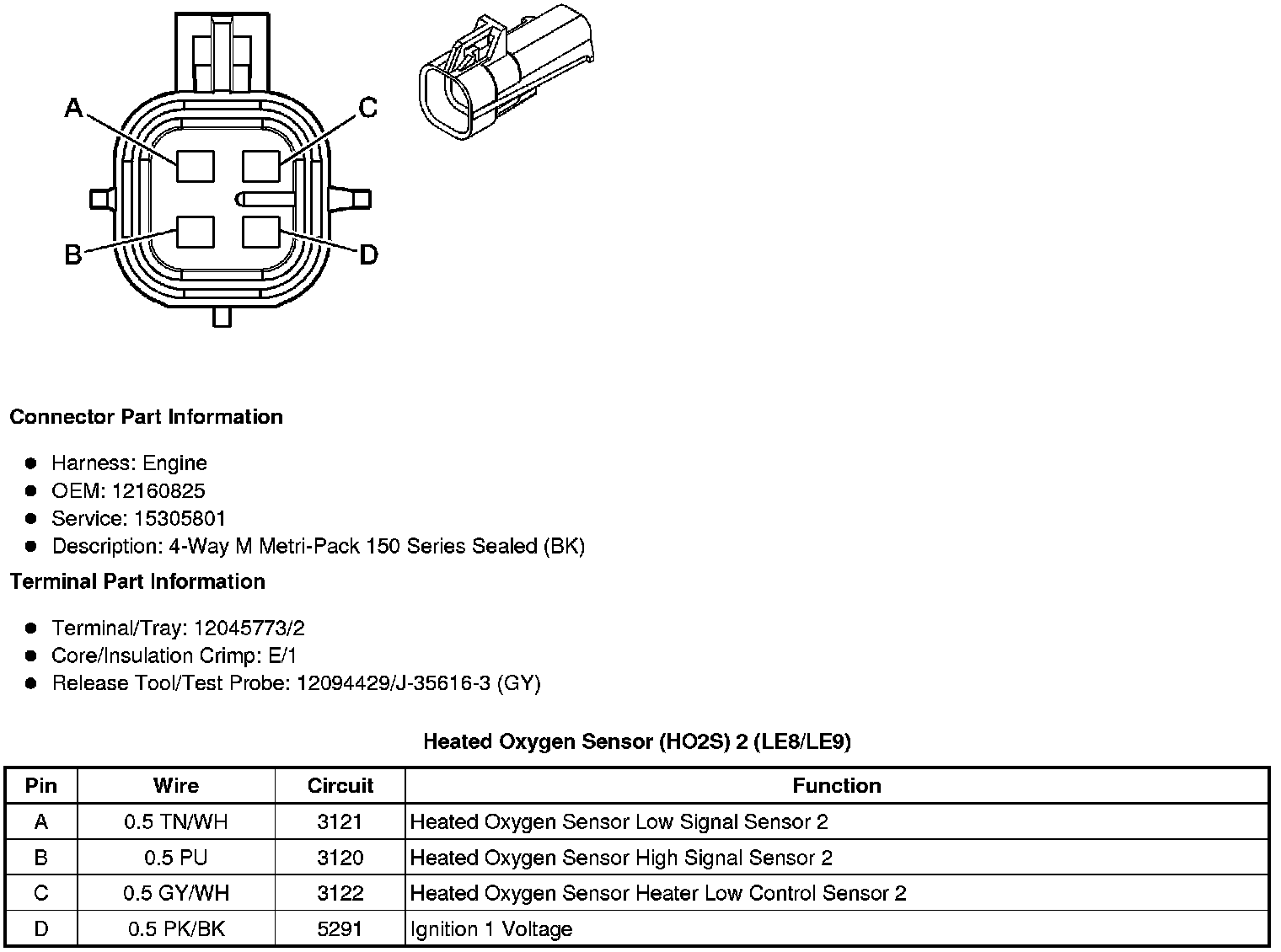

Heated Oxygen Sensor (HO2S) 2 (LE8/LE9)
