Coolant Temperature Sensor/Switch (For Computer): Diagrams

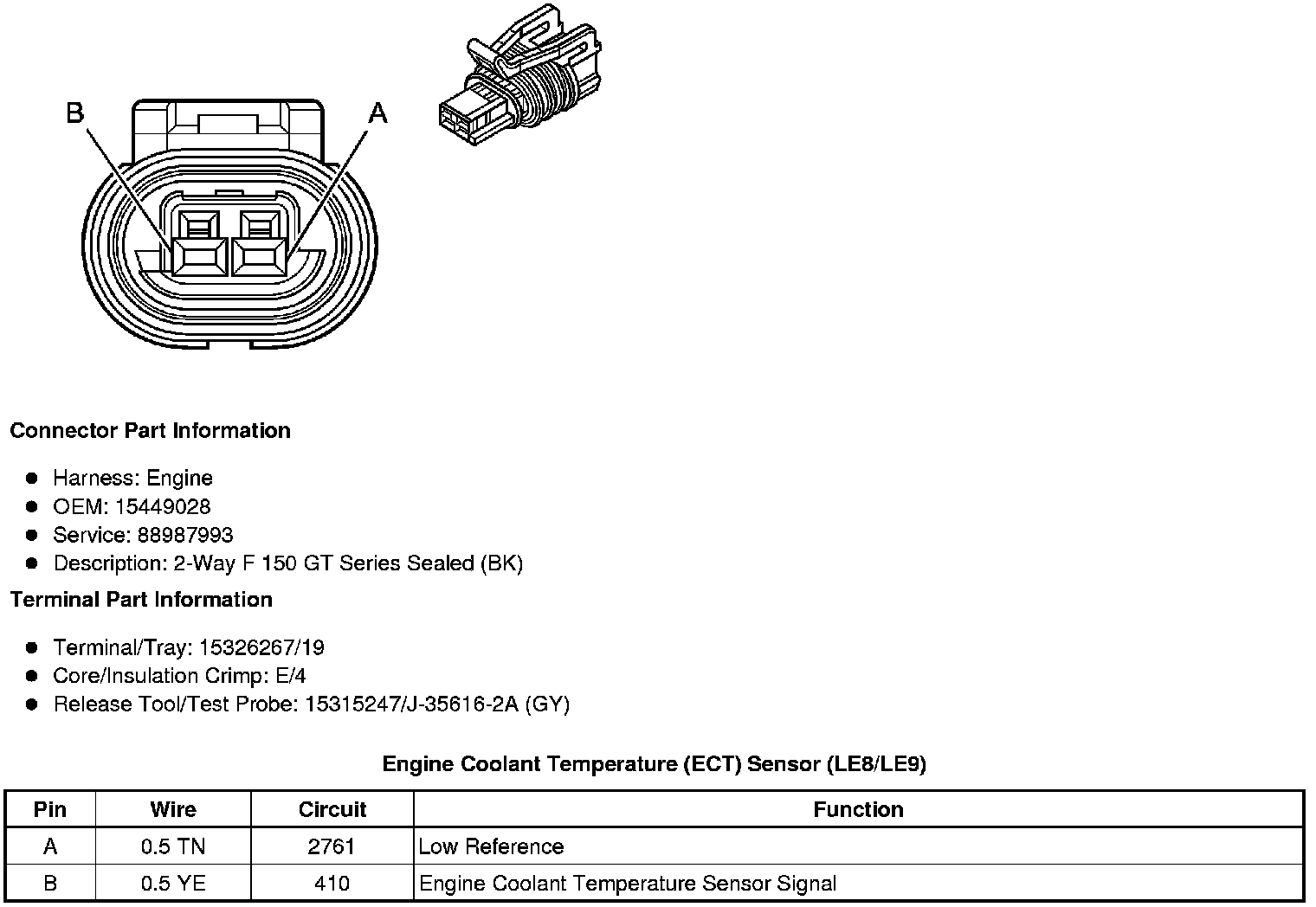

Component Connector End Views

Engine Coolant Temperature (ECT) Sensor (LE8/LE9)
