Battery Current Sensor: Diagrams

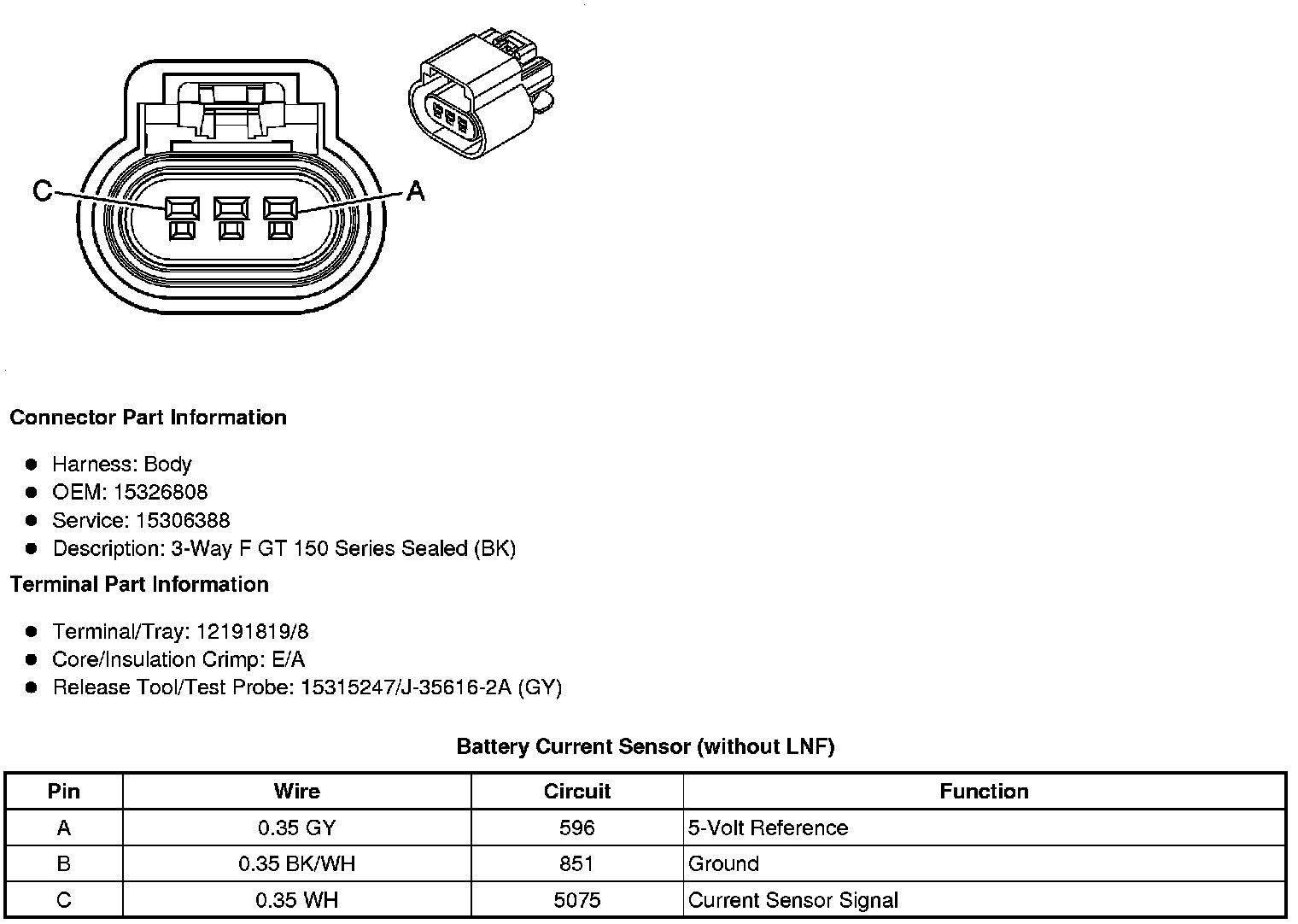

Component Connector End Views

Battery Current Sensor (without LNF)
