Thread Repair Specifications
Thread Repair Specifications

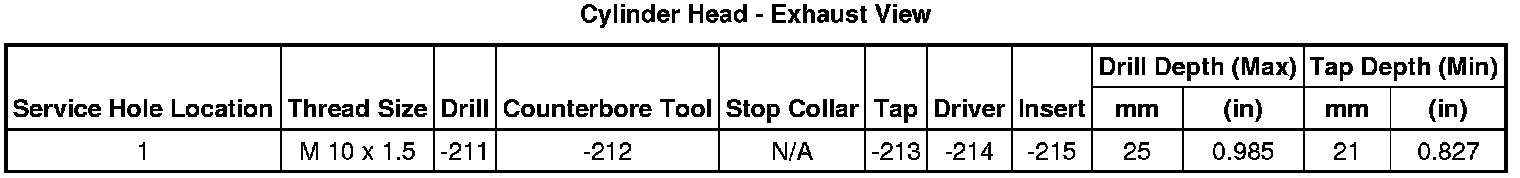

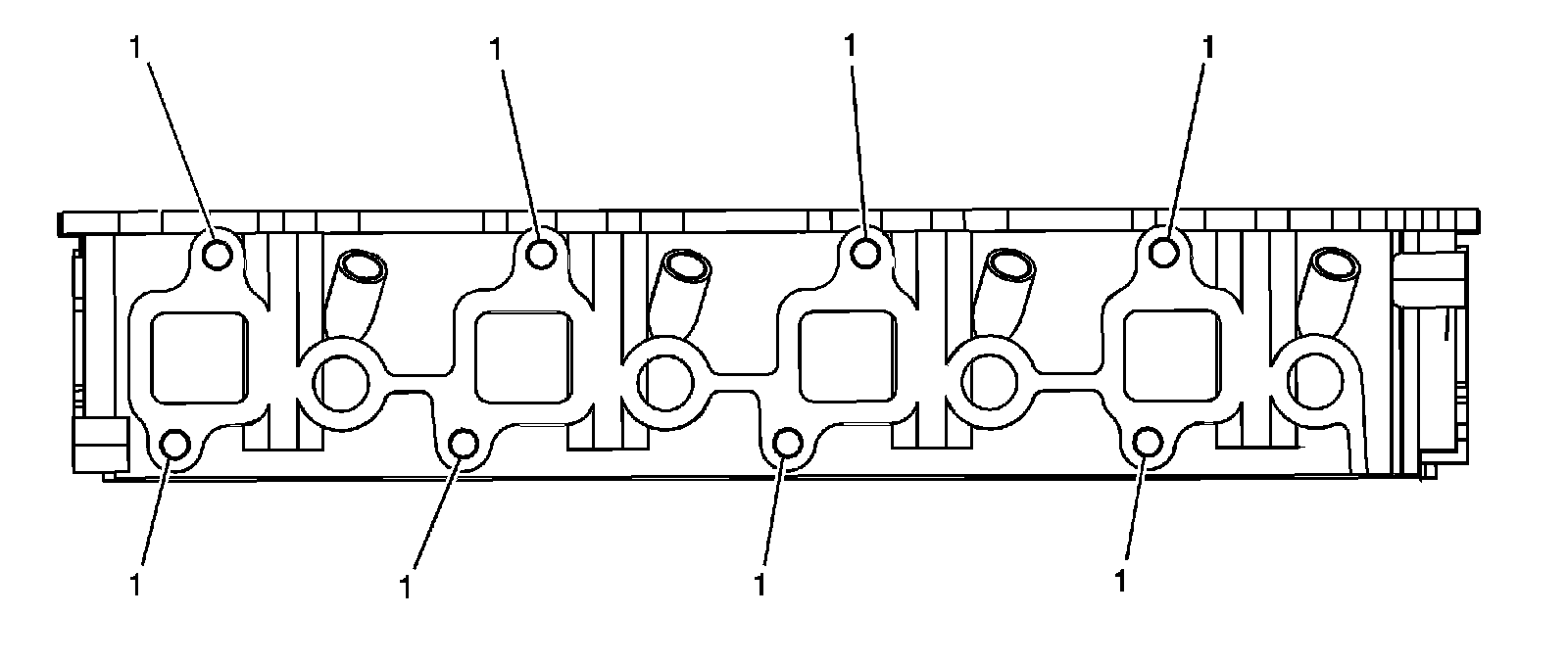

Cylinder Head - Exhaust View

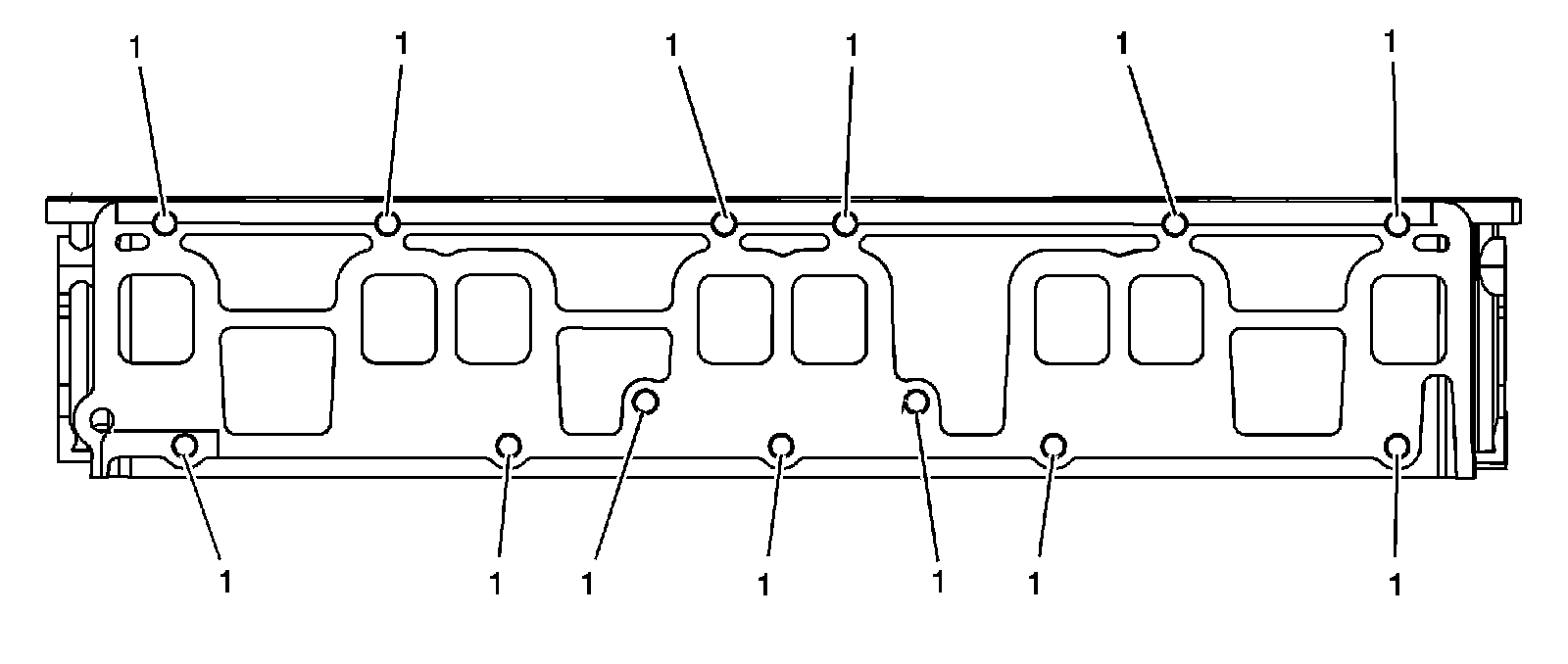

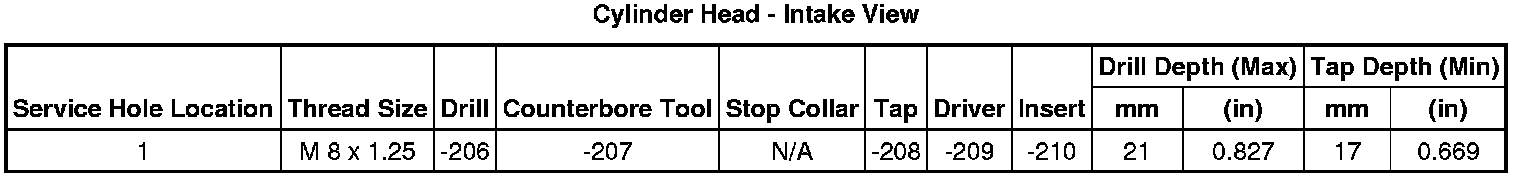

Cylinder Head - Intake View

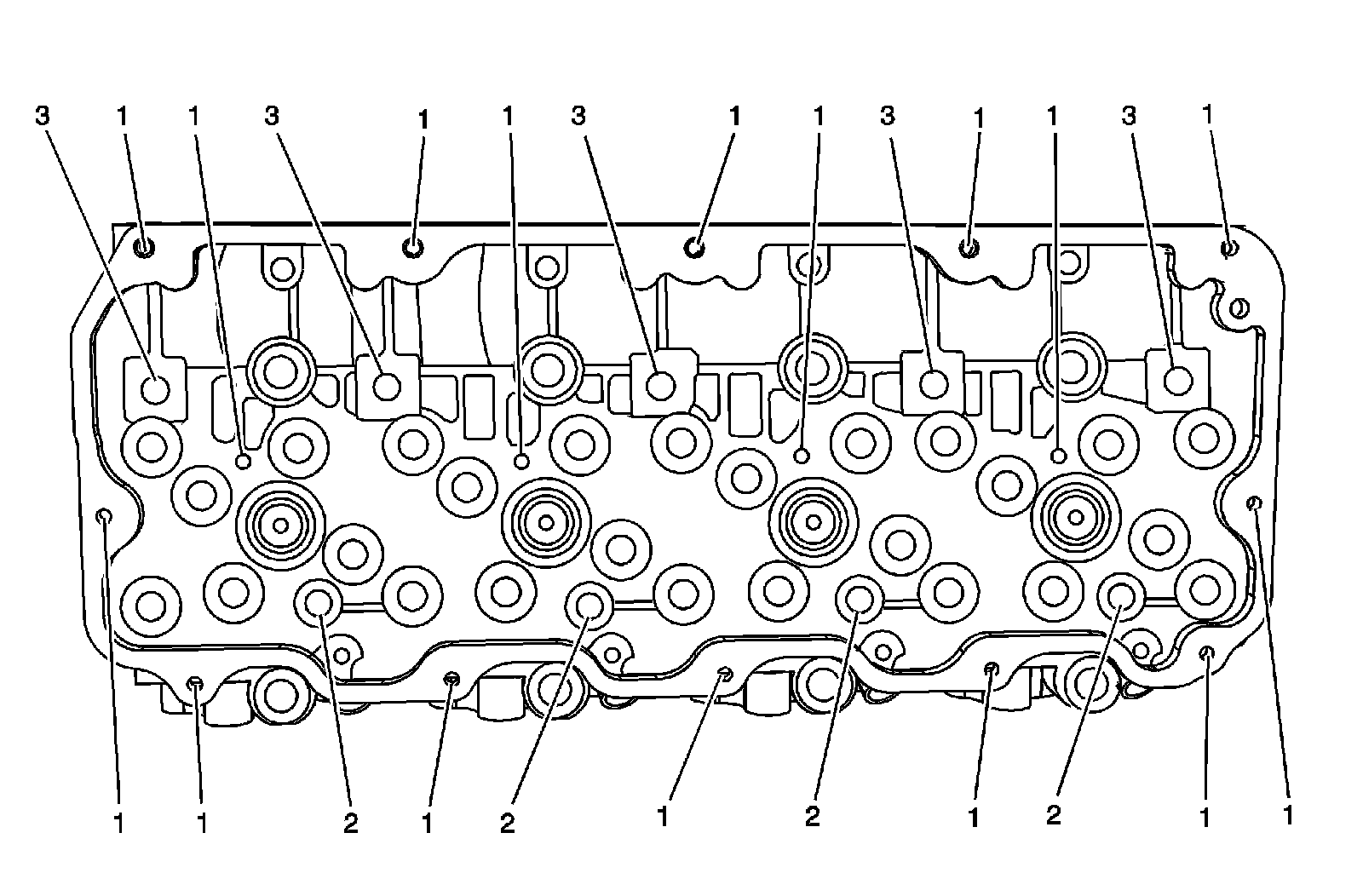

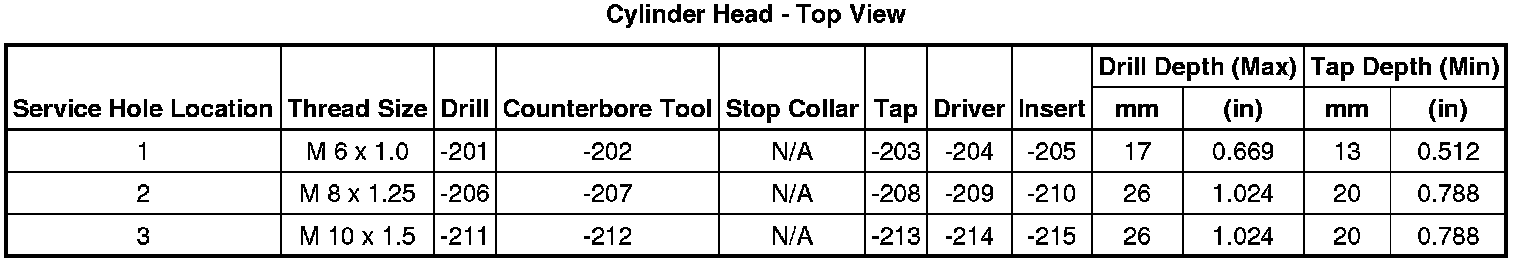

Cylinder Head - Top View

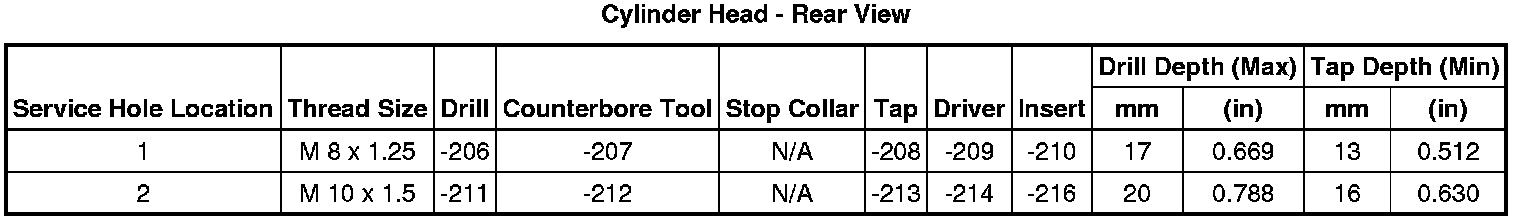

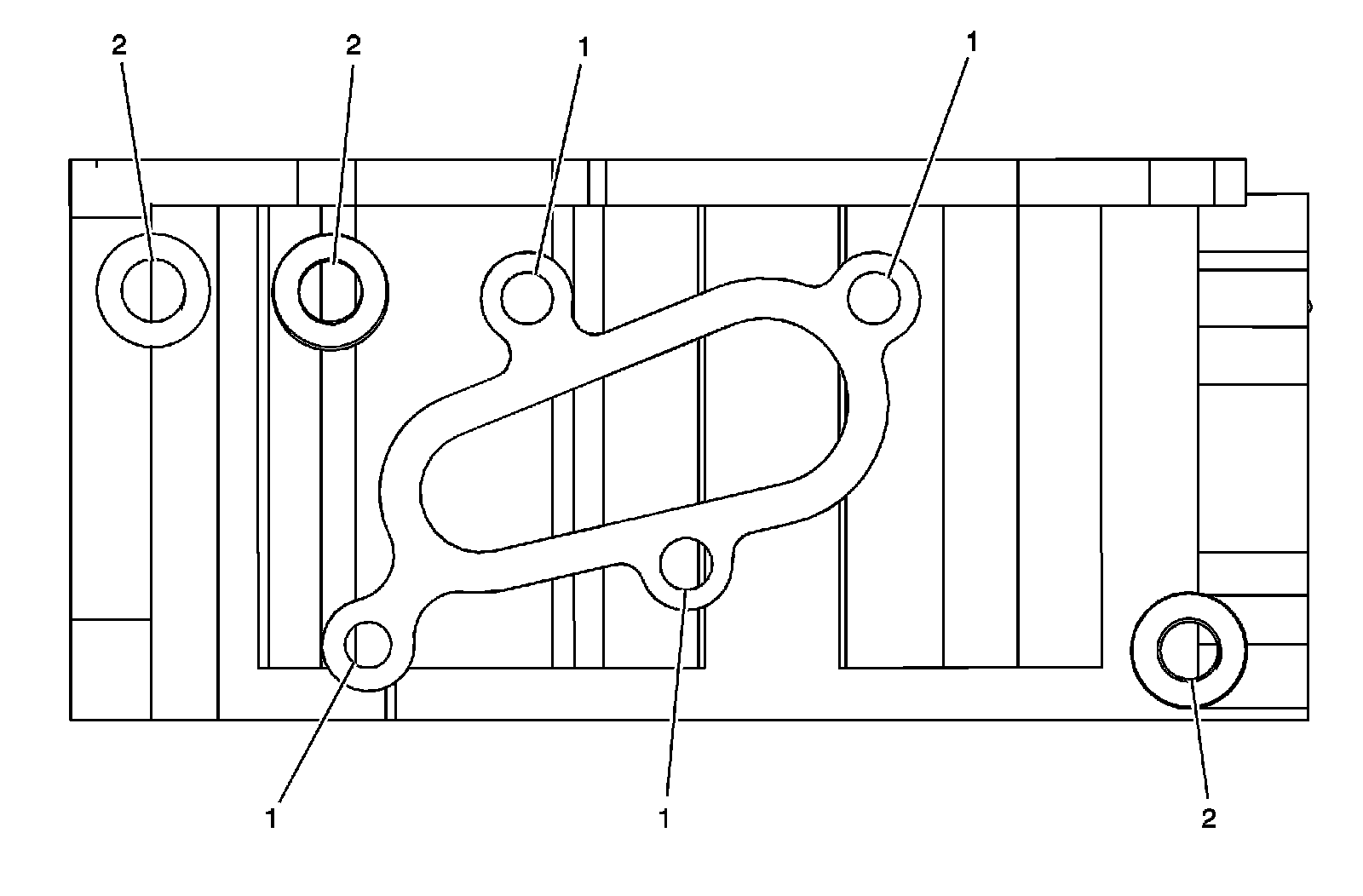

Cylinder Head - Rear View

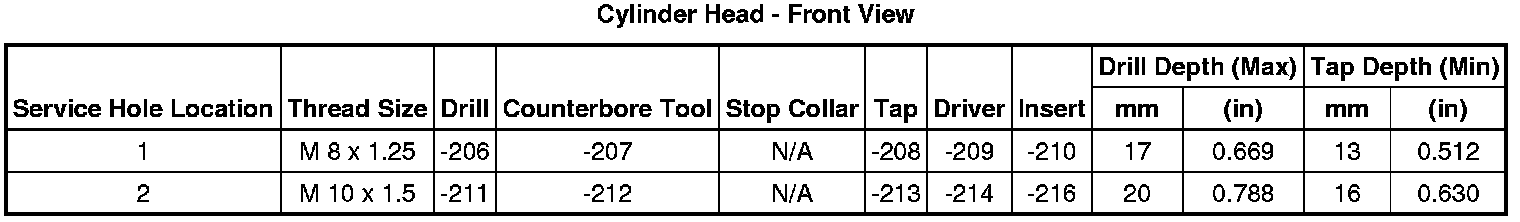

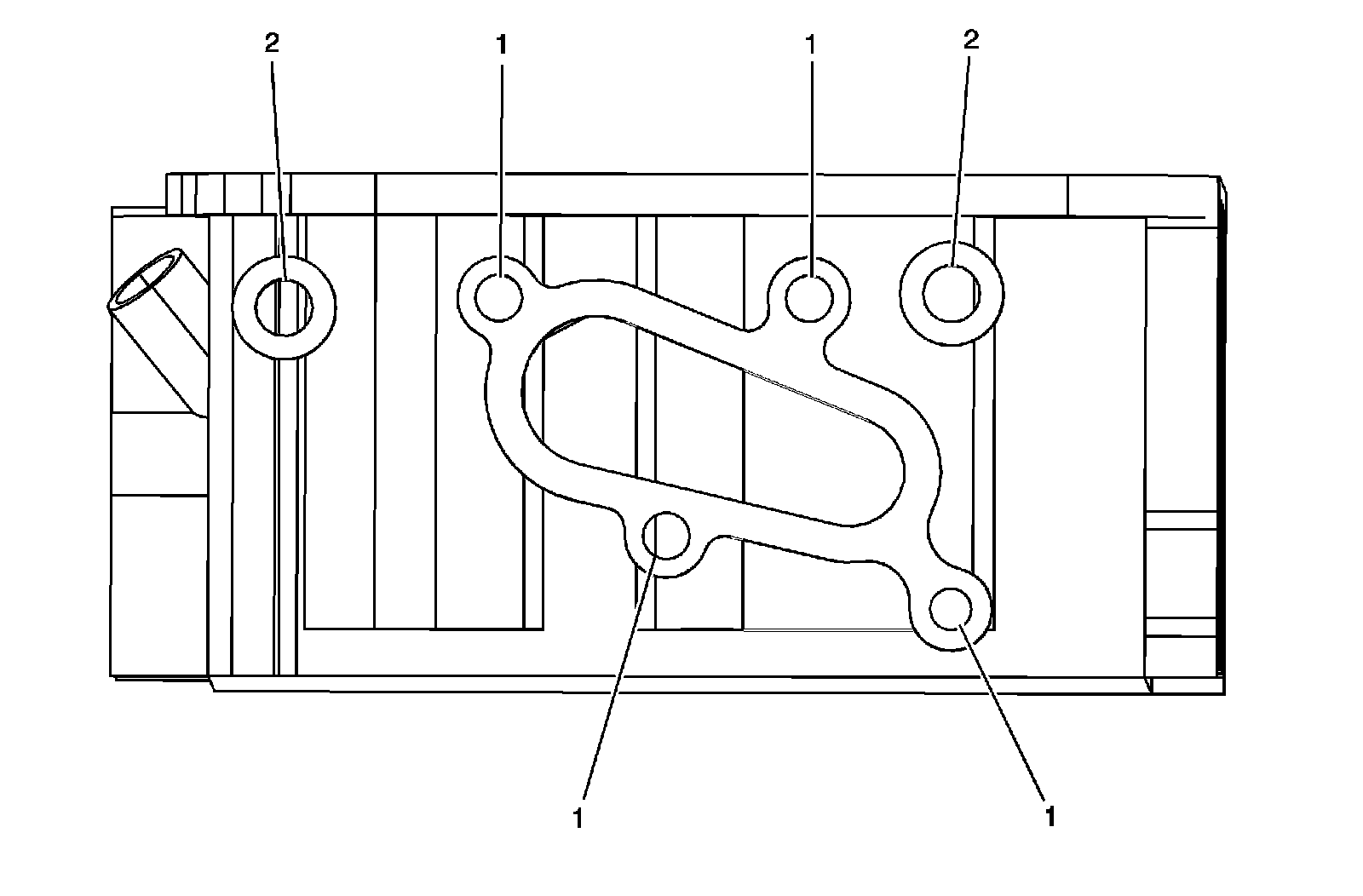

Cylinder Head - Front View
Thread Repair Specifications
Cylinder Head - Exhaust View
Cylinder Head - Intake View
Cylinder Head - Top View
Cylinder Head - Rear View
Cylinder Head - Front View
