Coolant Temperature Sensor/Switch (For Computer): Locations

Powertrain Component Views

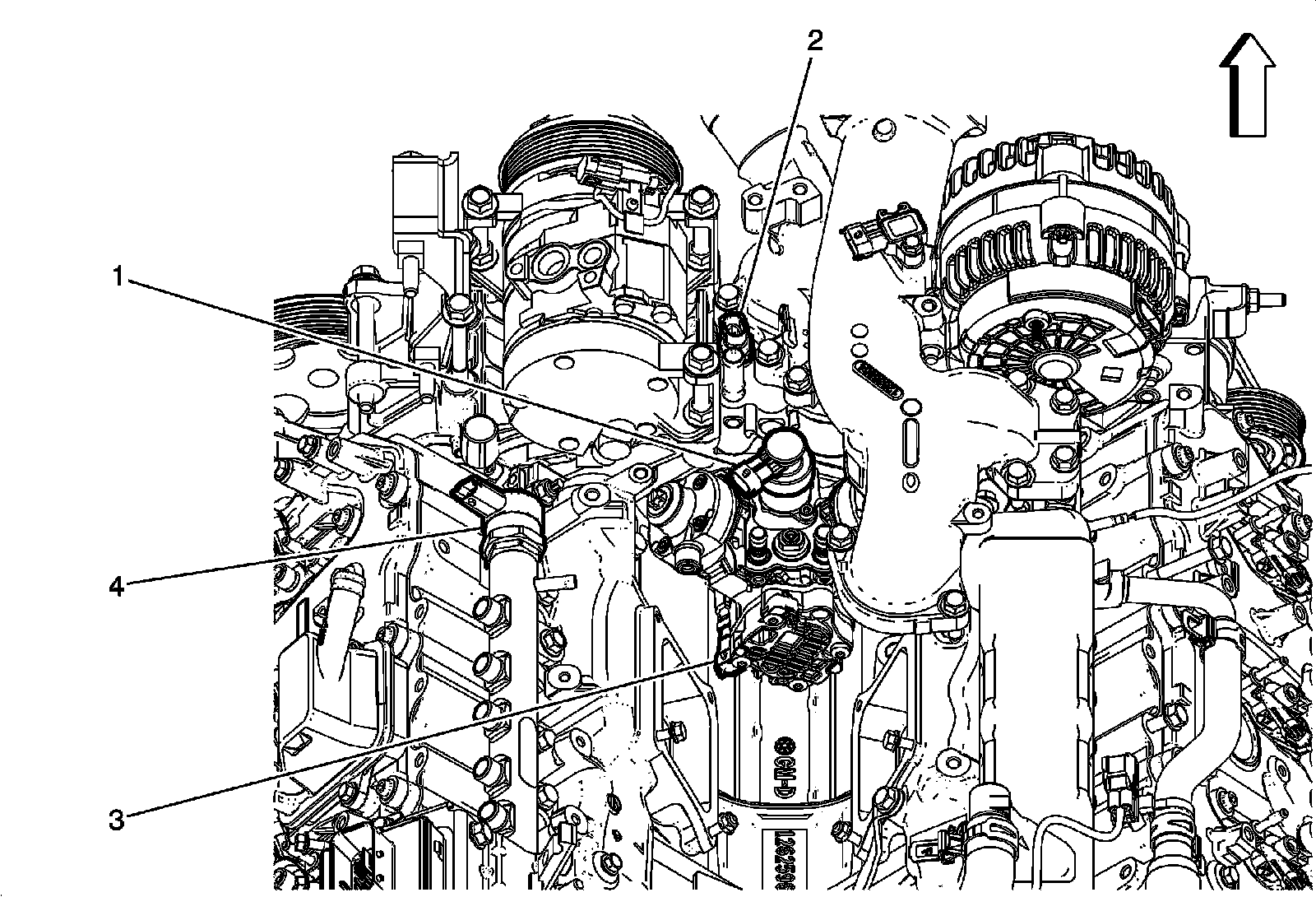

Top of the Engine Components (LGH)




1 - Fuel Pressure Regulator 1
2 - Engine Coolant Temperature (ECT) Sensor
3 - Fuel Temperature Sensor 1
4 - Fuel Pressure Regulator 2
