Glow Plug Control Module
Glow Plug Control Module
Component Connector End Views

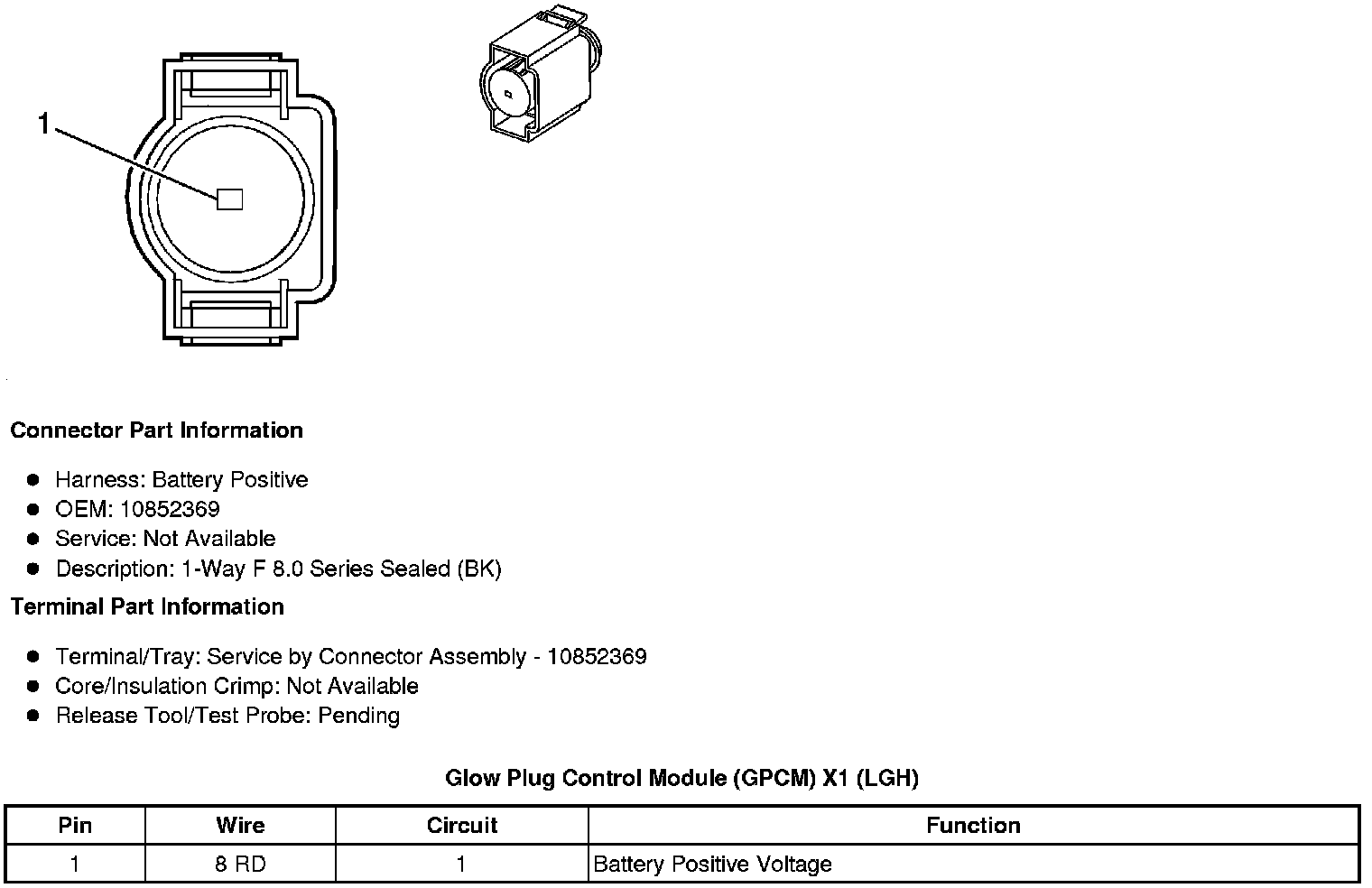

Glow Plug Control Module
(GPCM) X1 (LGH)

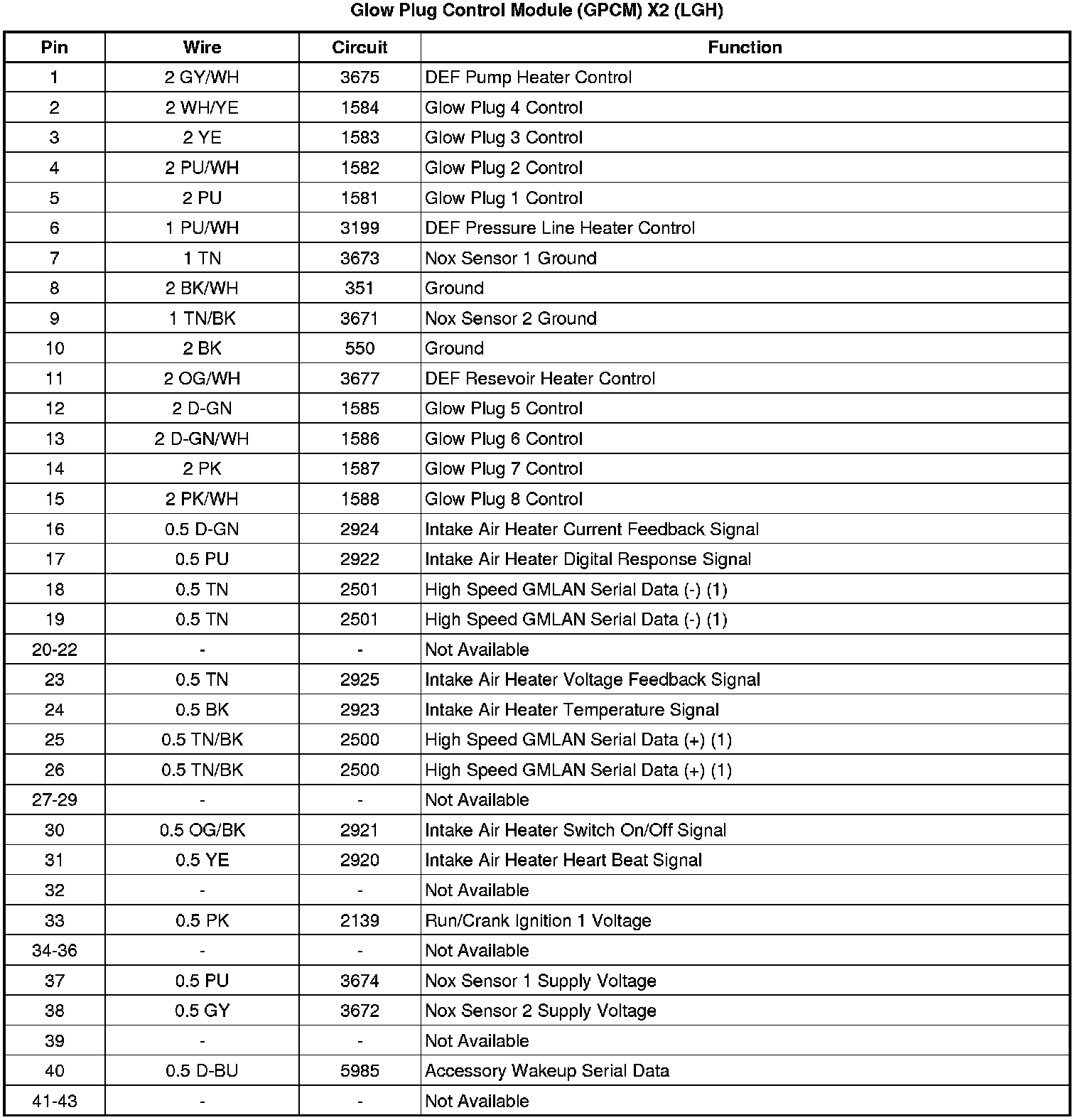

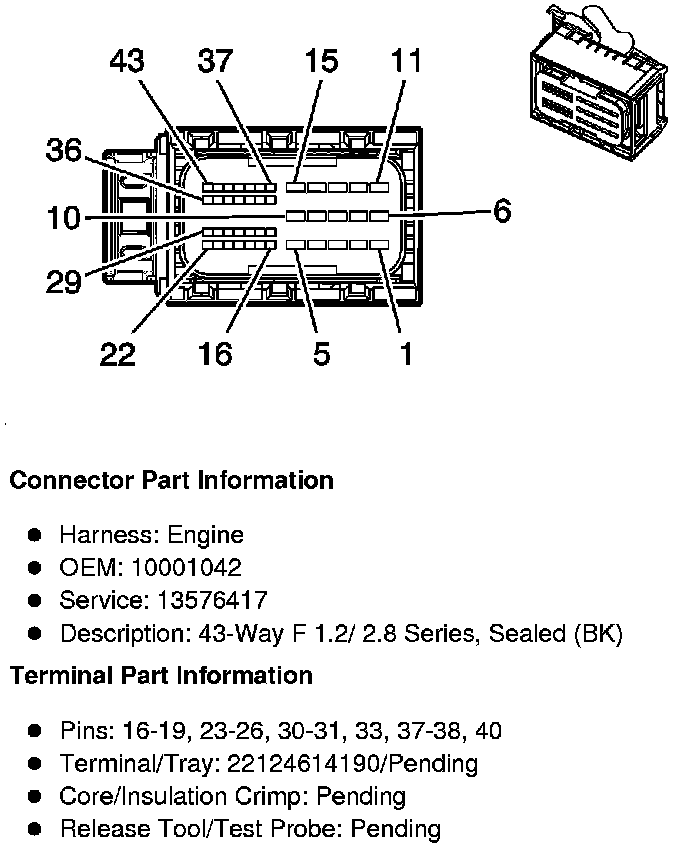

Glow Plug Control Module
(GPCM) X2 (LGH)
