Crankshaft Position Sensor: Locations

Powertrain Component Views

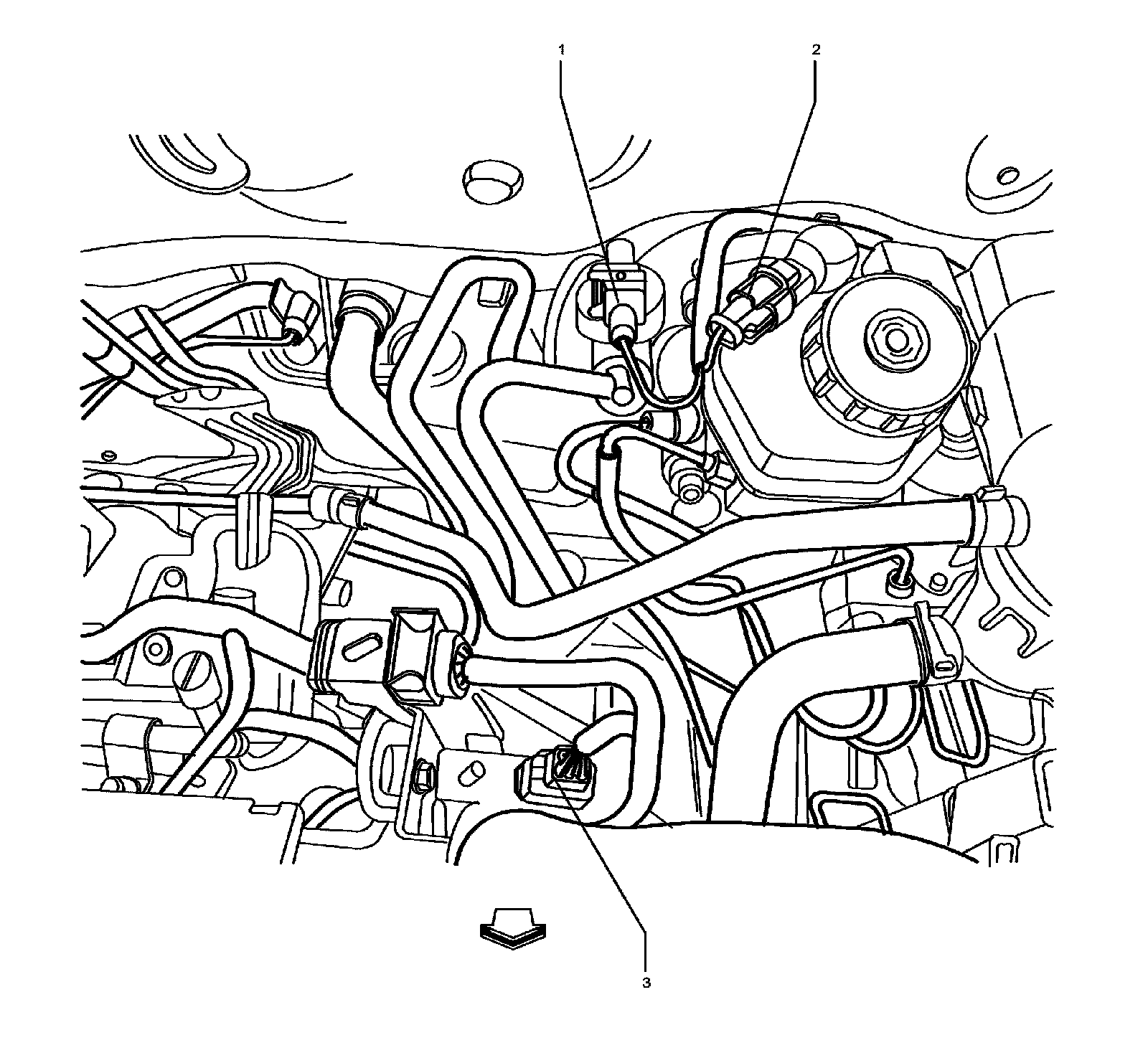

Upper Rear of the Engine Components (LUW) 1 of 2




1 - B19C Brake Booster Vacuum Switch
2 - B20 Brake Fluid Level Switch
3 - B26 Crankshaft Position Sensor
