Coolant Temperature Sensor/Switch (For Computer): Diagrams

Component Connector End Views

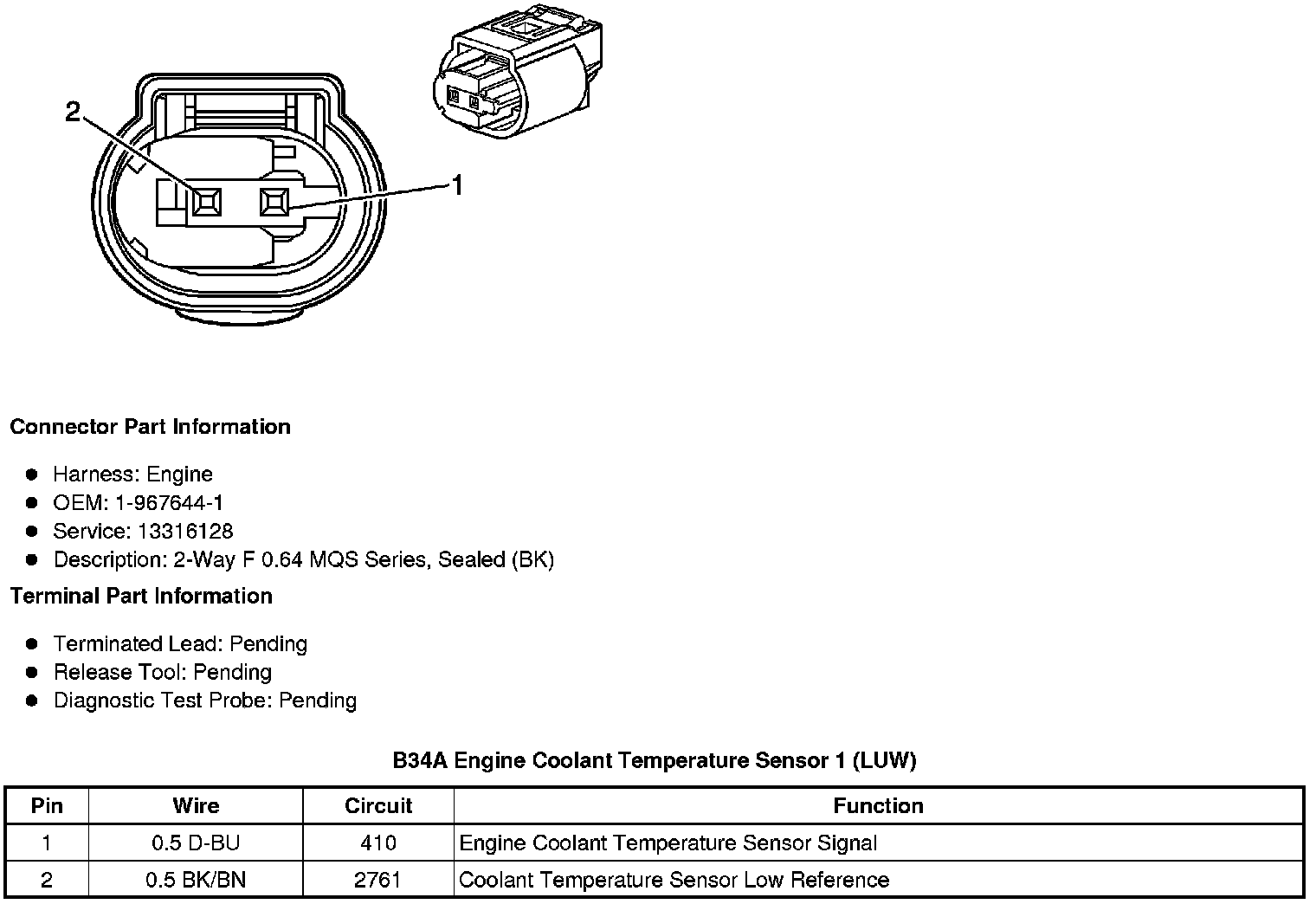

B34A Engine Coolant Temperature Sensor 1 (LUW)

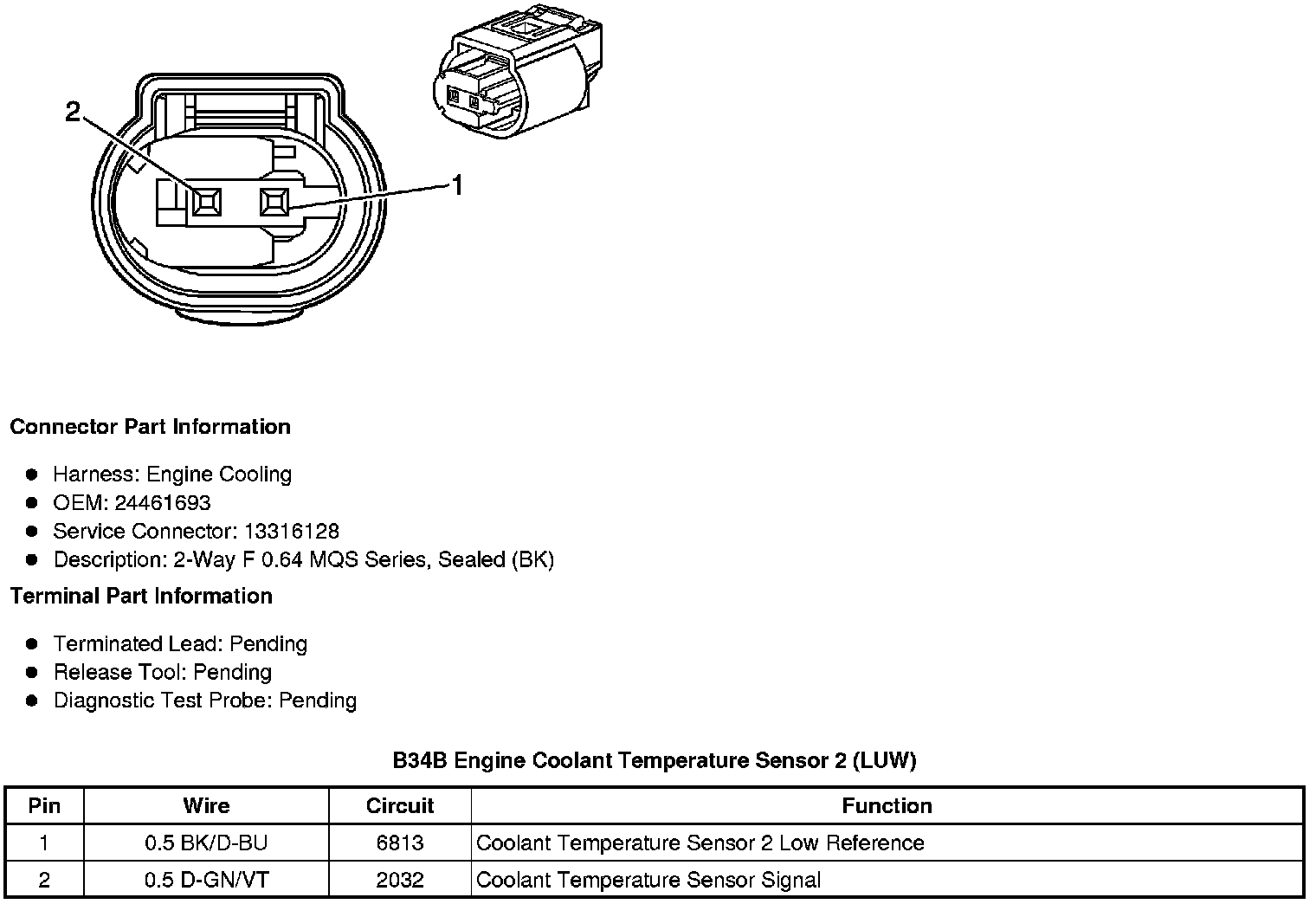

B34B Engine Coolant Temperature Sensor 2 (LUW)
