Accelerator Pedal Position Sensor: Diagrams

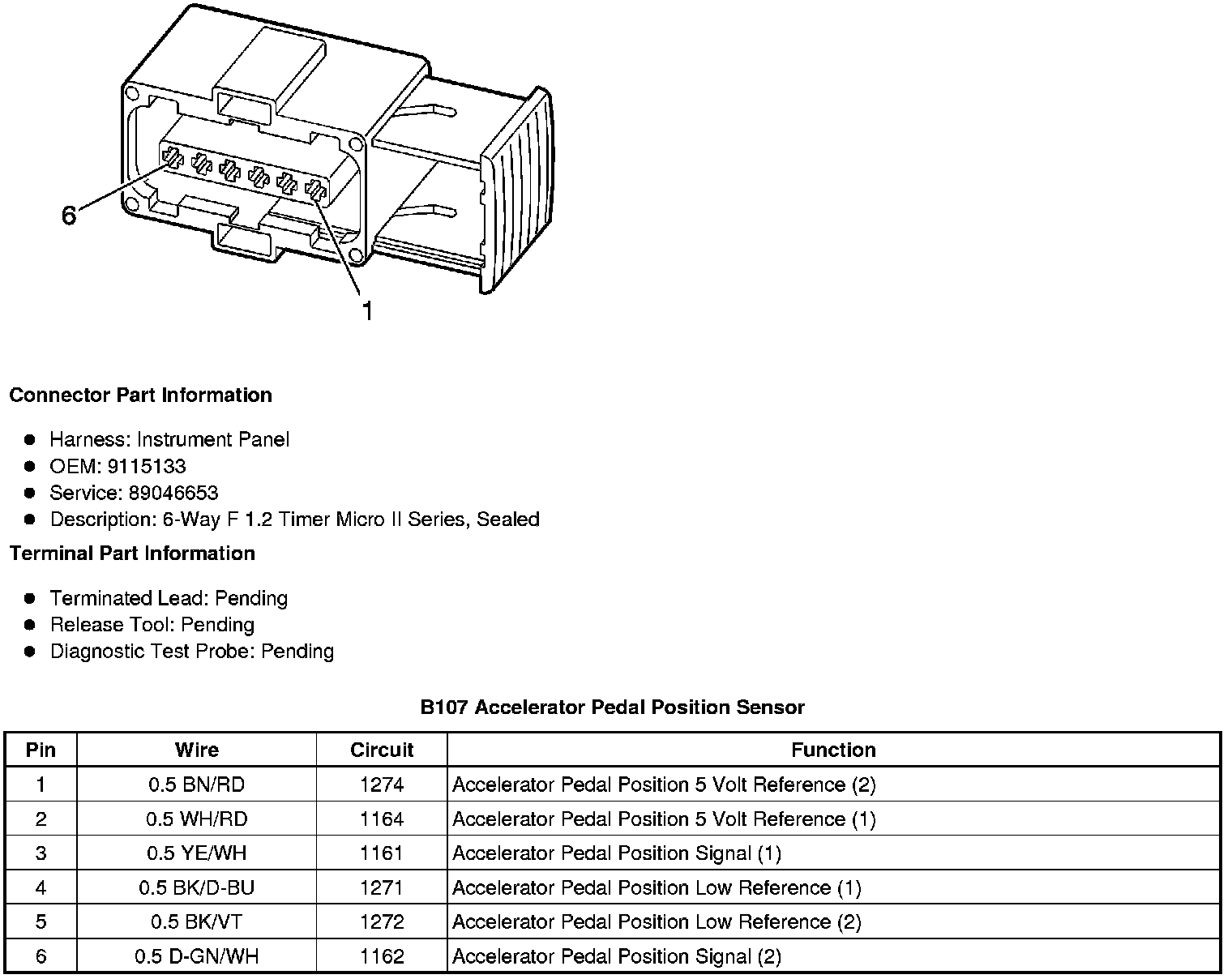

Component Connector End Views

B107 Accelerator Pedal Position Sensor
