Oil Level Sensor
Oil Level Sensor

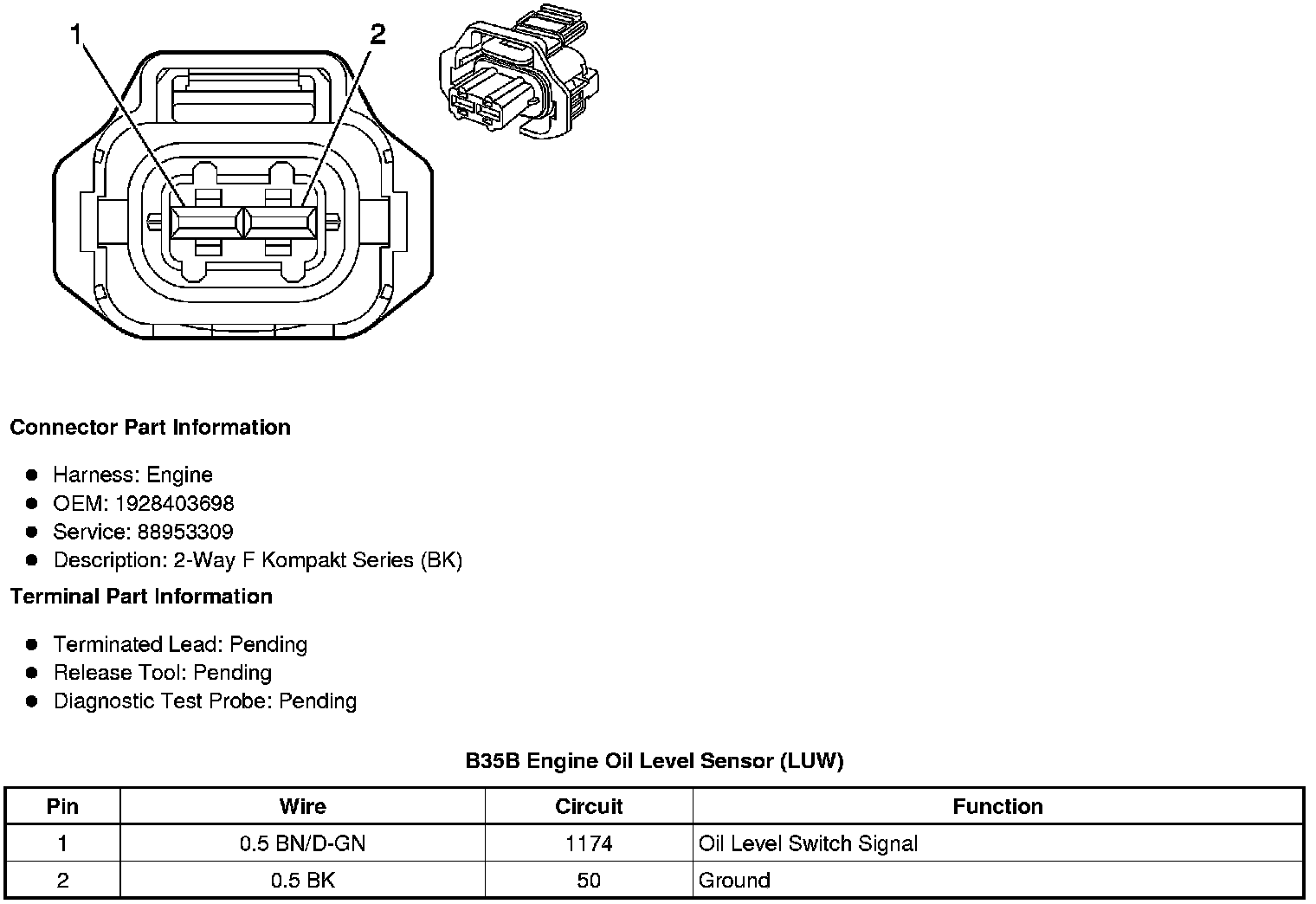

Component Connector End Views
B35B Engine Oil Level Sensor (LUW) (1.8L)
