Home >> Chevrolet >> 2011 >> Cruze L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module




Component Connector End Views

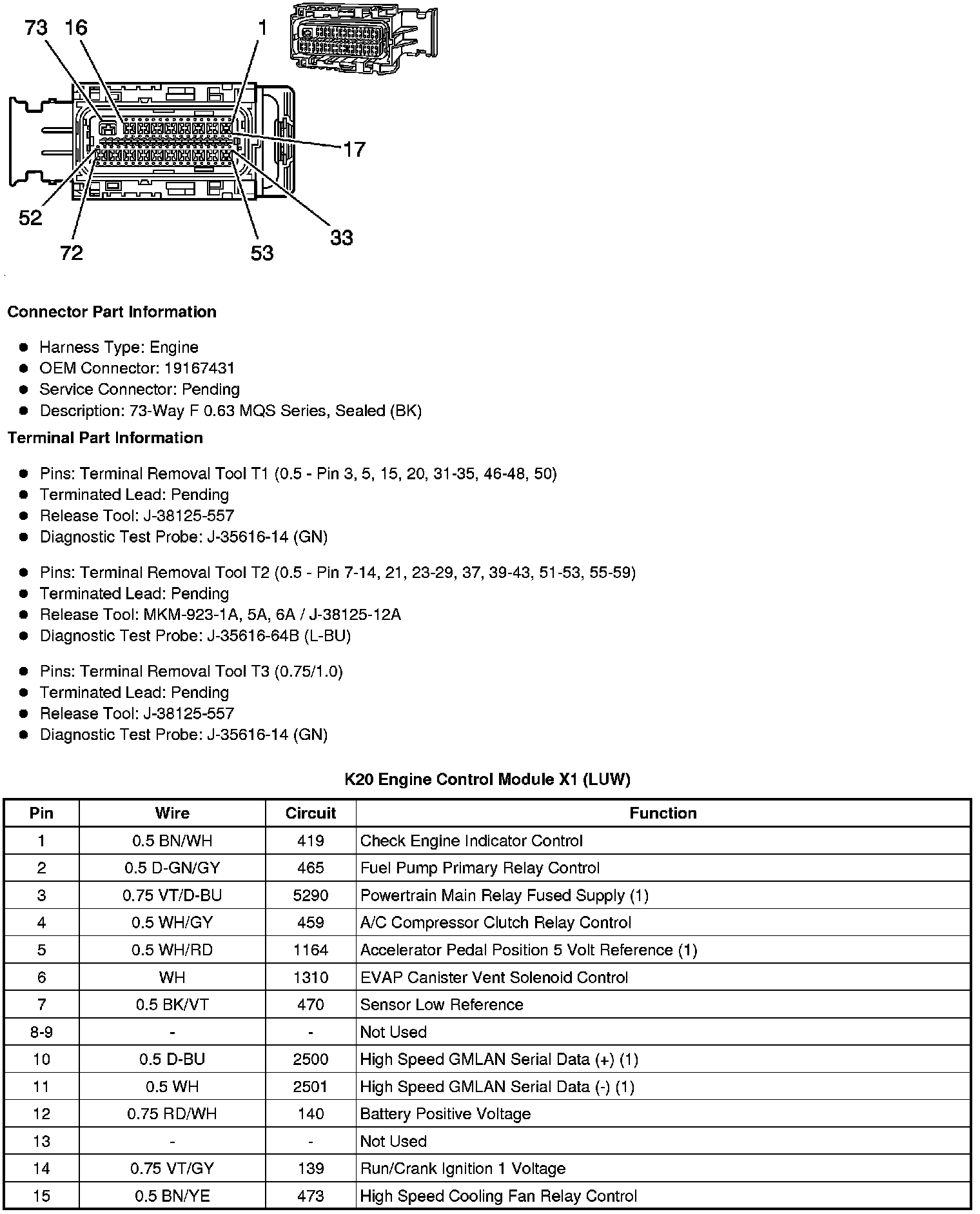

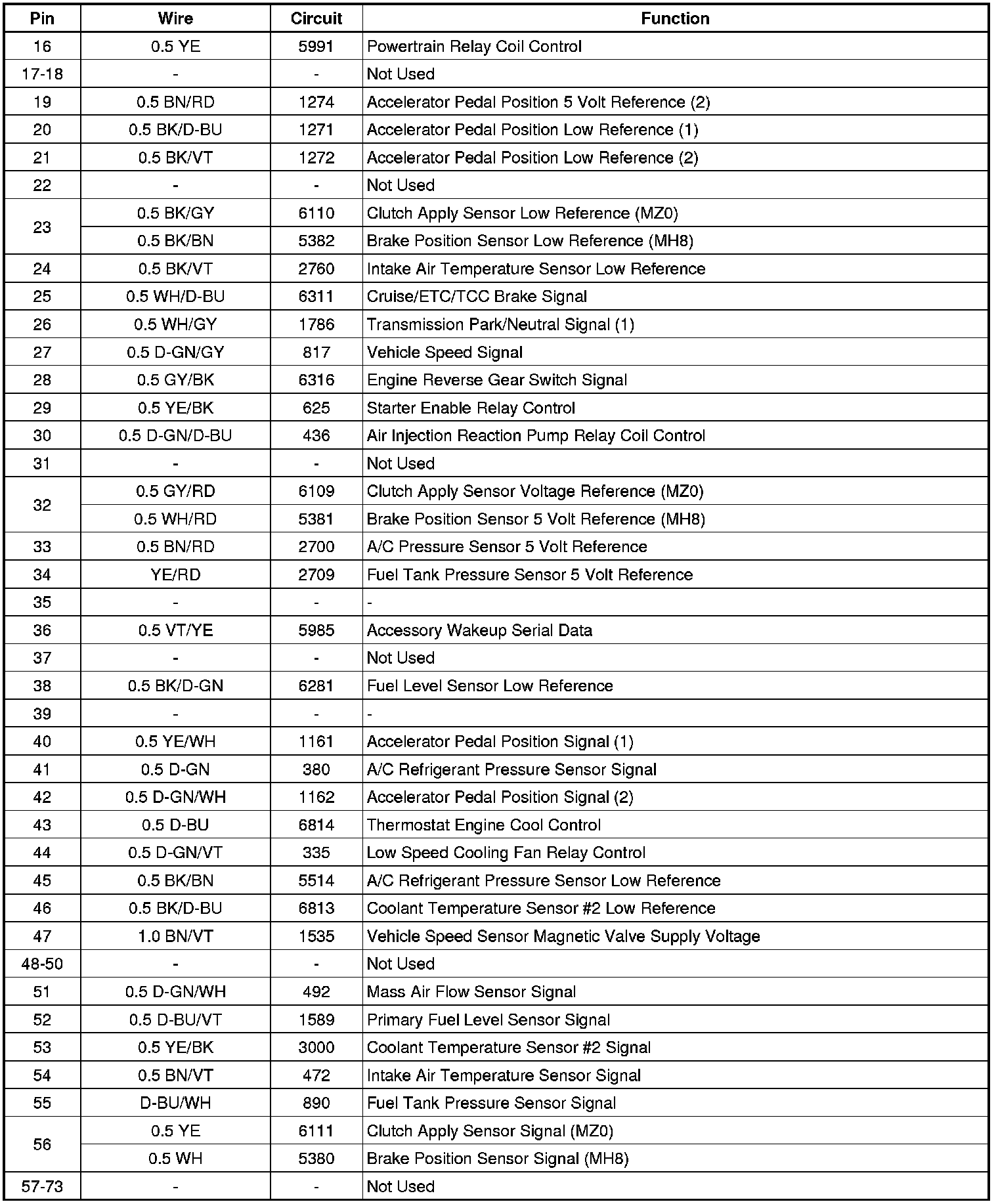

K20 Engine Control Module X1 (LUW)

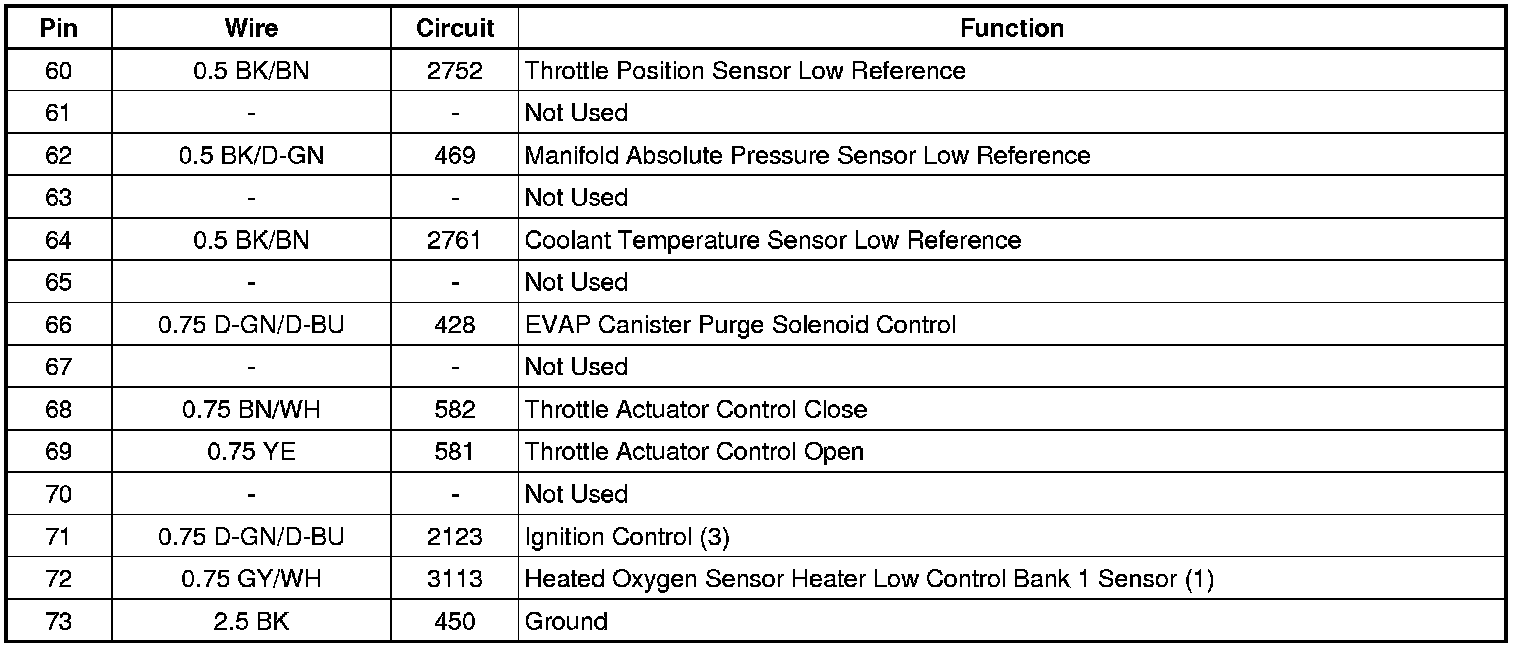

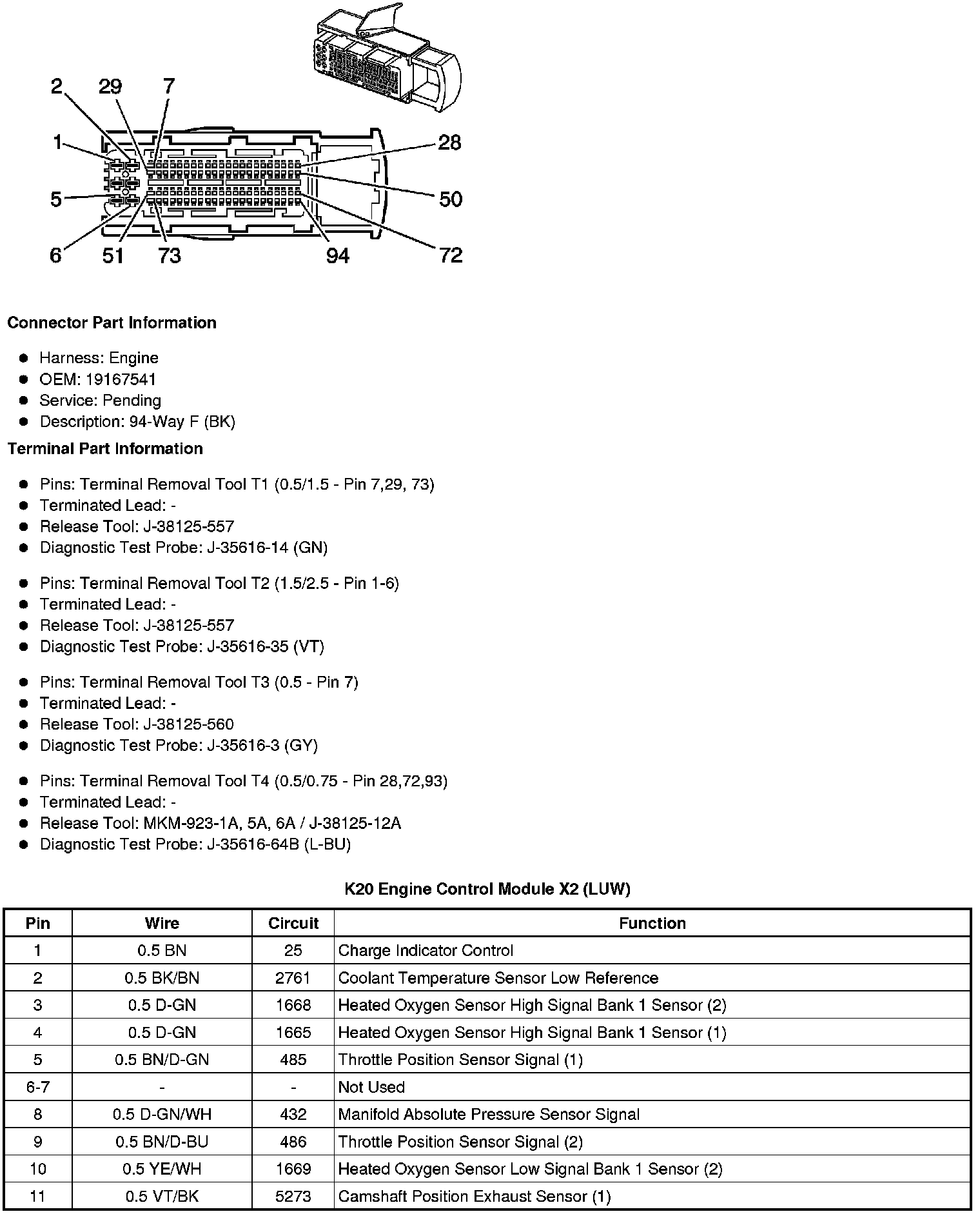

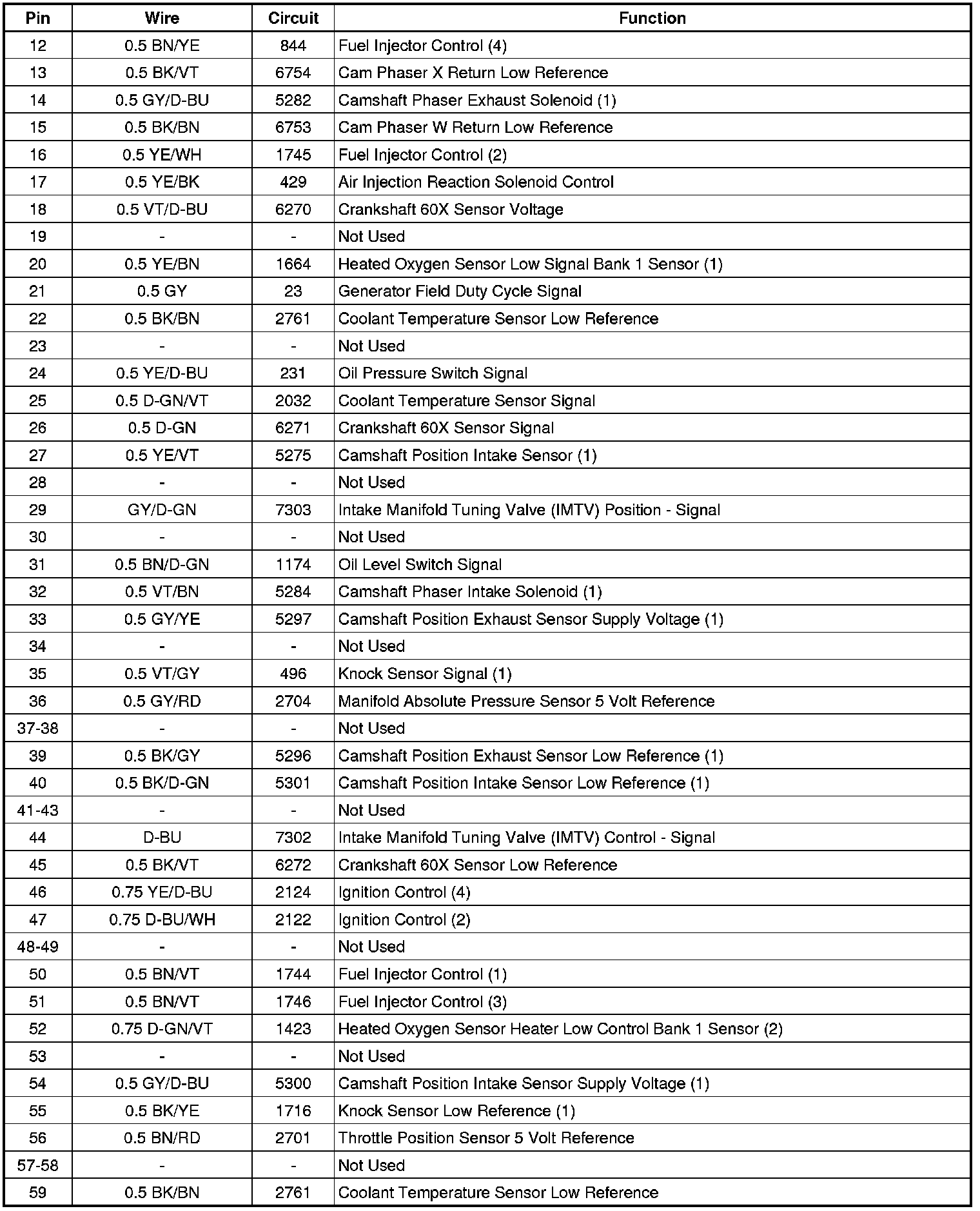

K20 Engine Control Module X2 (LUW)
