Control Module HVAC
Control Module HVAC
Component Connector End Views

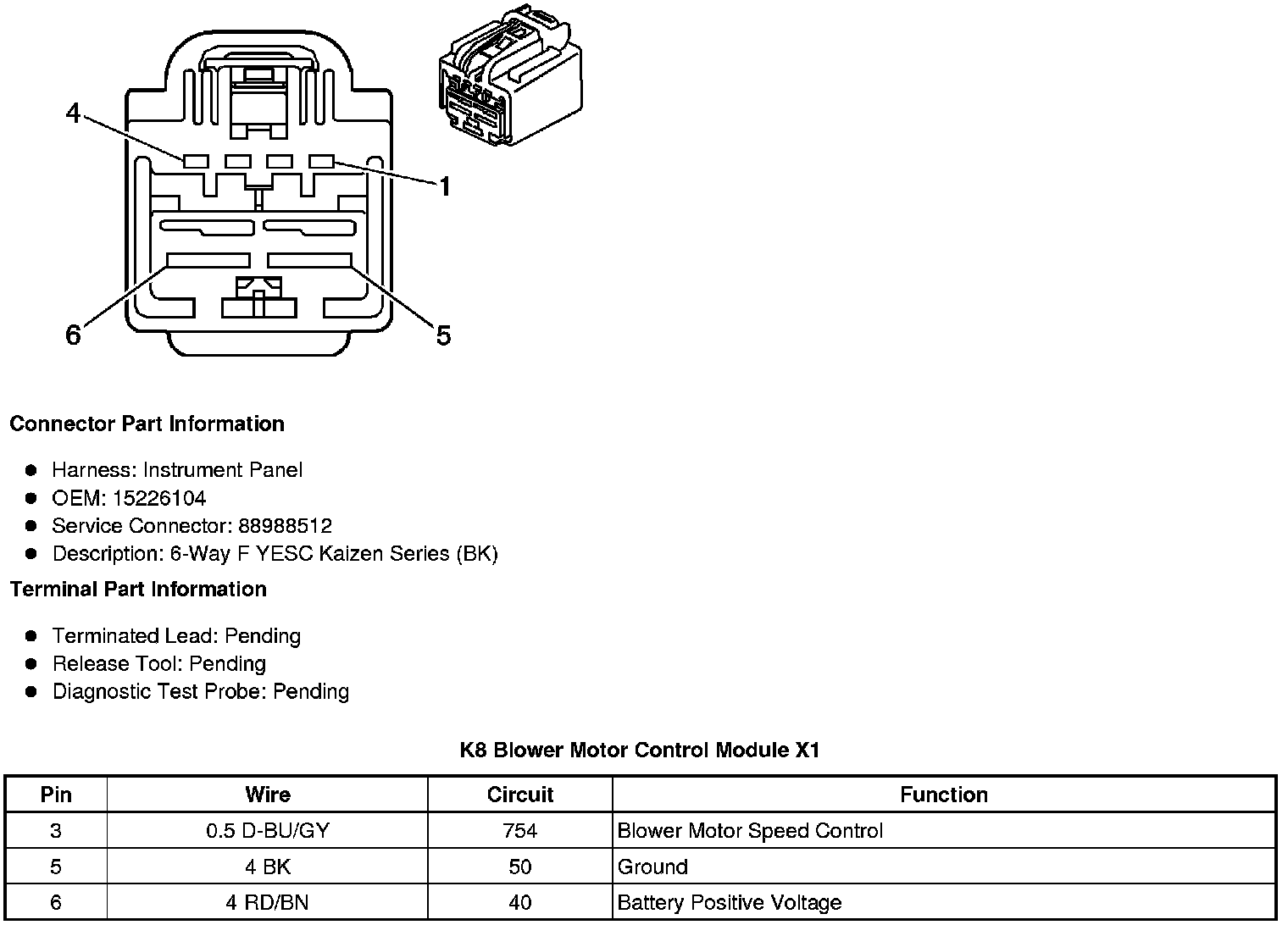

K8 Blower Motor Control Module X1

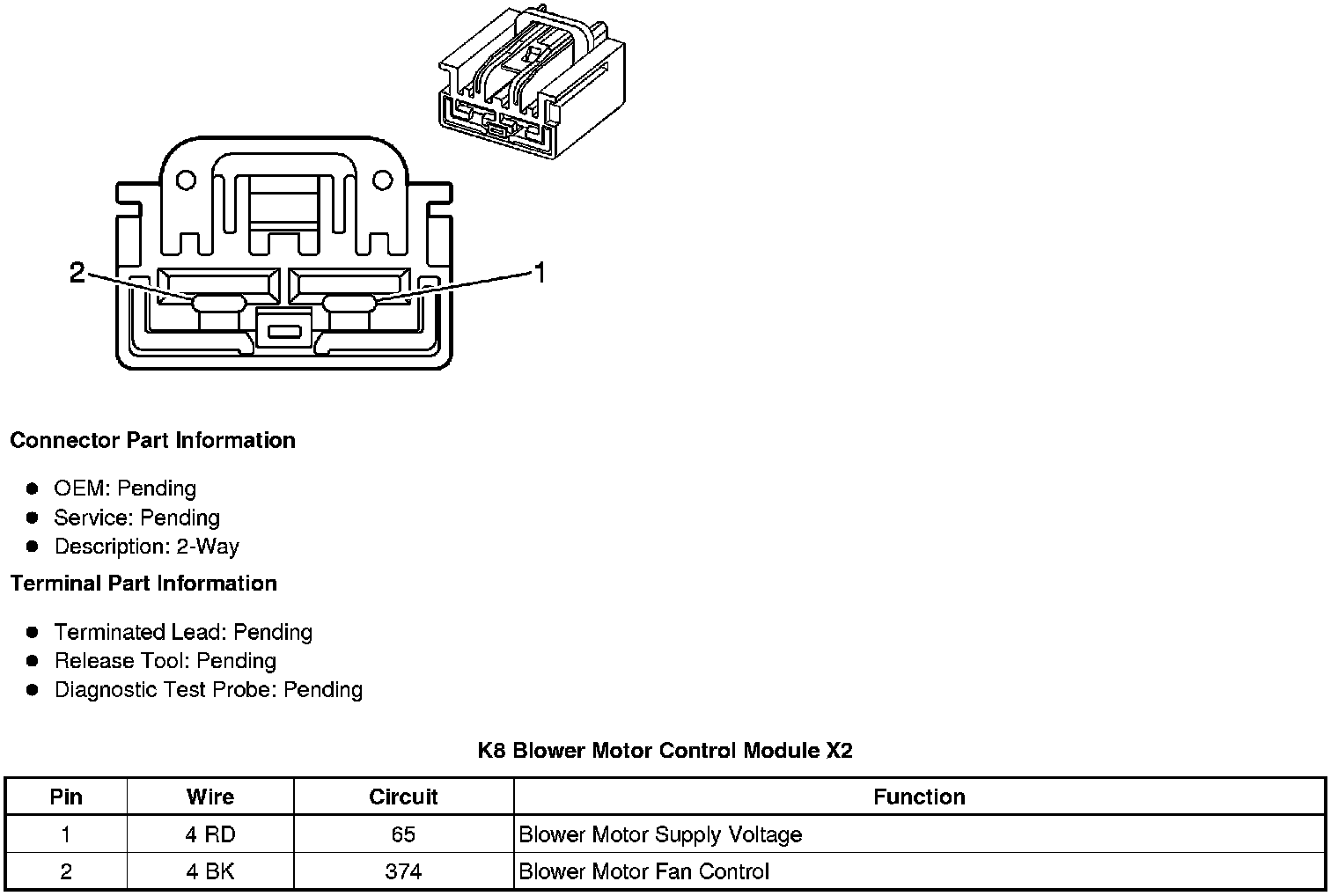

K8 Blower Motor Control Module X2
