Air Bag Control Module
Air Bag Control Module
Component Connector End Views

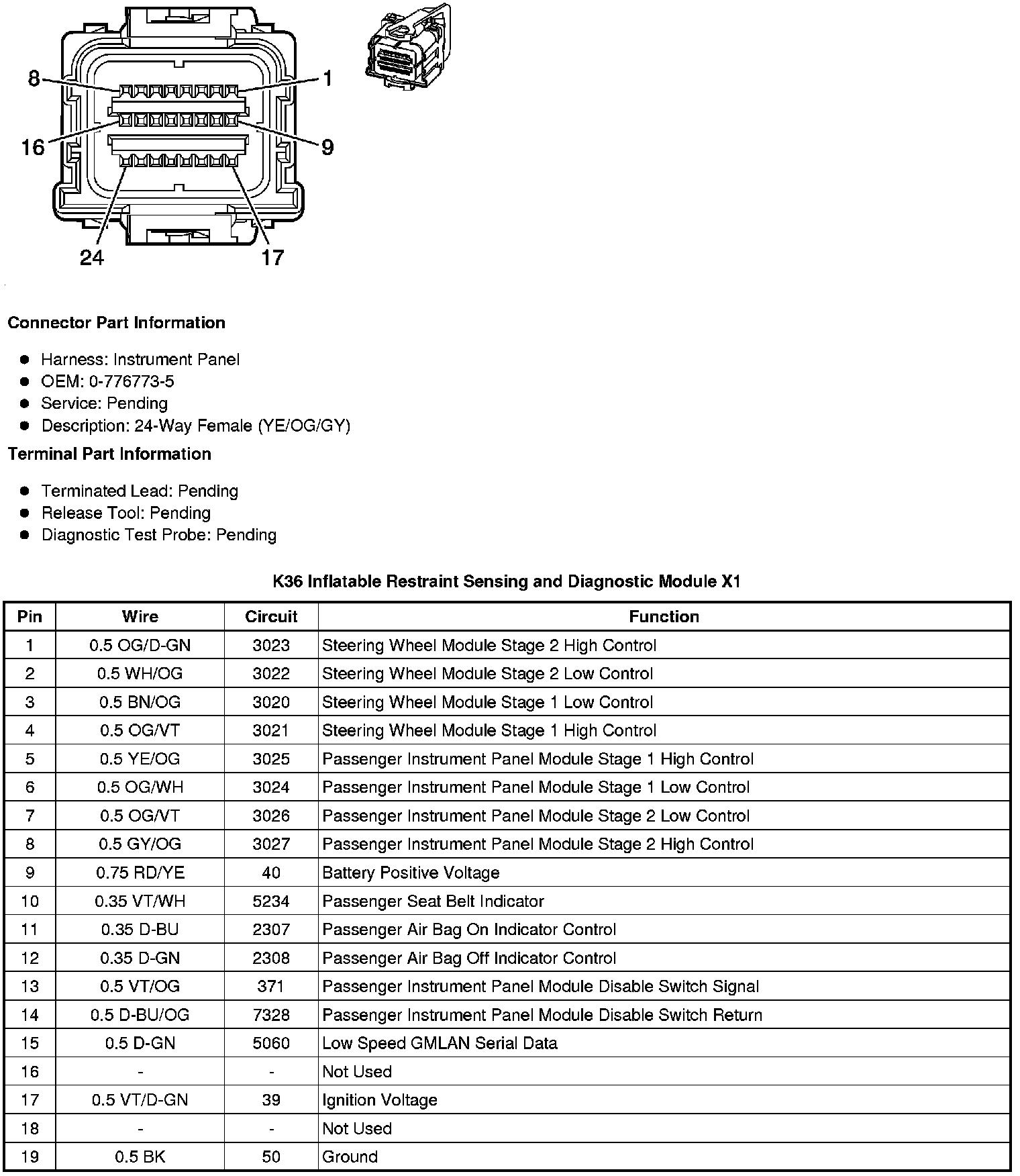

K36 Inflatable Restraint Sensing and Diagnostic Module X1
